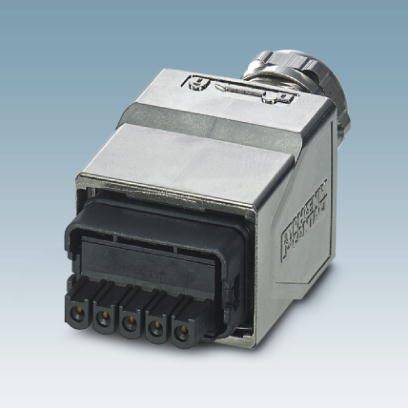

Power connector 1421785 CUC-PPC-C2ZNI-SS/24FKP5 Phoenix Contact Content: 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Power connector
Connector type
straight
AWG
13
Connection
Jack connector
Datasheet (PDF)
Technical specifications
- Ambient temperature (operation): -40 °C ... 85 °C
- Pollution level 3
- Rated voltage (II/2) 630 V.
- Rated surge voltage (II/2) 4 kV
- Rated current 16 A
- Flammability class according to UL 94: V0
- Material contact surface: Gold over nickel
- Packaging type
Piece
- Product type
Power connector
- Connector type
straight
13
- Connection
Jack connector
- Connector cross section
2.5 mm²
- Rated voltage
24 V
- Test current
16 A
- Case material
Diecast zinc
- Total no. of pins
5
- Manufacturer part #
1421785
- Content
1 pc(s)
- Contact material
Copper alloy
- Number of pins
5
- RoHS-compliant
Yes
IP65/67
- Type
CUC-PPC-C2ZNI-SS/24FKP5
- Seal
Push-pull
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2137613 Power connector 1421785 CUC-PPC-C2ZNI-SS/24FKP5 Phoenix Contact Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2137613 Power connector 1421785 CUC-PPC-C2ZNI-SS/24FKP5 Phoenix Contact Content: 1 pc(s)
Description

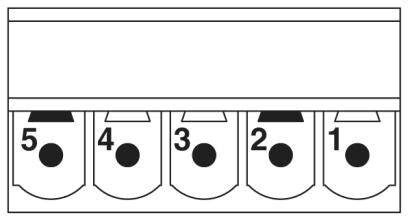

Power plug connector, protection class IP65/IP67, number of poles: 5, material: Die-cast zinc, connection cross-section: AWG 18-13, cable outlet: Straight
