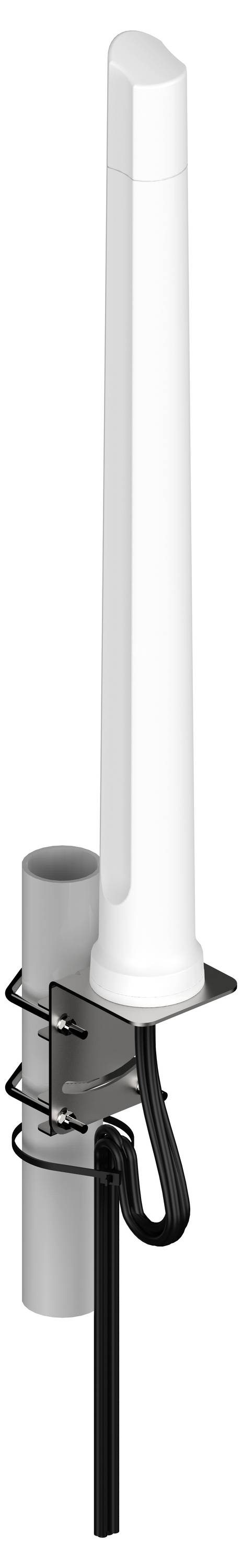

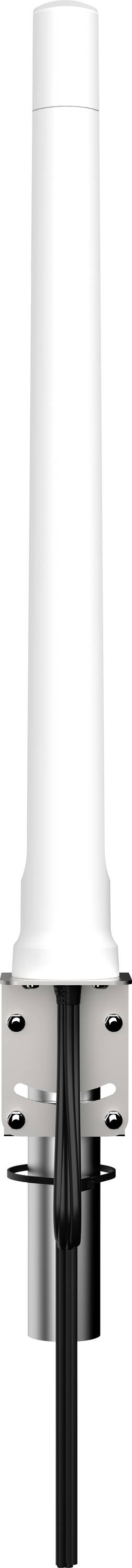

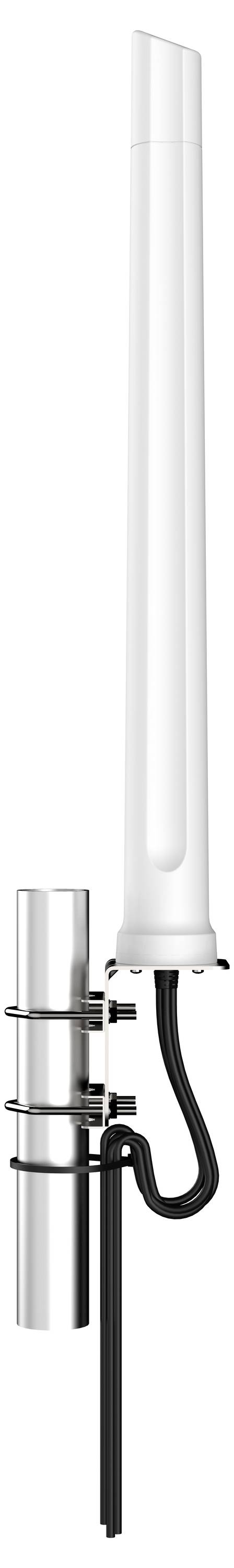

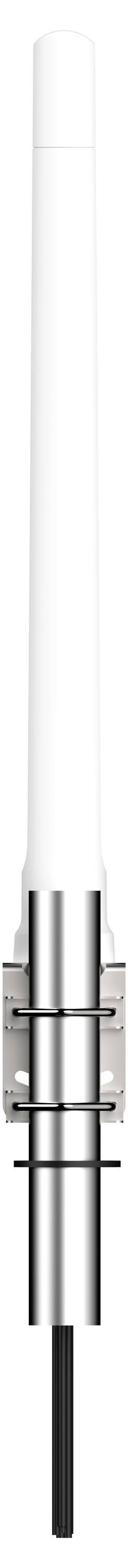

Poynting OMNI-214 A-OMNI-0214-V1-01 LTE antenna 3.5 dBi
EAN:
Part number:
Item no:
Highlights & Details
Poynting A-OMNI-0214-V1-01 Network-Antenna Omni-directional Antenna SMA 3.5 dBi
- Ultra-wide band, omni-directional antenna
- 4x4 MIMO-capability for improved performance
- Covers current LTE/5G bands from 617 to 3800 MHz
- Robust, dust and weather resistant housing design (IP65)
Technical specifications
- 0,617 - 3.8 GHz
- WLAN standards 802.11g
- Cable type HDF-195
- Product type
LTE antenna
- Gain
3.5 dBi
- Type
Monopole antenna
- Antenna socket
SMA plug
- Weight
795 g
- Polarisation
Linear
Vertical
- Height
646 mm
- Cable length
2 m
- Factory colour
White
- (Ø)
7.1 cm
- Impedance
50 Ω
IP65
- Material (details)
Acrylonitrile Styrene (ASA)
- UKCA
yes
- Operating temperature (T-T)
-40 - 80 °C
- Storage relative humidity (H-H)
5 - 95 %
- Quantity per pack
1 Stück(e)
- Survival wind speed
160 km/h
- Mounting pipe
30 - 50 mm
- Operating relative humidity (H-H)
0 - 98 %
- Waterproof
yes
- Storage temperature (T-T)
-40 - 80 °C
- Package weight
1.58 kg
Documents & Downloads
Datasheet
Datasheet 3790026 Poynting OMNI-214 A-OMNI-0214-V1-01 LTE antenna 3.5 dBi
User & Safety Instructions
User & Safety Instructions 3790026 Poynting OMNI-214 A-OMNI-0214-V1-01 LTE antenna 3.5 dBi
Description
Omnidirectional 4x4 MIMO 5G/LTE antenna
Ultrawide band 4x4 MIMO omnidirectional antenna
The OMNI-214 is a powerful ultra-wide band antenna that covers all current LTE and 5G frequency bands from 617 to 3800 MHz. Thanks to the 4×4 MIMO capability, which is achieved by vertically separated radiation elements in a single radom, this antenna ensures an excellent directional characteristic over the entire frequency range. Designed for urban and commercial applications, OMNI-214 provides reliable signal reception worldwide and is future-proof for new network technologies.
Ultra-wide frequency coverage: Supports 617 to 3800 MHz and covers all LTE and 5G bands.
4×4 MIMO capability: Uses vertically separated radiation elements to improve network performance and data throughput.
Superior pattern control: Ensures stable omni-directional signal distribution for end-to-end connectivity.
Future-proof design: Covers LTE band 71 (617 to 698 MHz) and CBRS bands (3400 to 3800 MHz) for domestic and commercial use.
Reliable global connectivity: Guarantees strong signal reception in urban, industrial and commercial environments.
Protection class IP65: Resistant to dust and water ingress and therefore Ideal for outdoor installation in urban areas.
The OMNI-214 is a future-proof, high-performance antenna that provides robust LTE and 5G connectivity for urban and commercial applications that require stable high-speed data transmission.
