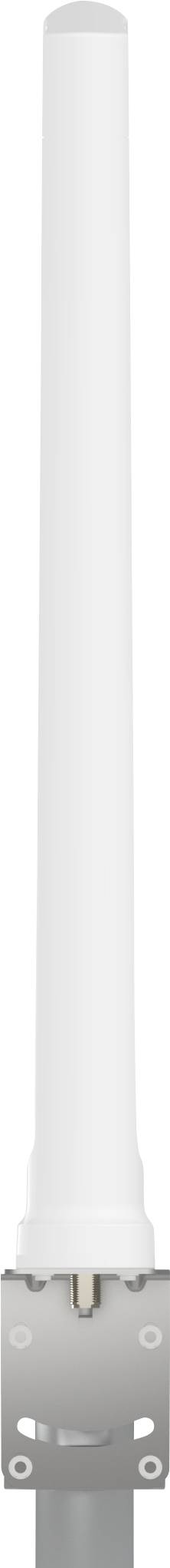

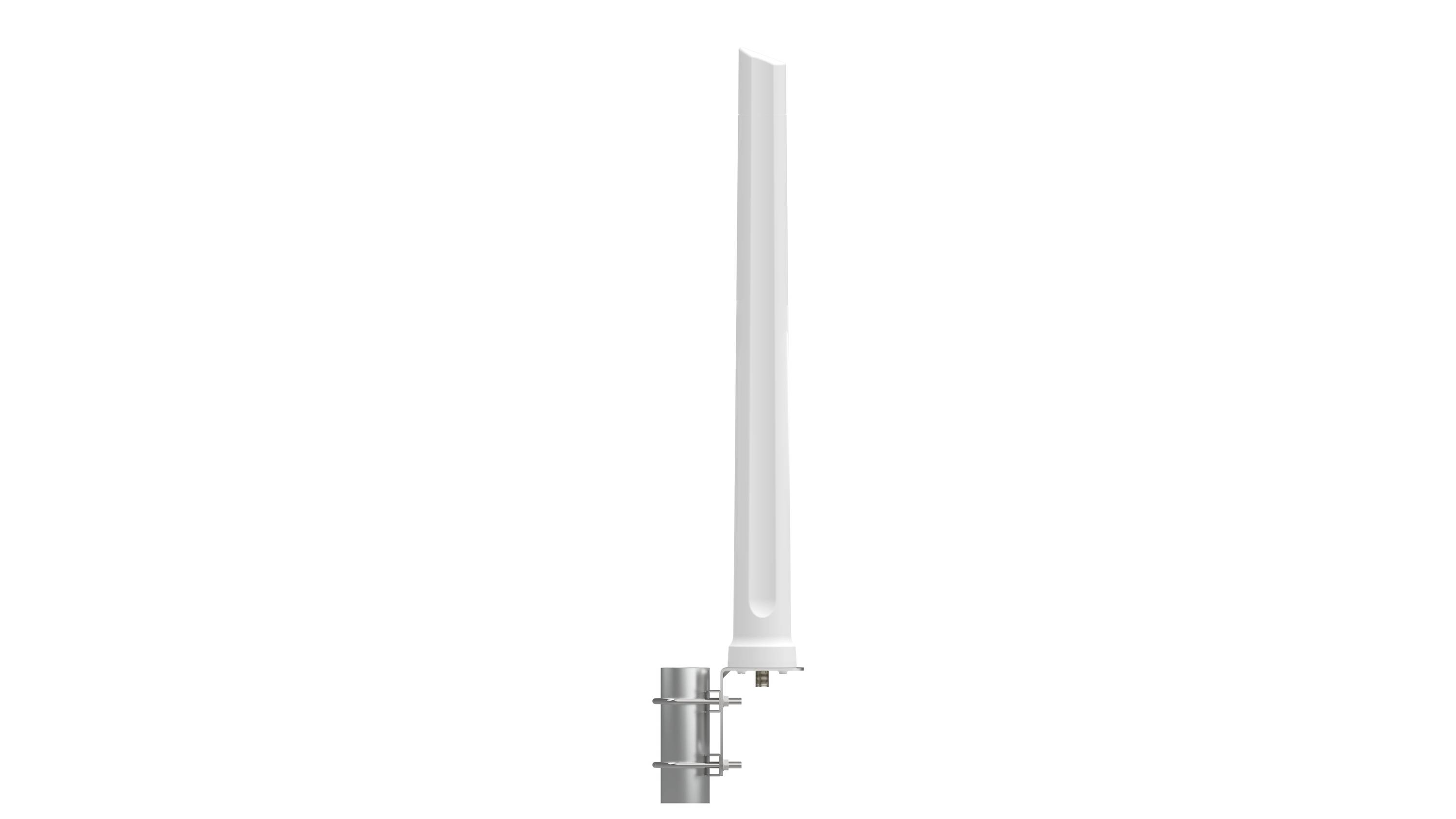

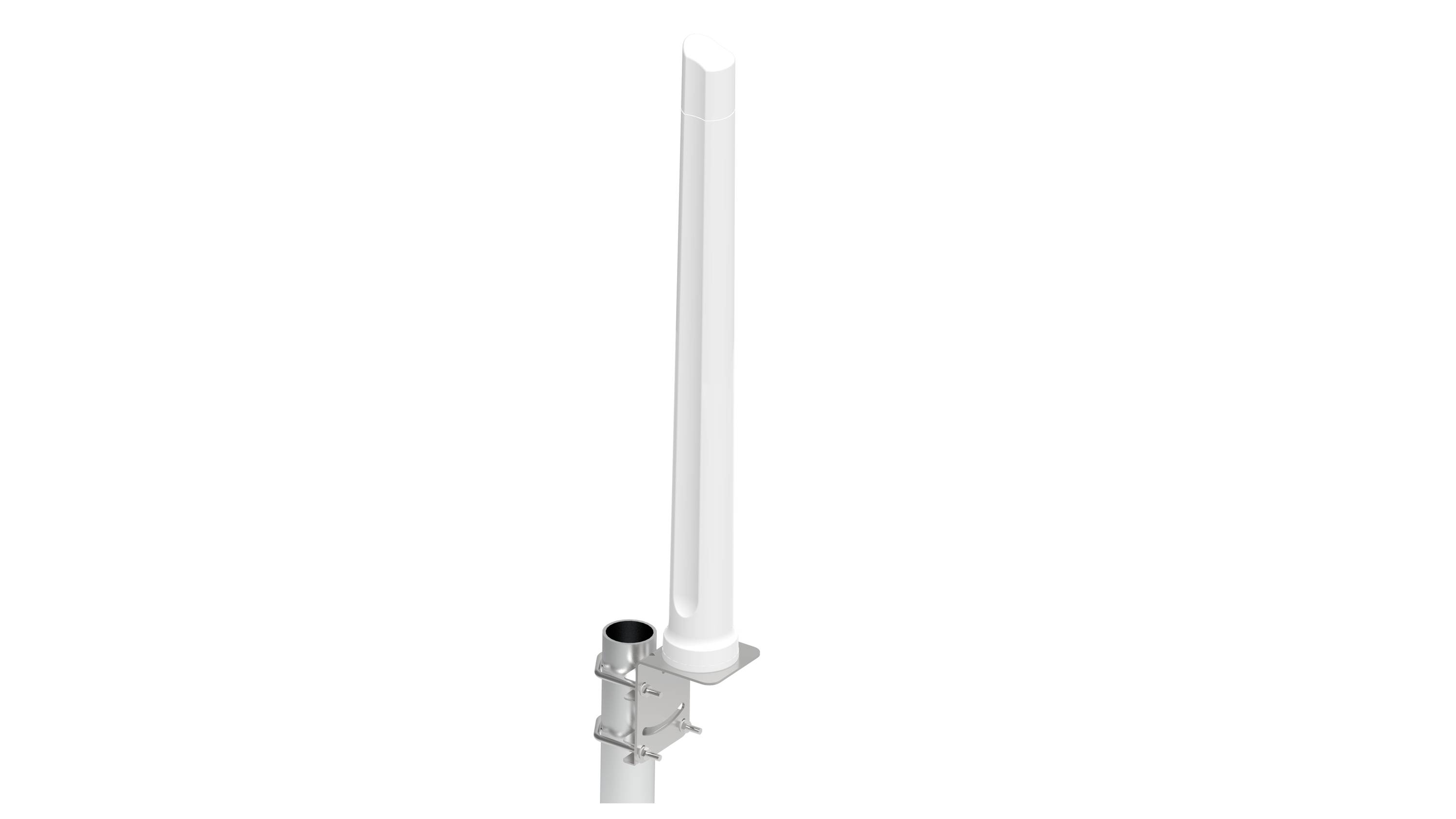

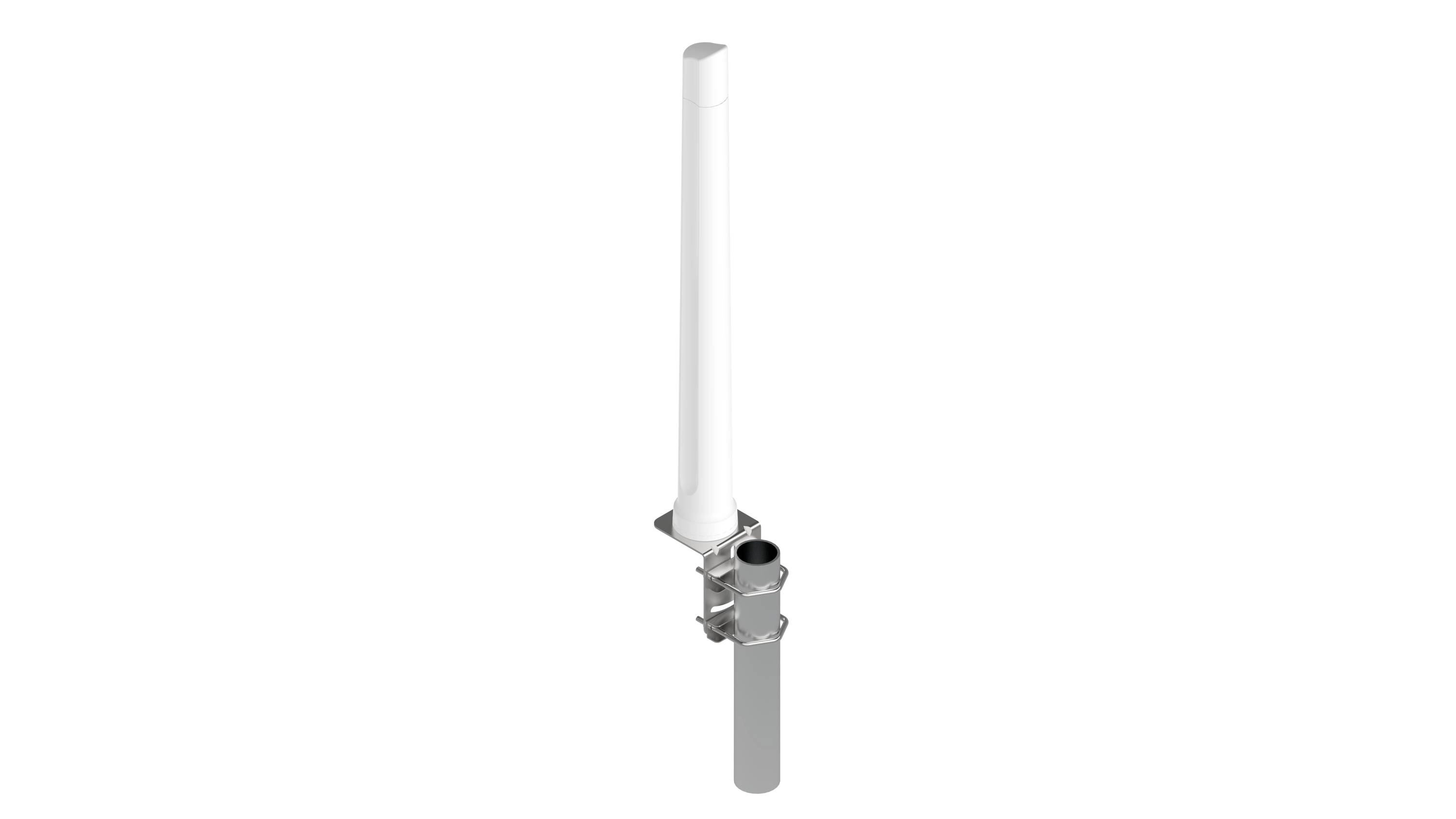

Poynting OMNI-293 A-OMNI-0293-V1-01 LTE antenna 8 dBi
EAN:
Part number:
Item no:
Highlights & Details
Poynting OMNI-0293 network antenna Omni-directional antenna N-type 8 dBi
- Omnidirectional antenna with Hohem gain
- Includes Band 71 (617 to 698 MHz) and 3.5 GHz 5G bands
- Broadband operation makes the antenna future-proof
- The antenna was developed especially for urban and rural applications
- Dust and water resistant casing with protection type IP65
Technical specifications
- 0.617-6 GHz frequency band
- WLAN standards: 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
- Product type
LTE antenna
- Gain
8 dBi
- Type
Monopole antenna
- Antenna socket
N socket
- Weight
410 g
- Polarisation
Linear
Vertical
- Height
635 mm
- Factory colour
Grey
- (Ø)
7.1 cm
IP65
- UKCA
yes
- Operating temperature (T-T)
-40 - 80 °C
- Operating relative humidity (H-H)
5 - 95 %
- Package weight
1.14 kg
Documents & Downloads
Datasheet
Datasheet 3790022 Poynting OMNI-293 A-OMNI-0293-V1-01 LTE antenna 8 dBi
User & Safety Instructions
User & Safety Instructions 3790022 Poynting OMNI-293 A-OMNI-0293-V1-01 LTE antenna 8 dBi
Description
Omni-directional broadband 5G/LTE antenna
The OMNI-293 is an ultra-wide bandwidth, high-performance omnidirectional antenna that supports both current 4G/LTE and future 5G operating frequencies. This antenna covers a frequency range from 617 to 6000 MHz with a peak amplification of 8 dBi and ensures reliable signal reception in urban and rural environments. Its advanced design offers excellent pattern control, making it an ideal solution for stable and efficient connectivity.
Ultra-broadband frequency coverage: Supports 617 to 6000 MHz, ensuring compatibility with 4G, LTE, and 5G networks.
High-gain performance: With a peak gain of 8 dBi for improved signal strength and reception.
Optimized for use in urban and rural areas: Designed for reliable connectivity in a wide variety of environments.
Superior pattern control: Ensures stable and balanced signal distribution across the entire frequency range.
Future-proof technology: Covers the new band from 617 to 698 MHz and the range from 3400 to 6000 MHz for future 5G applications.
Long-lasting and versatile design: Fitted with an N-type socket connector for easy integration with user-defined cable lengths.
The OMNI-293 is a powerful omnidirectional antenna that provides broadband coverage and future-proof connectivity for LTE and 5G applications in a variety of applications.
This text is machine translated.
The OMNI-293 is an ultra-wide bandwidth, high-performance omnidirectional antenna that supports both current 4G/LTE and future 5G operating frequencies. This antenna covers a frequency range from 617 to 6000 MHz with a peak amplification of 8 dBi and ensures reliable signal reception in urban and rural environments. Its advanced design offers excellent pattern control, making it an ideal solution for stable and efficient connectivity.
Ultra-broadband frequency coverage: Supports 617 to 6000 MHz, ensuring compatibility with 4G, LTE, and 5G networks.
High-gain performance: With a peak gain of 8 dBi for improved signal strength and reception.
Optimized for use in urban and rural areas: Designed for reliable connectivity in a wide variety of environments.
Superior pattern control: Ensures stable and balanced signal distribution across the entire frequency range.
Future-proof technology: Covers the new band from 617 to 698 MHz and the range from 3400 to 6000 MHz for future 5G applications.
Long-lasting and versatile design: Fitted with an N-type socket connector for easy integration with user-defined cable lengths.
The OMNI-293 is a powerful omnidirectional antenna that provides broadband coverage and future-proof connectivity for LTE and 5G applications in a variety of applications.
This text is machine translated.
Hints
Ideal applications:
Improve the reliability and stability of the data link
Machine-to-Machine (M2M) and IoT applications
Industrial-quality high-end router applications
Areas with poor data signal reception
Improved 4G/LTE and 5G reception
