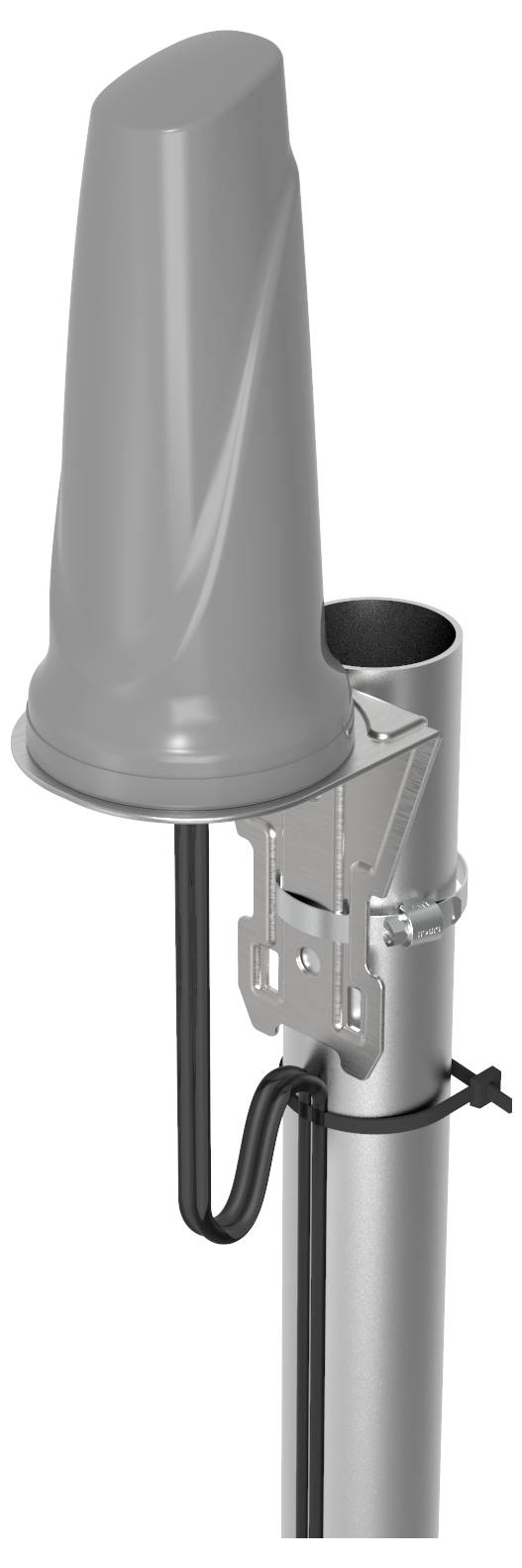

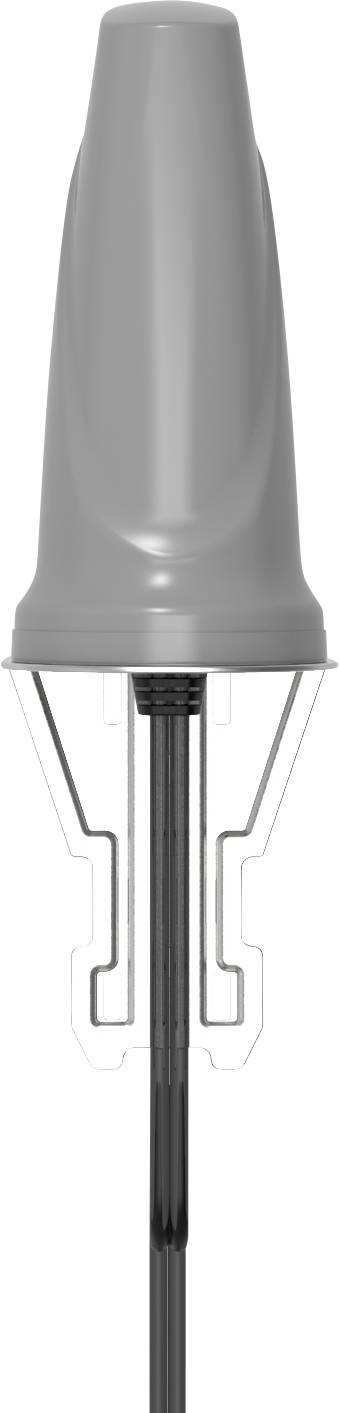

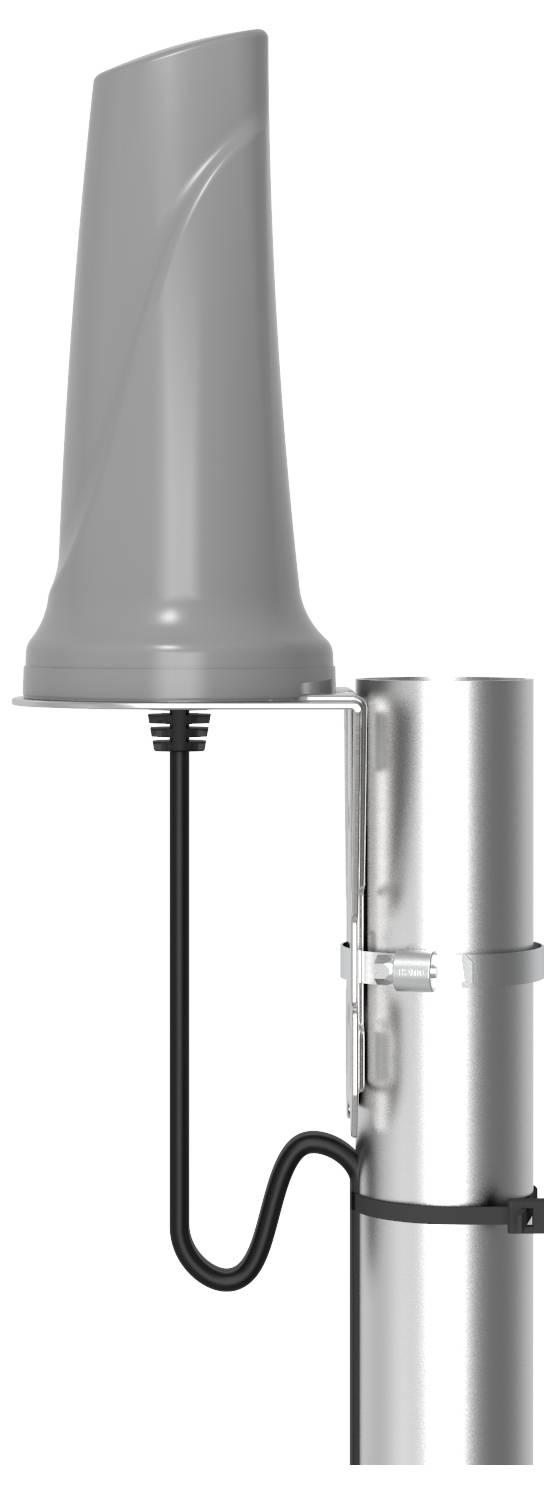

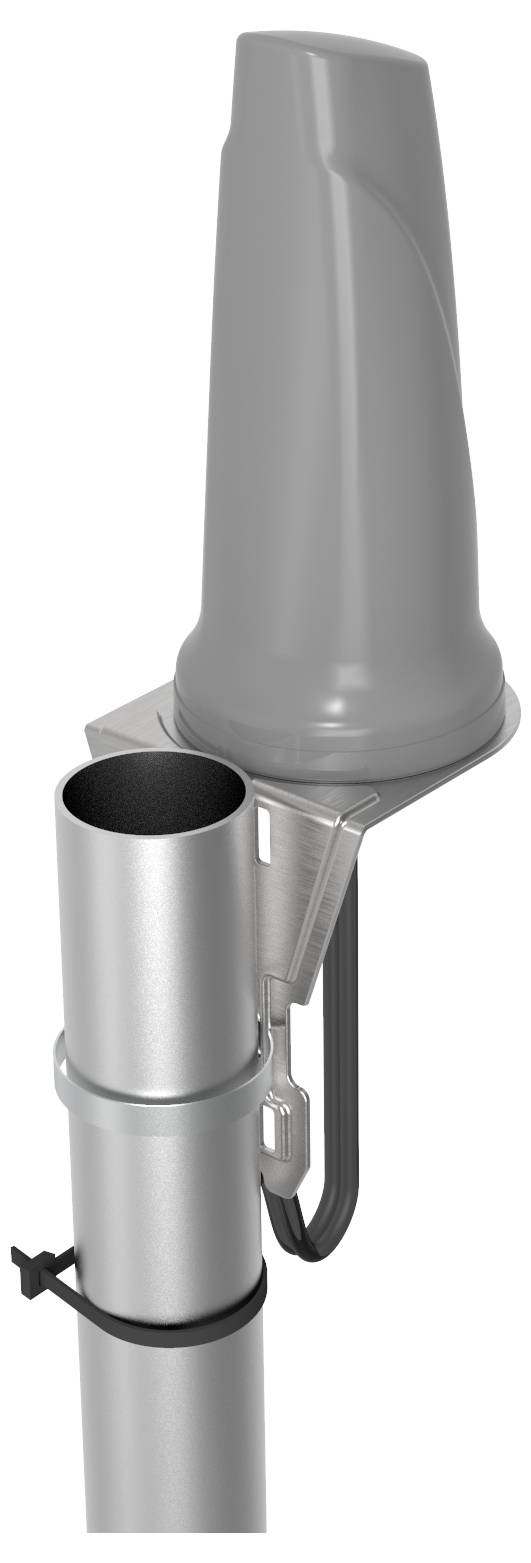

Poynting OMNI-297 A-OMNI-0297-V1-01 LTE antenna 2 dBi
EAN:
Part number:
Item no:
Highlights & Details
Poynting OMNI-0297 Network-Antenna Omni-directional Antenna SMA 2 dBi
- Medium gain omnidirectional antenna
- Suitable for 5G-supply up to 3800 MHz
- Compatible with 4G/3G/2G technologies, supports 2.4 GHz WLAN
- Ideal for IoT and M2M applications
- Robust and flat design
- Housing with high-pressure water and dust protection (IP69K)
Technical specifications
- 0,617 - 3.8 GHz
- WLAN standards 802.11g
- Product type
LTE antenna
- Gain
2 dBi
- Antenna socket
SMA plug
- Weight
350 g
- Height
155 mm
- Factory colour
Grey
- (Ø)
7 cm
- Impedance
50 Ω
IP69K
- UKCA
yes
- Operating temperature (T-T)
-40 - 80 °C
- Operating relative humidity (H-H)
5 - 95 %
- Package weight
530 g
Documents & Downloads
Datasheet
Datasheet 3790021 Poynting OMNI-297 A-OMNI-0297-V1-01 LTE antenna 2 dBi
User & Safety Instructions
User & Safety Instructions 3790021 Poynting OMNI-297 A-OMNI-0297-V1-01 LTE antenna 2 dBi
Description
Omni-directional broadband 5G/LTE rhythm antenna
The OMNI-297 is a powerful broadband mobile phone antenna from the new "Rhyno" antenna series from POYNTING. With a frequency range from 617 to 3800 MHz, this antenna covers all the latest 5G and LTE frequency bands, ensuring reliable and consistent connectivity. The OMNI-297 is designed for superior directional across the entire frequency range and provides stable, omni-directional coverage. This makes them an excellent choice for their size.
Wireless broadband coverage: Supports 617–3800 MHz, ensuring compatibility with global 5G and LTE networks.
Optimized for fixed installations: Ideal for stable, long-term use in any mobile phone environment.
Superior pattern control: Provides constant amplification across the entire frequency range, improving signal stability.
Multi-Carrier Aggregation (CA) support: Improves LTE performance by activating multiple frequency bands.
Ideal for M2M and IoT Applications: Developed for use in Machine-to-Machine (M2M) and Internet of Things (IoT) applications that communicate via GSM networks (GPRS/EDGE/3G/HSPA/LTE).
Omni-directional design: Ensures 360° signal reception and optimizes connectivity between different network providers.
The OMNI-297 is a future-proof mobile antenna that delivers broadband coverage, superior sample control, and robust performance for 5G, LTE, M2M, and IoT applications in fixed installations.
This text is machine translated.
The OMNI-297 is a powerful broadband mobile phone antenna from the new "Rhyno" antenna series from POYNTING. With a frequency range from 617 to 3800 MHz, this antenna covers all the latest 5G and LTE frequency bands, ensuring reliable and consistent connectivity. The OMNI-297 is designed for superior directional across the entire frequency range and provides stable, omni-directional coverage. This makes them an excellent choice for their size.
Wireless broadband coverage: Supports 617–3800 MHz, ensuring compatibility with global 5G and LTE networks.
Optimized for fixed installations: Ideal for stable, long-term use in any mobile phone environment.
Superior pattern control: Provides constant amplification across the entire frequency range, improving signal stability.
Multi-Carrier Aggregation (CA) support: Improves LTE performance by activating multiple frequency bands.
Ideal for M2M and IoT Applications: Developed for use in Machine-to-Machine (M2M) and Internet of Things (IoT) applications that communicate via GSM networks (GPRS/EDGE/3G/HSPA/LTE).
Omni-directional design: Ensures 360° signal reception and optimizes connectivity between different network providers.
The OMNI-297 is a future-proof mobile antenna that delivers broadband coverage, superior sample control, and robust performance for 5G, LTE, M2M, and IoT applications in fixed installations.
This text is machine translated.
