Name: Poynting PUCK-1-V2 A-PUCK-0001-V2-01 Antenna 5.5 dBi
Brand: Poynting
SKU: 3790005

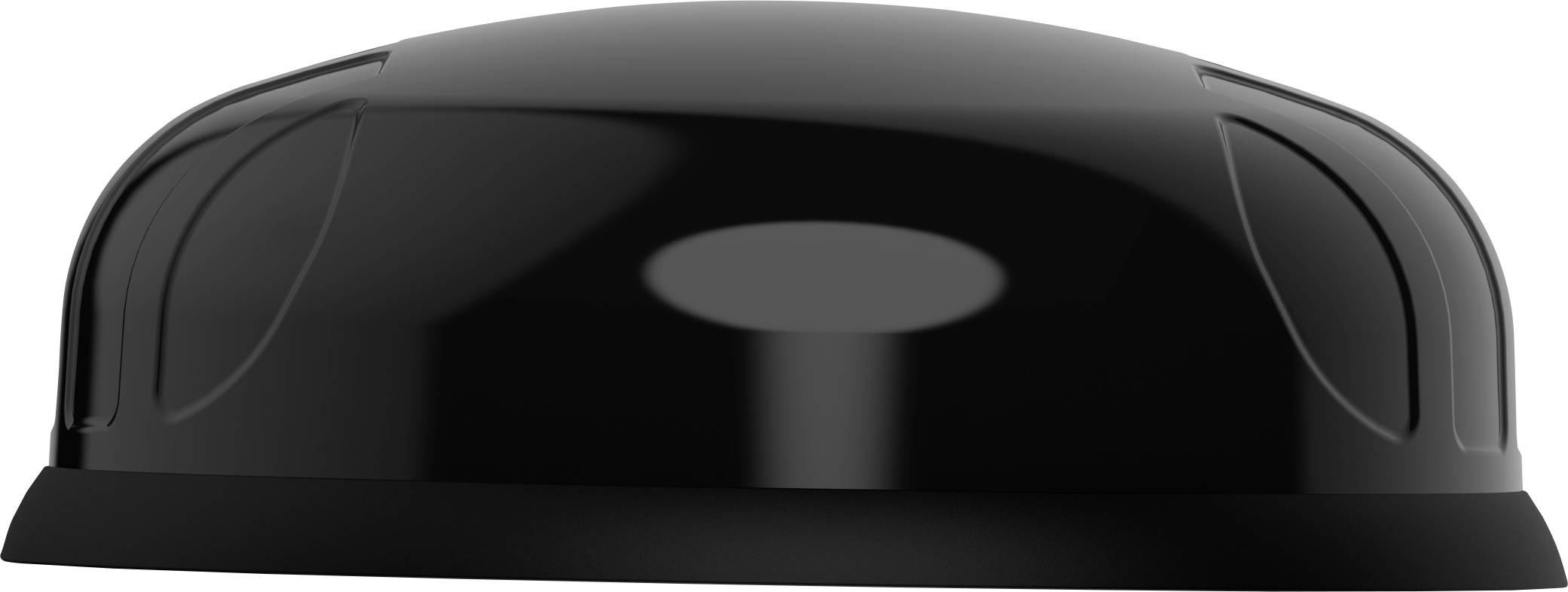

Black dome-shaped object, likely a protective cover or cap, viewed from the front on a white background.

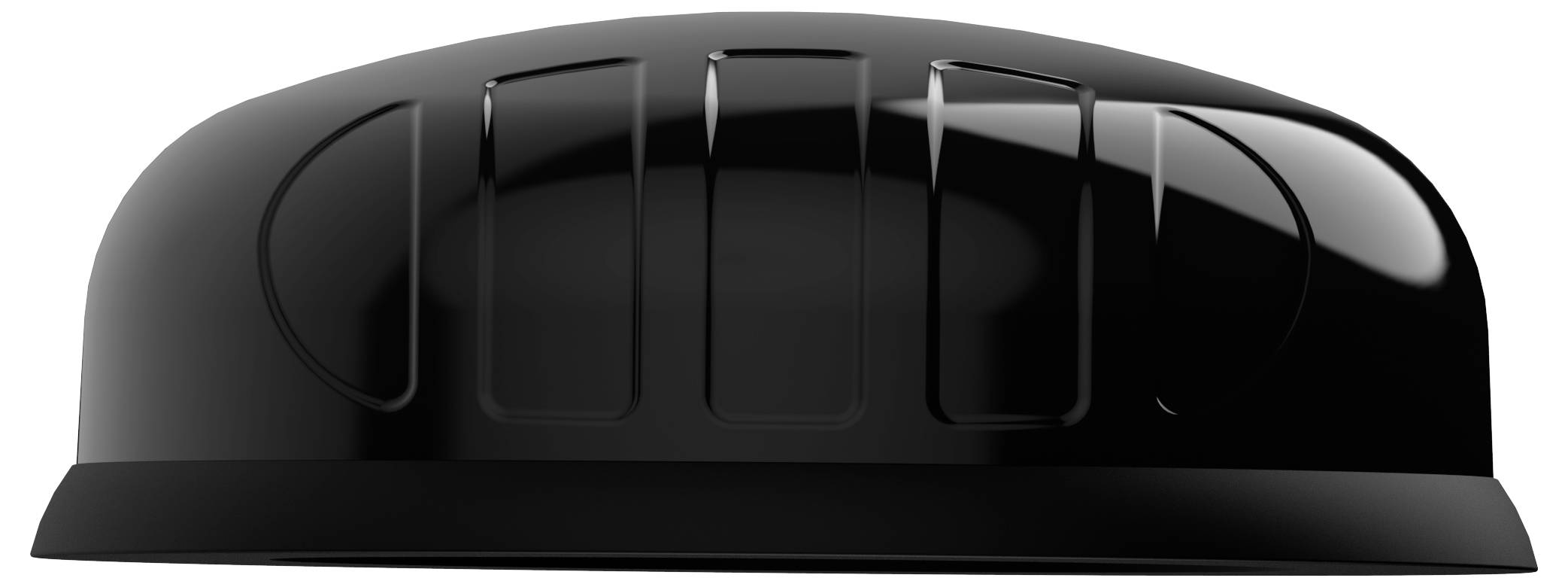

Black hard hat viewed from the front, shown in glossy black with a wide brim.

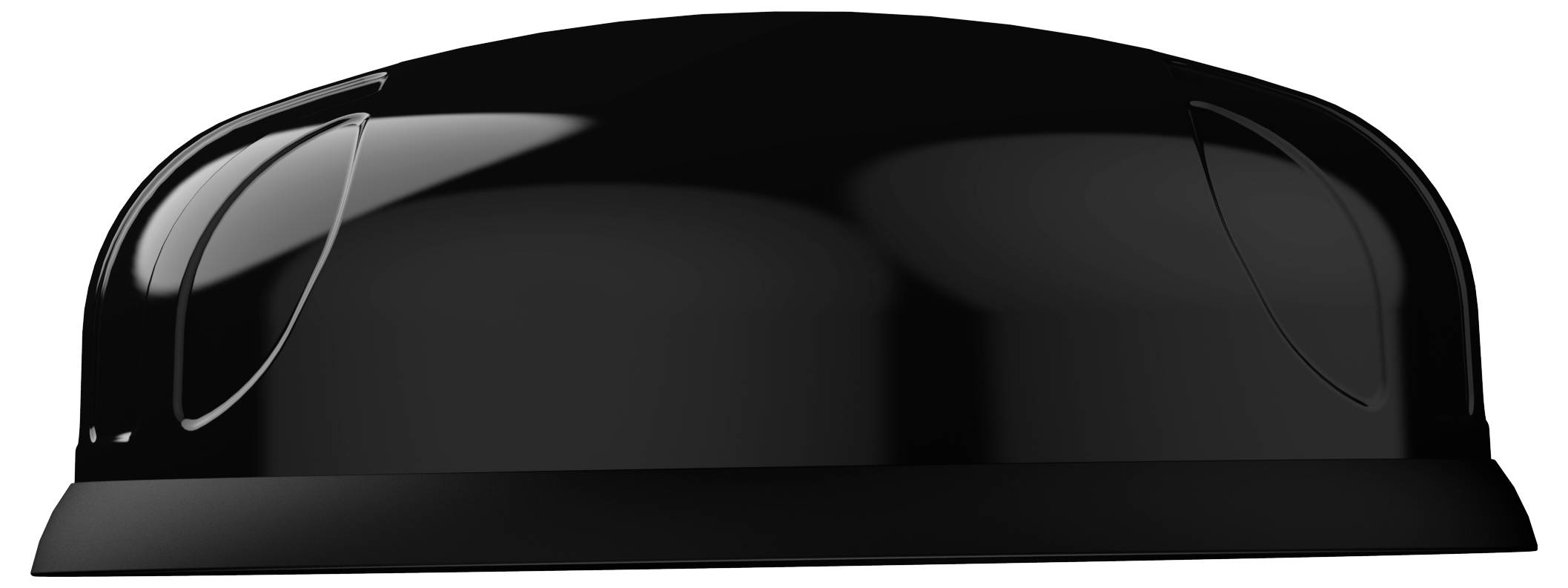

Black dome security camera housing with a glossy reflective cover, shown front view on a white background.

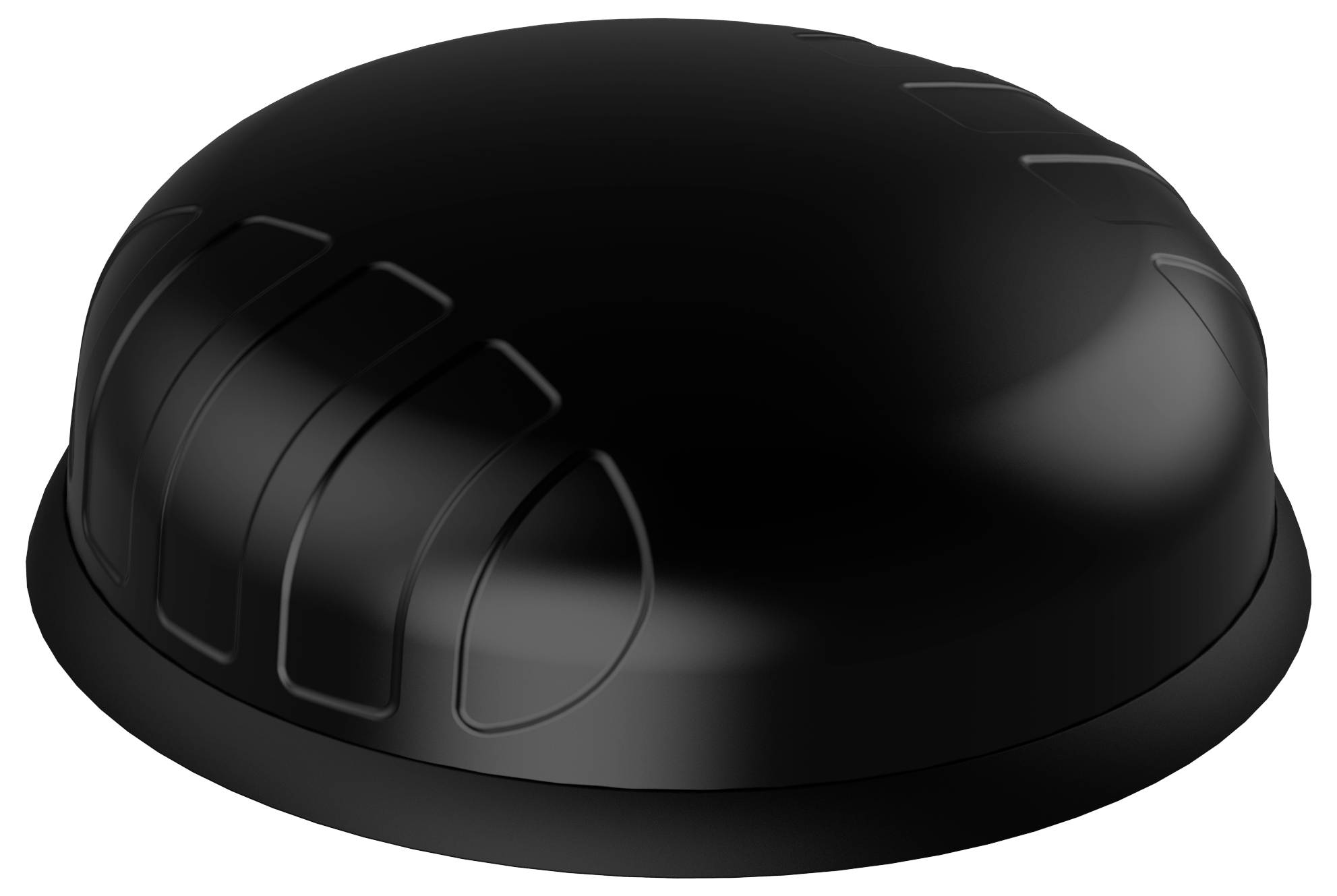

Black hard hat or safety helmet shown in side view on a white background.<br>

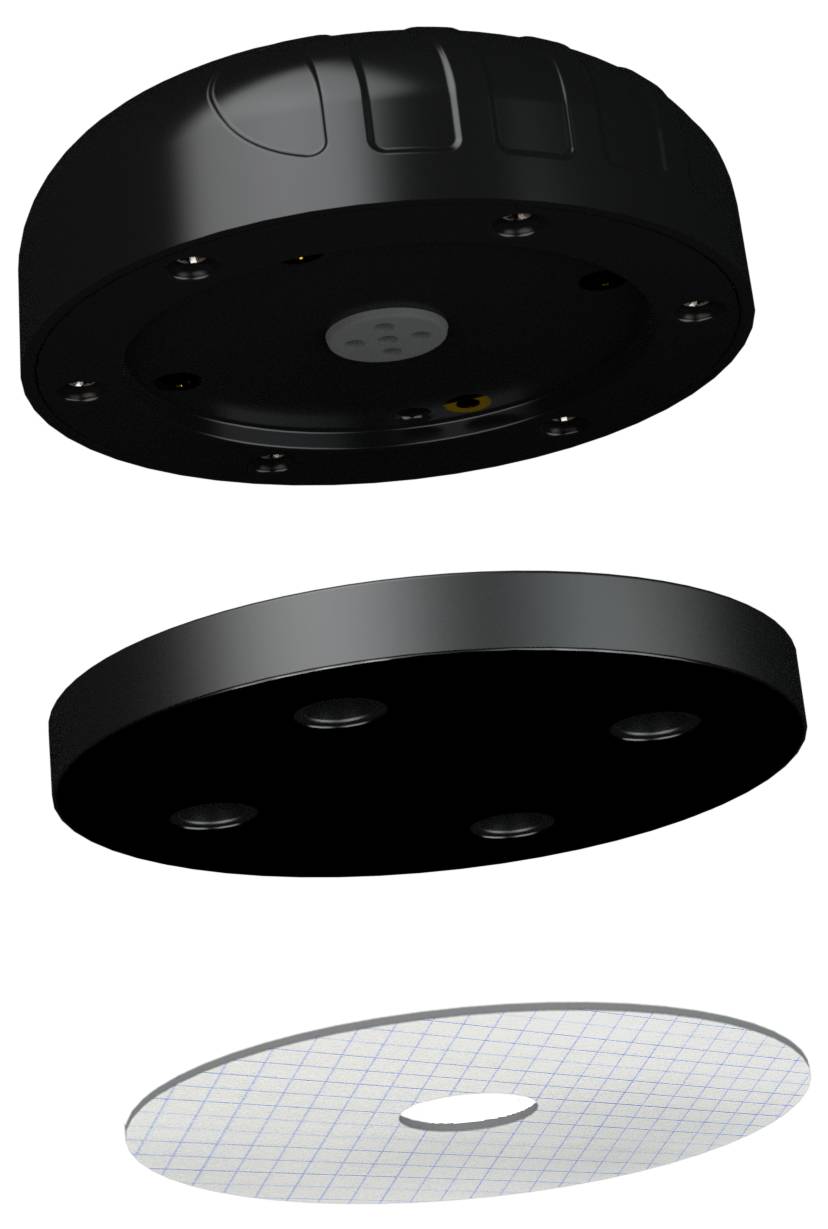

Exploded view of a round black device with a base and a transparent circular adhesive pad showing how the parts fit together.

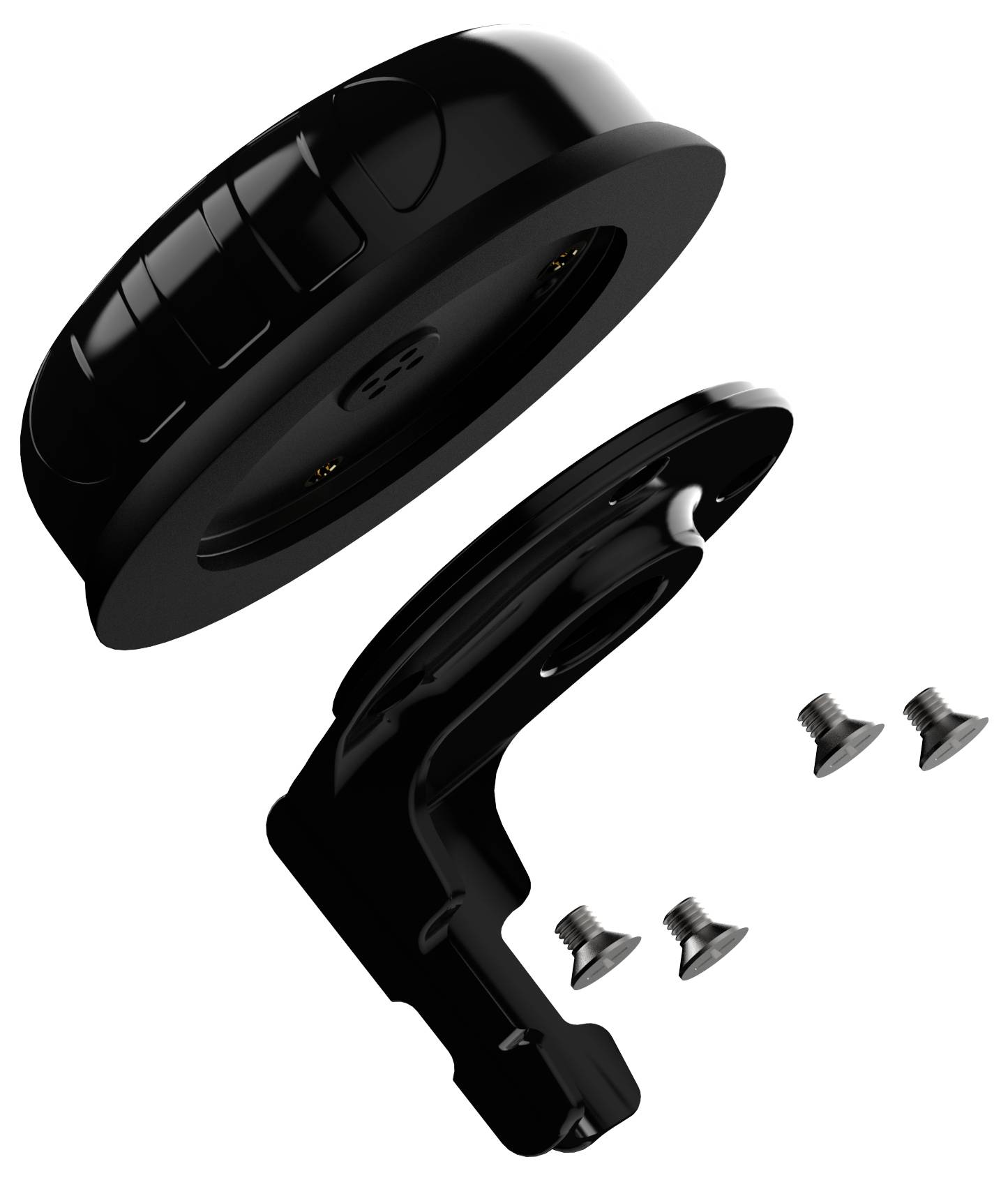

Exploded view of a black mounting bracket with a round base and four screws, showing how the parts fit together.<br>

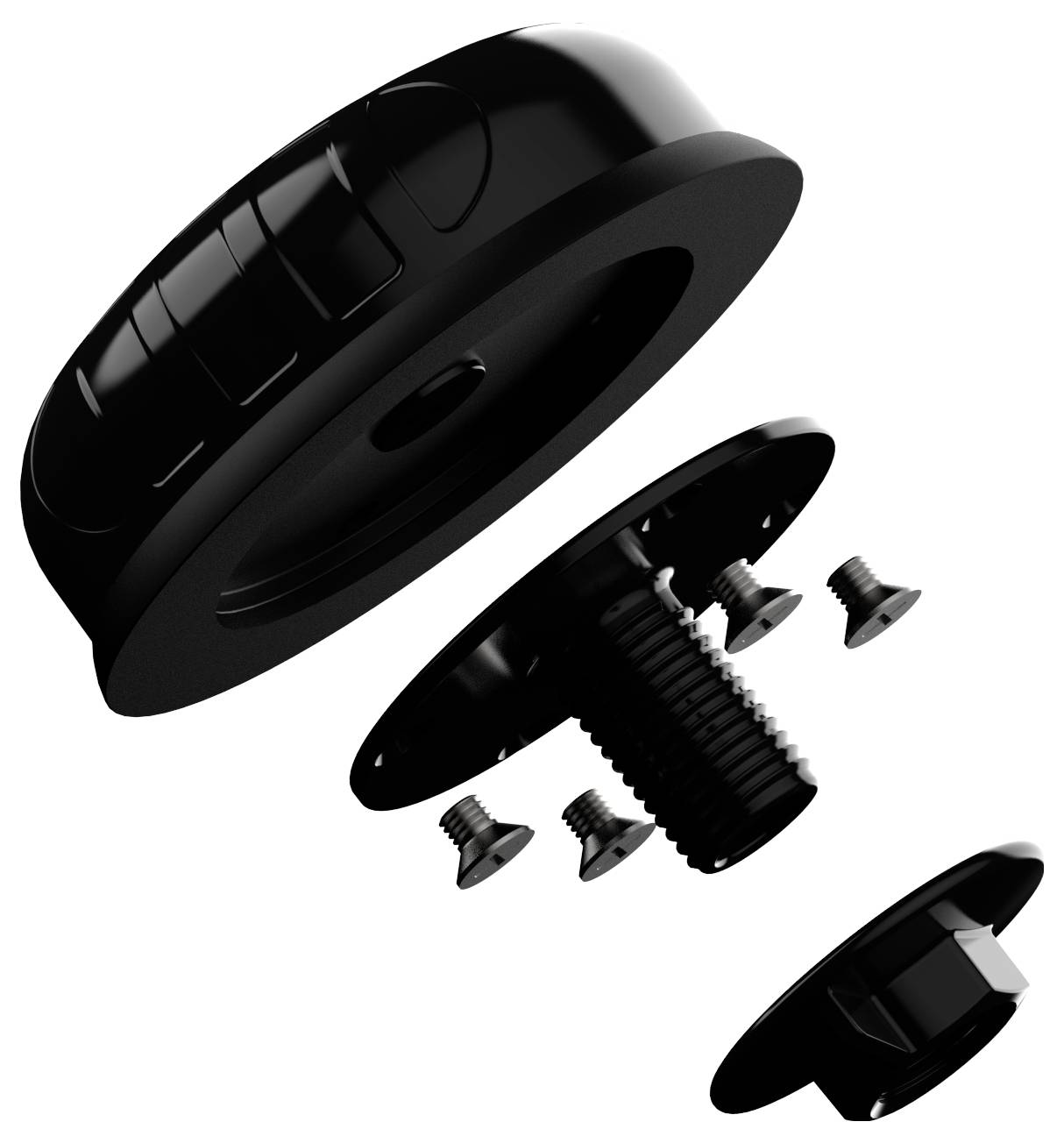

Exploded view of a black plastic fastener assembly with a threaded central piece, cap, base, and four screws.

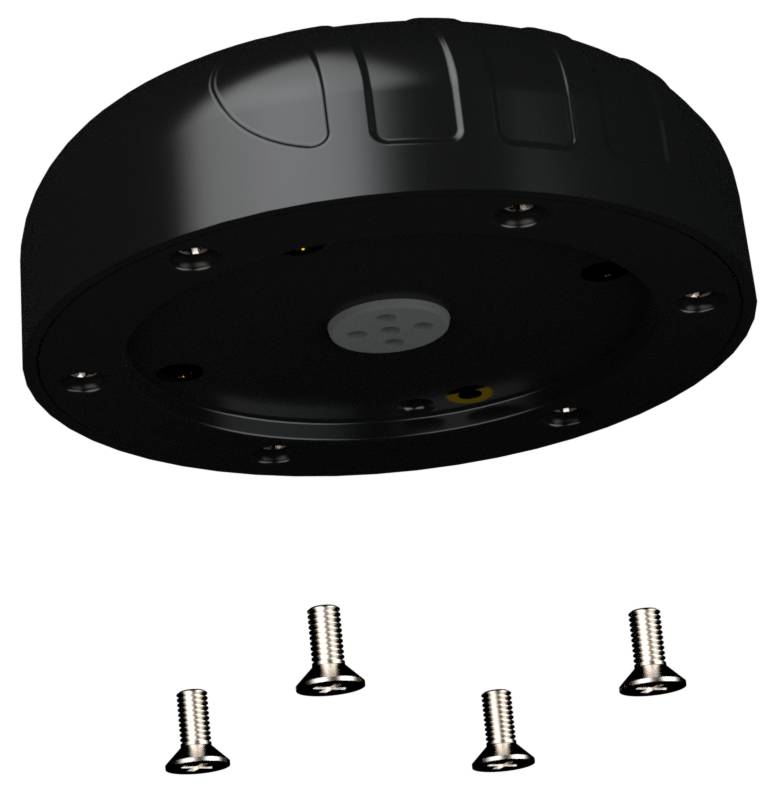

Black round device underside with mounting holes, shown above four metal screws for installation.

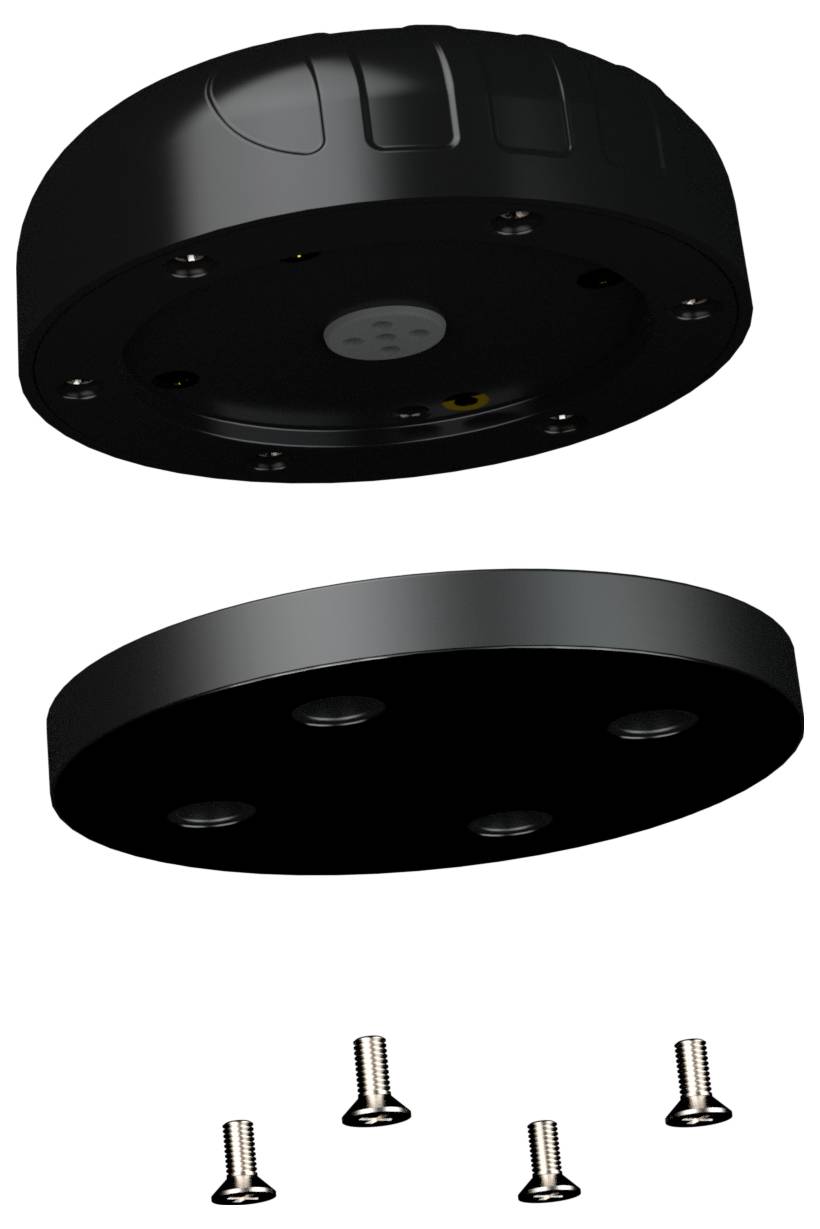

Exploded view of a round black device showing the top housing, bottom cover, and four mounting screws.

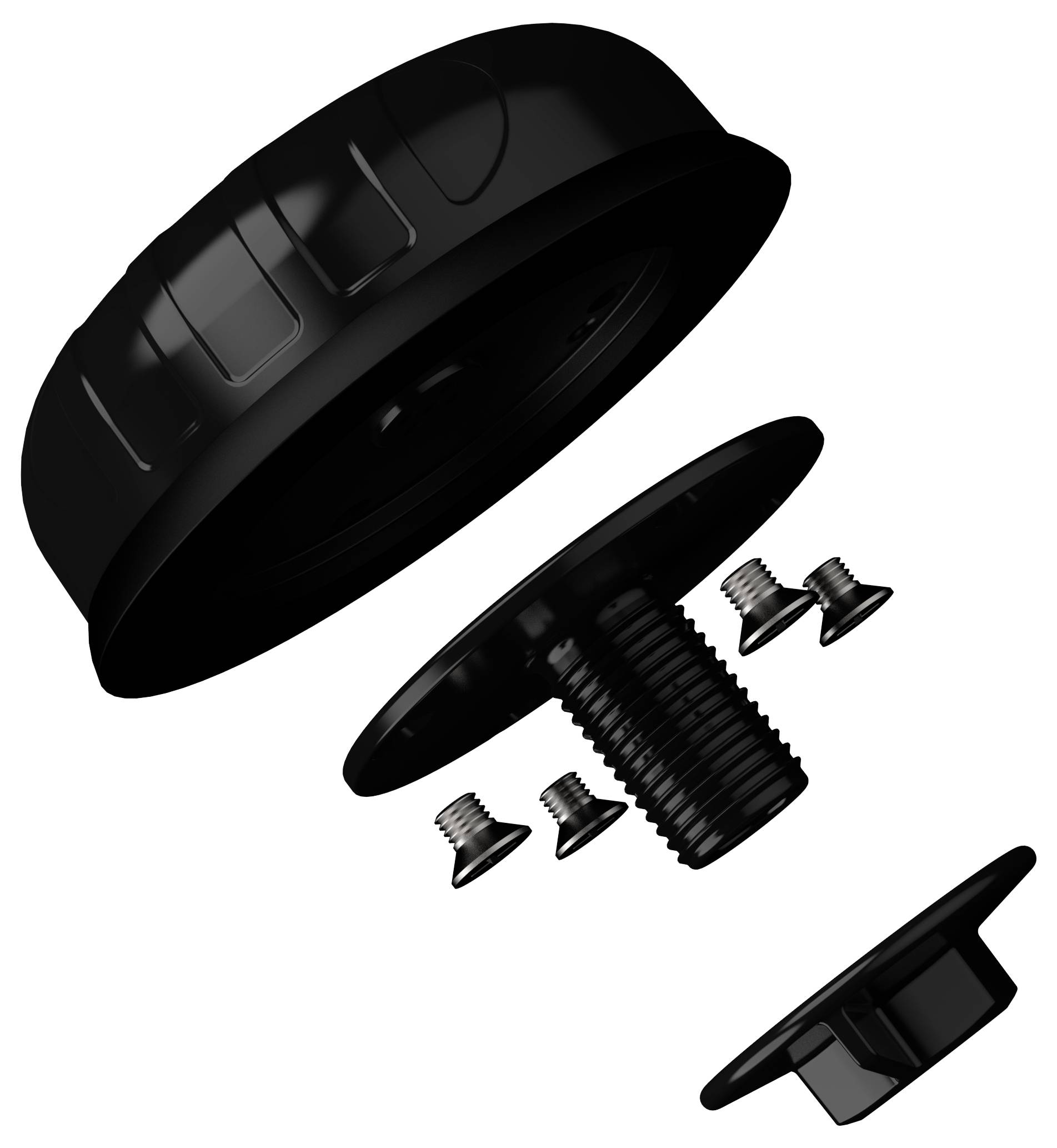

Exploded view of a black plastic cap assembly with threaded insert and four screws, showing the parts separated for assembly.

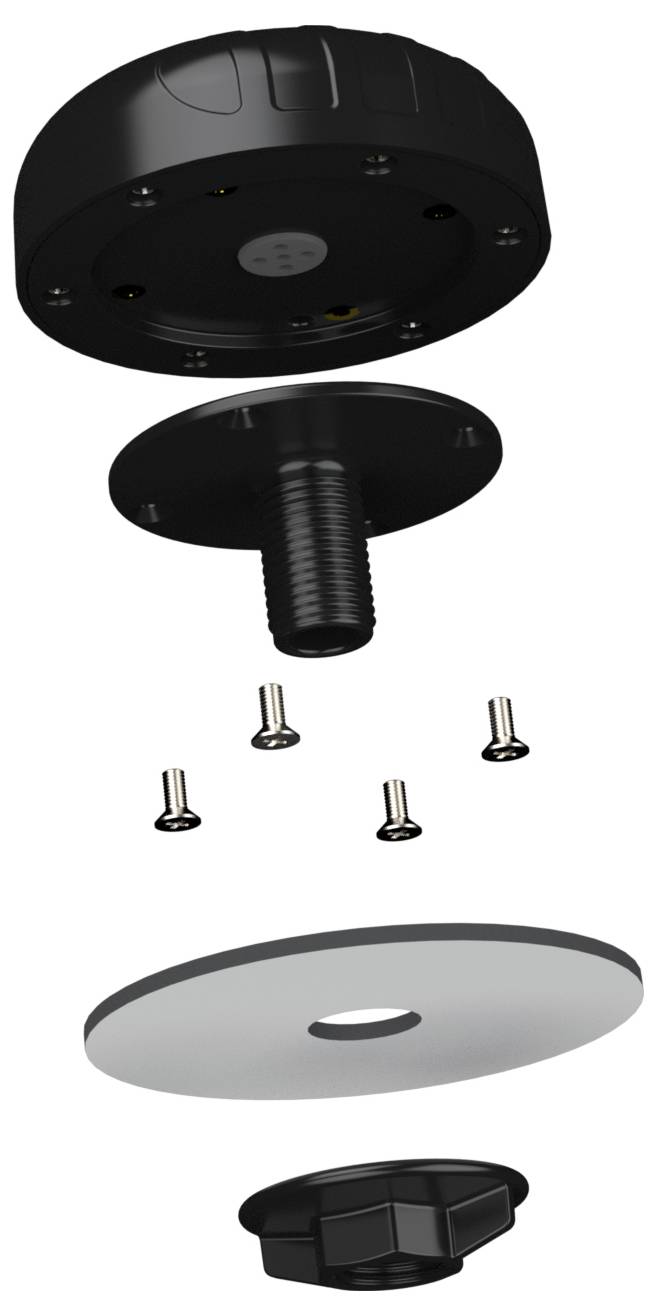

Exploded view of a ceiling-mounted fixture: black round top housing, threaded center post, four small fasteners, gray mounting plate, and black retaining cap.

1/11

Poynting

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

High-performance antennas for IoT/M2M

5G high-performance -multi-frequency antenna
Antenna supports private 5G/5G/4G/3G/2G/Wi-Fi/LoRa/Bluetooth
Ultra-broad band coverage of 617 – 6000 MHz for mobile radio
Robust, vandal-proof and waterproof (IP 69K)
Ideal for transport, shipping and IoT/M2M application
Extremely versatile mounting options for an easy installation

Technical specifications

Product type: Antenna

Gain: 5.5 dBi

Antenna socket: SMA socket

Weight: 0.312 kg

Polarisation: Linear
Vertical

Width: 99.3 mm

Height: 36 mm

Cable length: 0 cm

Keyboard layout: German, QWERTZ

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3790005 Poynting PUCK-1-V2 A-PUCK-0001-V2-01 Antenna 5.5 dBi

User & Safety Instructions

User & Safety Instructions 3790005 Poynting PUCK-1-V2 A-PUCK-0001-V2-01 Antenna 5.5 dBi

Description

POYNTING's PUCK range includes compact, high-performance antennas for IoT/M2M, Smart Metering, Smart Utilities, Transport, Shipping and Agriculture. The PUCK-1 is a 617 to 6000 MHz broadband SISO antenna that provides reliable connectivity in LTE/4G and 5G networks.
