Pracht 7273615 LED light tube LED (monochrome) Built-in LED 38 W White Transparent
EAN:
Part number:
Item no:
Highlights & Details
Pracht LED round-pipe lamp 4000K SK I, DV 5x1.5 Tubis N LED #7273615
- Power= 38 W
- Total luminous flux= 5600 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: Yes
- Suitable for pendulum suspension: Yes
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: No.
- Suitable for mounting on the panel: Yes
- Suitable for light band configuration: No.
- Suitable for screen workstations according to EN 12464-1: No.
- Suitable for the number of bulbs: 1
- Version: Other
- Housing material: Plastic
- Surface protection housing: Painted
- Housing color: Colourless
- Cover material: Plastic opal
- Design of grid: Without
- Voltage type AC/DC
- Nominal voltage 220..240 V
- Nominal current: 0.18 mA
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Dimming depends on the operating device: No.
- Without dimming function: Yes
- Light distributor: Diffuser lens/-optic/-panel
- Light distribution: Symmetric
- Radiation angle: Extremely wide radiation >80°
- Color consistency (McAdam ellipse): SDCM3
- Light emission: Direct
- Energy efficiency of the permanently installed light bulb: Other
- Rated life L70/B50 at 25 °C: 231103 h
- Rated life L80/B10 at 25 °C: 126317 h
- Rated life L90/B10 at 25 °C: 61022 h
- Max. Number of lights circuit breaker B16: 24
- Max. Number of lamps line circuit breakers C16: 40
- Protection class (IP): Other
- Protection class (NEMA): 13
- Impact strength: IK08
- Protection class: I
- Lamp with limited surface temperature ""D-sign"": Yes
- Rated ambient temperature according to IEC62722-2-1: -20..35°C.
- Suitable for emergency lighting: Yes
- Integrated emergency power supply: No.
- With motion detector: No.
- With light sensor: No.
- Covering of the lamp with thermal insulation material is possible: No.
- With air vents: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Max. System power 38 W
- Light output 147 lm/W
- Rated light current according to IEC 62722-2-1: 5600 lm
- Light color: White
- Colour temperature: 4000 K
- Flicker value PST LM: 0.5
- Color Rendering Index CRI: 80-89
- Power factor 0.95
- Strobe effect value SVM: 1
- Constant luminous flux regulation: No.
- Width 90 mm
- Height/depth 105 mm
- Length: 1565 mm
- Outer diameter: 90 mm
- Type of wiring: With through wiring
- Number of pins: 5
- Conductor cross-section: 1.5 mm²
- Connection type: Plug-in terminal
- Photobiological safety according to EN 62471: RG1
- Glare limiter (UGR): 24
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Operation via Bluetooth: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Product type
LED light tube
- Type
Tube
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
Built-in LED
- Rating per bulb
38 W
- Length
1565.00 mm
38 W
- Height
105.00 mm
- Width
90.00 mm
4000 K
- Colour
White
5600 lm
- Total luminous flux
5600 lm
- Light features
Pivoted
- Factory colour
Transparent
- Material
Plastic
- Dim
(Ø x H) 90 mm x 105.00 mm
n.rel.
- Colour rendering index
80-89
- Light bulb included
Yes
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Colour temperature range
4000 - 4000 K
- (Ø)
90 mm
- Rated luminous flux
5600 lm
- Nominal voltage
230 V
- Protection class
I
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3159444 Pracht 7273615 LED light tube LED (monochrome) Built-in LED 38 W White Transparent
Description

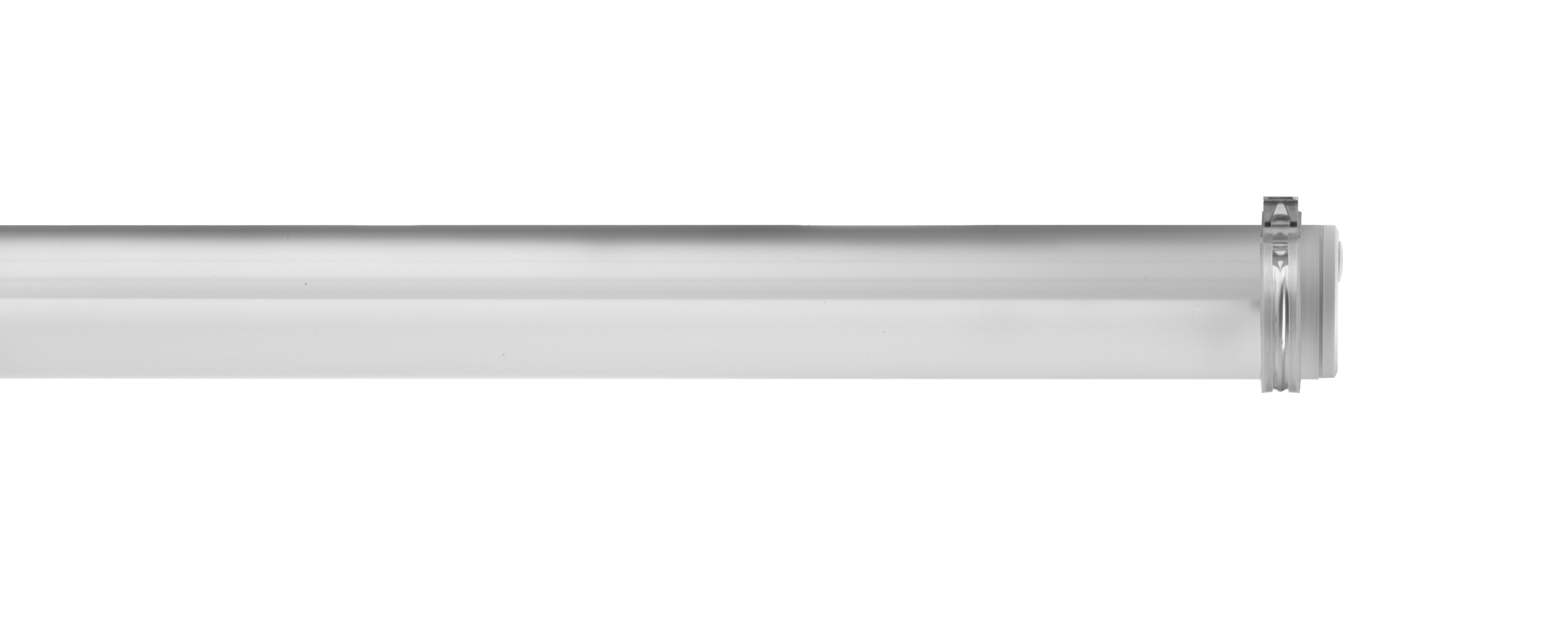

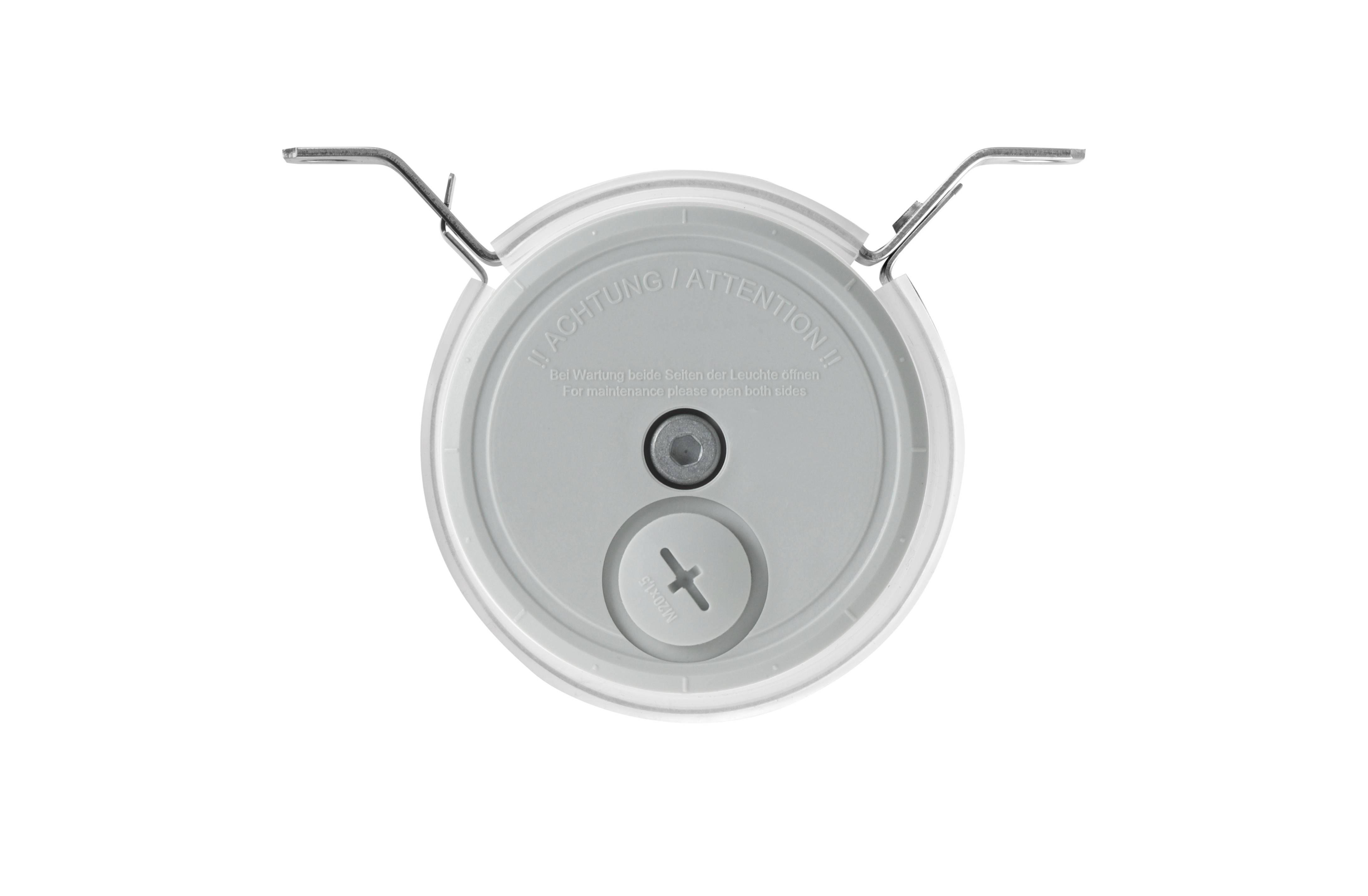

LED tubular lamp with MID power LEDs, mounted in a series, converter integrated in lamp, diameter 90mm, tubular housing made of PRACHTOPAL (PMMA, tough), light 360° rotating, largely acid and alkali-resistant, short, aging-resistant seals made of silicon, variable mounting distances due to high-grade stainless steel clamps, suitable for ceiling, horizontal and vertical wall mounting, pendant and rail mounting with accessories possible, pendulum and mounting also approved for unprotected outdoor areas.
