Pracht 86330721 86330721 LED hall light LED (monochrome) 274 W White
EAN:
Part number:
Item no:
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Bulb: LED not replaceable
- With bulb: Yes
- Mounting type: Construction
- Suitable for the number of bulbs: 2
- Suitable for side lighting: No.
- Version: Other
- Material of housing: Aluminium
- Housing color: White
- Voltage type AC/DC
- Nominal voltage 220..240 V
- Nominal current: 1.32 mA
- Rated LED current at constant current 700 mA
- Operating device: LED operating device current-controlled
- Removable operating device: Yes
- With operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: Yes
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Light distributors: Refractor lens
- Light distribution: Symmetric
- Reflector: Without
- Material of the reflector: Without reflector
- Radiation angle: Medium radiation 21-40°
- Color consistency (McAdam ellipse): SDCM3
- Energy efficiency of the permanently installed light bulb: Other
- Rated life L70/B50 at 25 °C: 100000 h
- Rated life L90/B10 at 25 °C: 34000 h
- Protection class (IP) IP65
- Protection class (NEMA): Other
- Impact strength: IK10
- Suitable for sports facilities: No.
- Protection class: I
- Lamp with limited surface temperature "D-sign": Yes
- Rated ambient temperature according to IEC62722-2-1: -40..45°C.
- Integrated emergency power supply: No.
- Suitable for emergency lighting: Yes
- Filament testing according to IEC 60695-2-11:960°C - 30 s.
- Max. System power 274 W
- Rated light current according to IEC 62722-2-1: 40000 lm
- Light output 146 lm/W
- Light color: White
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Constant luminous flux regulation: No.
- Adjustable color temperature: No.
- Adjustable radiation angle: No.
- Luminous flux can be set continuously
- Width 324 mm
- Height/depth 157 mm
- Length: 768 mm
- Type of wiring: Finish
- Connection type: Other
- With protective cover: No.
- Max. Number of lights circuit breaker B16: 7
- Max. Number of lamps line circuit breakers C16: 11
- Product type
LED hall light
- Operating voltage
230 V
- No. of bulbs
2
- Bulb type
LED (monochrome)
274 W
4000 K
- Colour
White
40000 lm
- Total luminous flux
40000 lm
- Light features
Dimmable
- Protection class
I
IP65
- Factory colour
White
- Material
Aluminium
- Dim
(L x W x H) 768.00 x 324.00 x 157.00 mm
n.rel.
- Colour rendering index
80-89
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Colour temperature range
4000 - 4000 K
- Width
324.00 mm
- Height
157.00 mm
- Length
768.00 mm
- Depth
157 mm
- Rated luminous flux
40000 lm
- Light bulb included
Yes
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3163697 Pracht 86330721 86330721 LED hall light LED (monochrome) 274 W White
Description

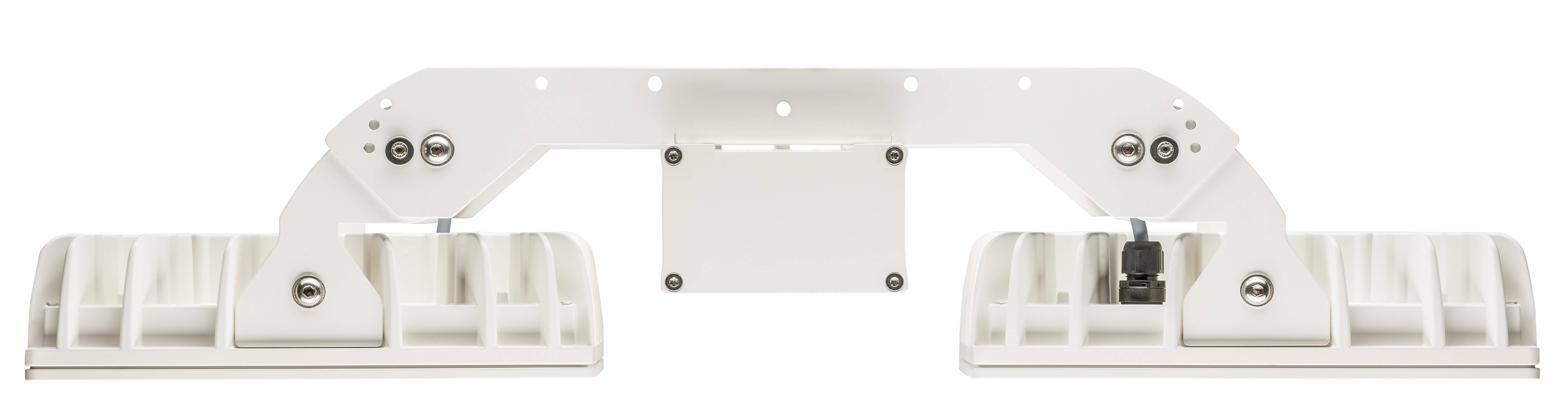

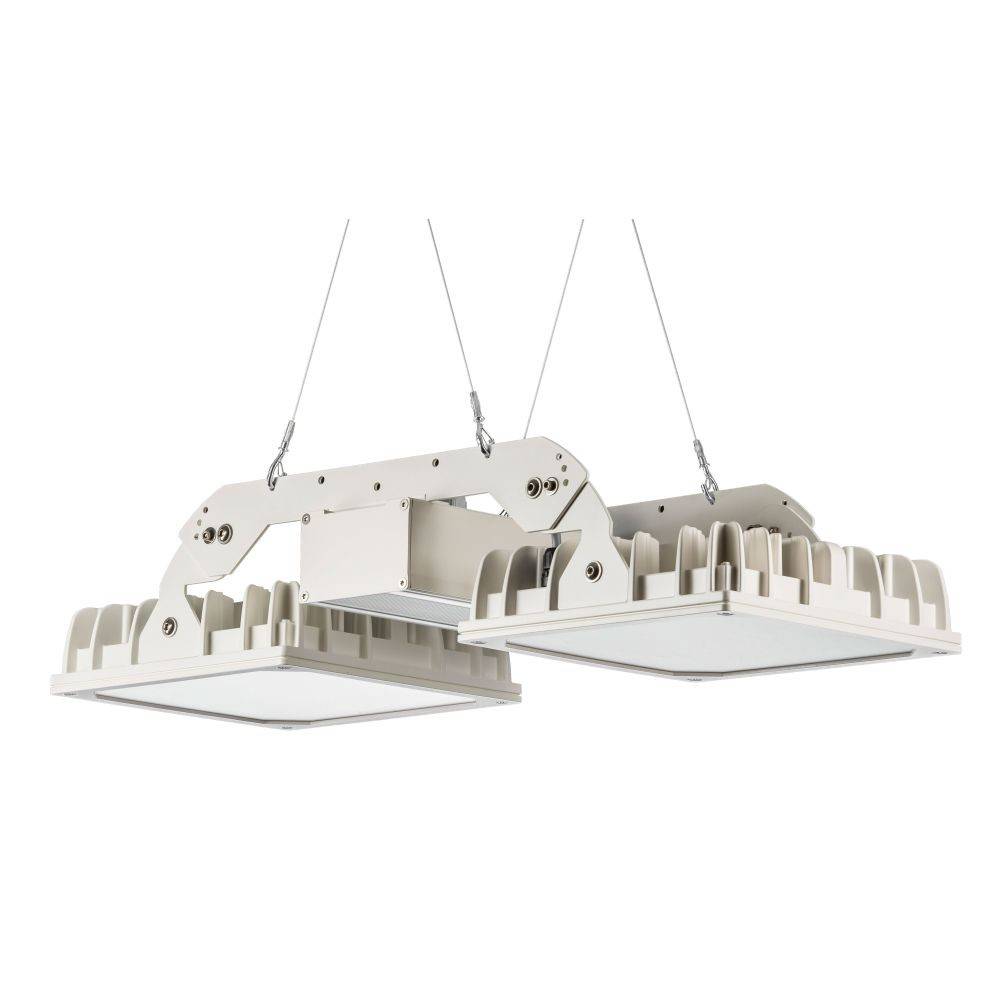

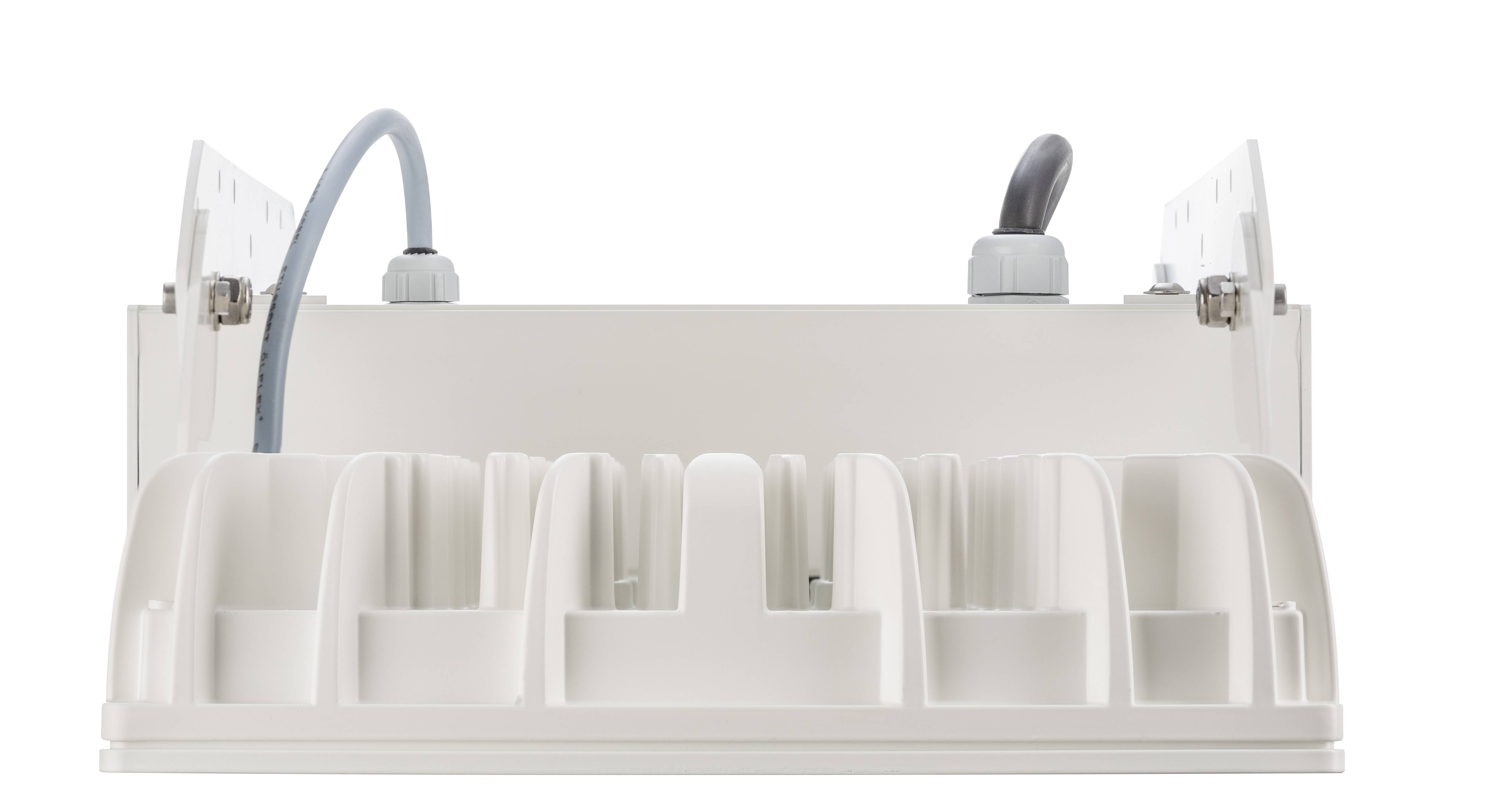

LED spotlight with cover plate from polycarbonate (clear, impact-resistant), hygienic, low-maintenance and dust-protected thanks to impact-resistant PC glass, housing made of die-cast aluminum, white coated, converter integrated in the lamp housing. Electrical connection by open cable end, short, age-resistant seals made from silicone, two-point attachment by cable pendel (2,000 mm) with easy to mount, tool-free quick adjustment, pendulum mounting, wall and ceiling mounting bracket available as an accessory.
