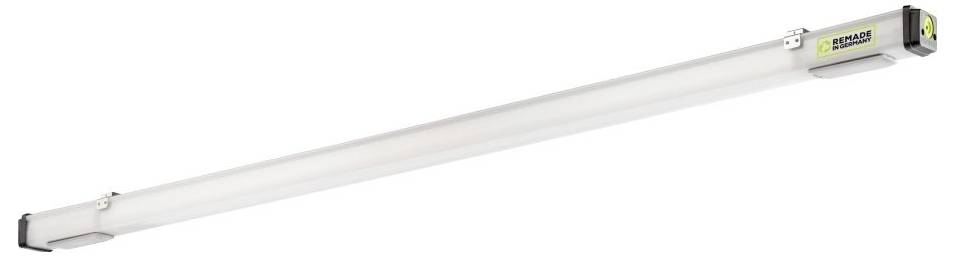

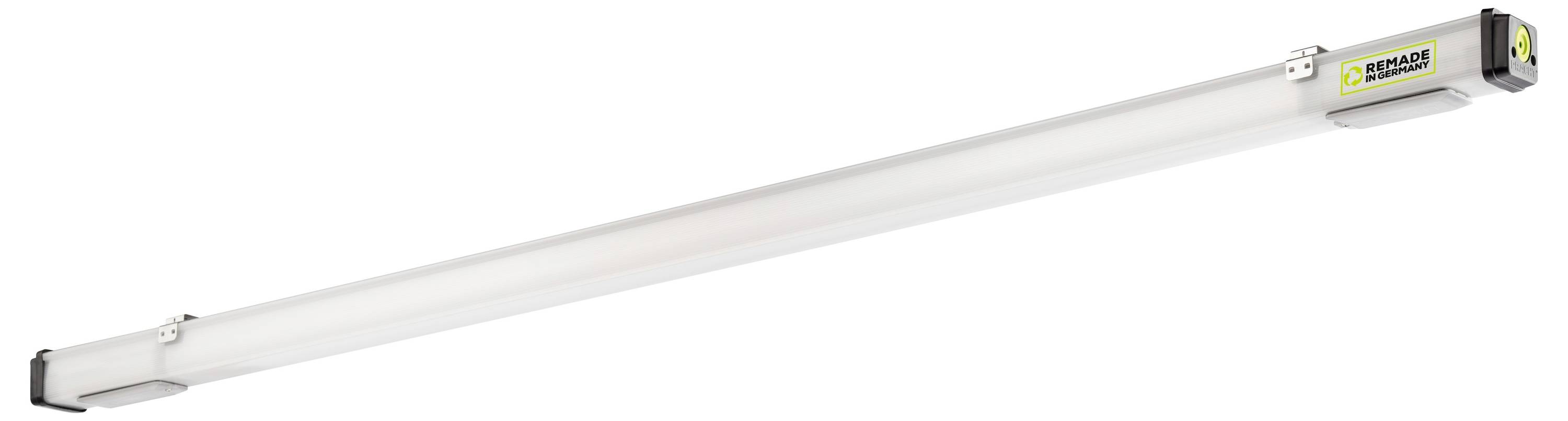

Pracht 9131126-KATLA_REMADE LED wet room light LED (monochrome) 22 W White White
EAN:
Part number:
Item no:
Highlights & Details
Pracht LED wet room lamp RECYCLE PCORE 4000K KATLA REMADE#9131126
- Power= 22 W
- Total luminous flux= 2700 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Connection type: Plug-in terminal
- Type of wiring: With through-wiring
- Rated ambient temperature -20 °C - +35 °C.
- Operating device: LED operating device current-controlled
- Dimming DALI: Yes
- Dimming can be programd: Yes
- Suitable for installation: Yes
- Suitable for emergency light: Yes
- Suitable for suspended engine mounting: Yes
- LED nominal current at constant current 250 mA
- Conductor cross-section 1.5 mm²
- Light output 123 lm/W
- Light emission: Direct
- Light splitter: Diffuser lens/optics/panel
- Light distribution: Symmetrical
- With operating device: Yes
- With bulb: Yes
- Number of pins: 5
- Protection class: I
- Product type
LED wet room light
- Operating voltage
240 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Rating per bulb
22 W
- Length
1205 mm
22 W
- Height
62 mm
- Width
59 mm
4000 K
- Colour
White
2700 lm
- Total luminous flux
2700 lm
- Light features
Suitable for wall mounting
Ceiling mount option
IP66
- Factory colour
White
- Material
Plastic
- Dim
(L x W x H) 1205 x 59 x 62 mm
n.rel.
- Radiation angle
80°
- Light bulb included
Yes
- Colour temperature range
4000 K
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2337210 Pracht 9131126-KATLA_REMADE LED wet room light LED (monochrome) 22 W White White
Description
The first industrial lamp with 100% recycled plastics. Sustainable wet room add-on lamp with REMADE lamp housing (Reciclat made of post-industrial and post-consumer waste). IP66 - sealed thanks to short, age-resistant seals. Comfortable and fast installation through two spacious mains connection rooms and simple installation through variable mounting distances through THE SPLENDID BRACKET SYSTEM made of stainless steel. With highly efficient LEDs, wide beam with ceiling illumination. Bolted components - thus sustainably interchangeable. Suitable for ceiling and horizontal wall mounting, pendant and rail mounting with accessories possible.
