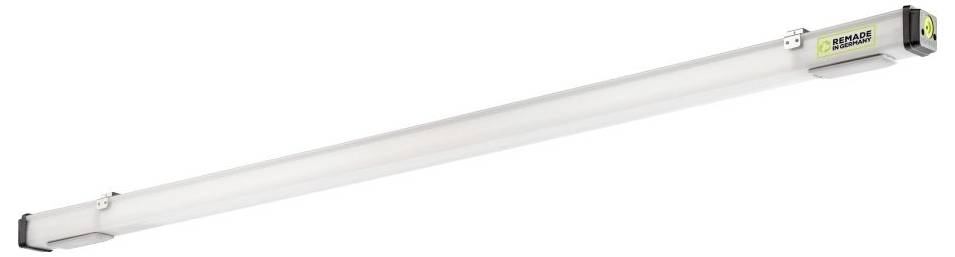

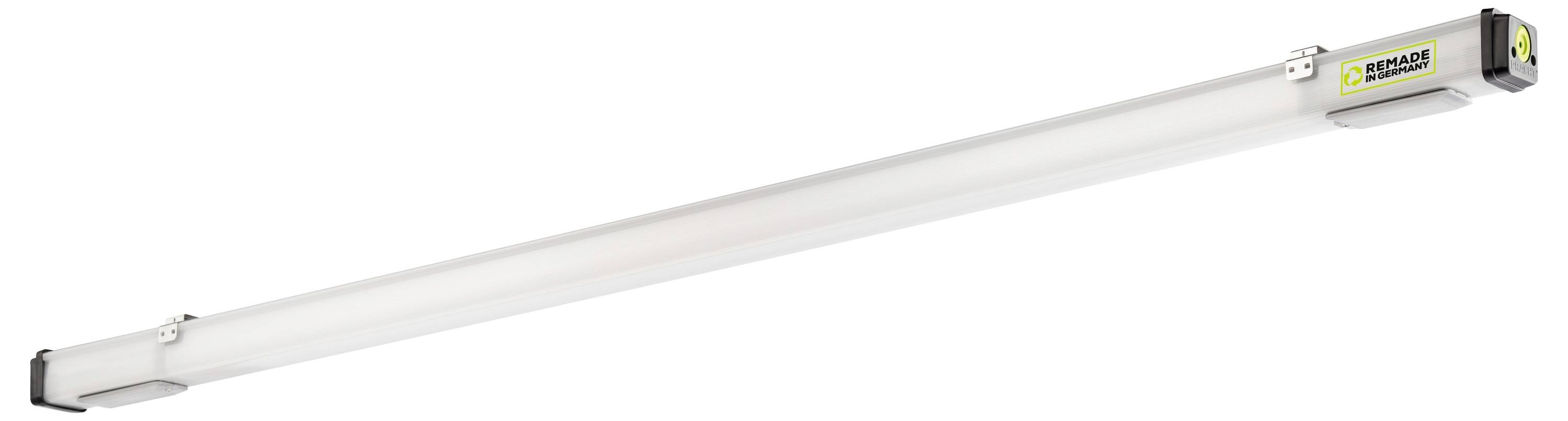

Pracht 9131161-KATLA_REMADE LED wet room light LED (monochrome) 38 W White White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Splacht LED wet room lamp with DV RECYCLE, 3x1.5, 1.5m KATLA REMADE#9131161
- Power= 38 W
- Total luminous flux= 4700 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Type of wiring: With through-wiring
- Operating device: Voltage-controlled LED operating device
- Dimming depends on the operating device: Yes
- Suitable for installation: Yes
- Suitable for emergency light: Yes
- Suitable for suspended engine mounting: Yes
- Conductor cross-section 1.5 mm²
- Lamp light output 115 lm/W
- Light emission: Direct
- With operating device: Yes
- With bulb: Yes
- Number of poles: 3
- Protection class: I
- Product type
LED wet room light
- Operating voltage
240 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Rating per bulb
38 W
- Length
1465 mm
38 W
- Height
62 mm
- Width
59 mm
4000 K
- Colour
White
4700 lm
- Total luminous flux
4700 lm
- Light features
Suitable for wall mounting
Ceiling mount option
IP66
- Factory colour
White
- Material
Plastic
- Dim

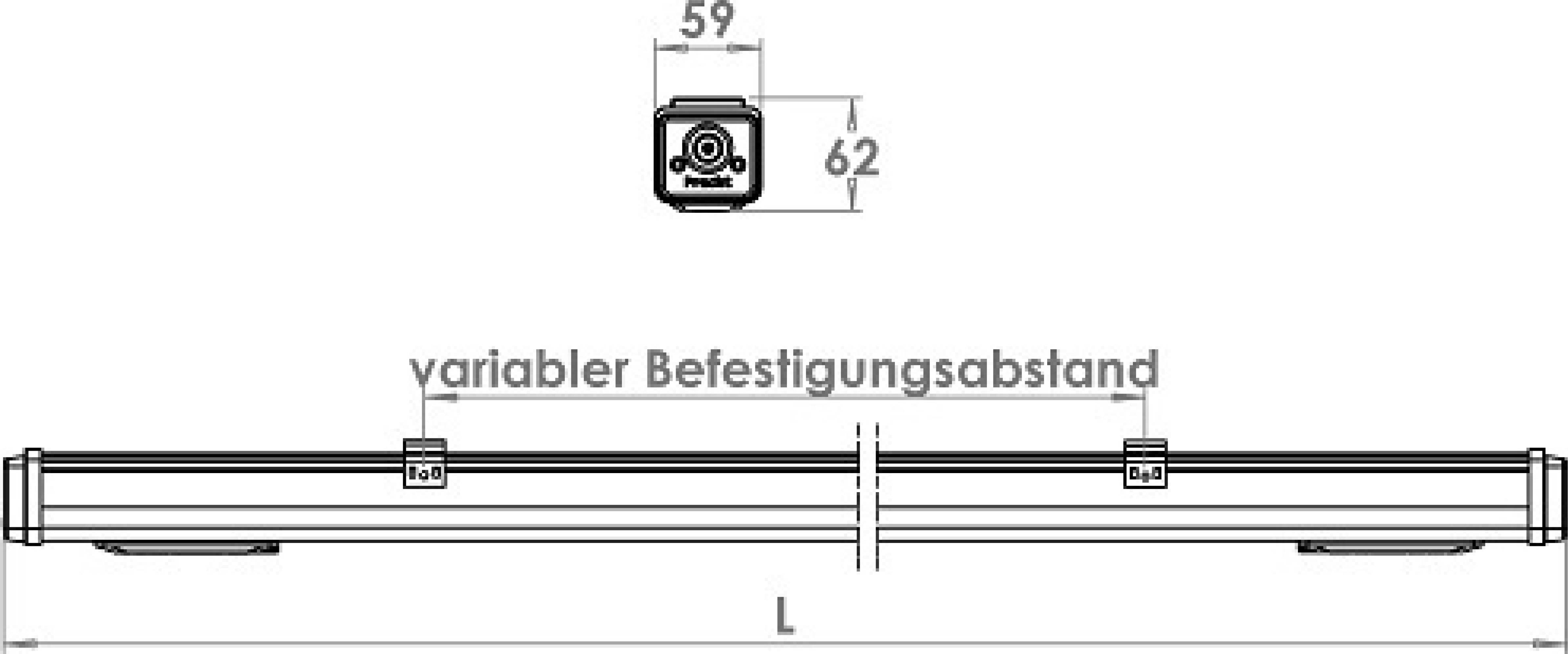

(L x W x H) 1465 x 59 x 62 mm
n.rel.
- Radiation angle
80°
- Light bulb included
Yes
- Colour temperature range
4000 K
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2337183 Pracht 9131161-KATLA_REMADE LED wet room light LED (monochrome) 38 W White White
User & Safety Instructions
User & Safety Instructions 2337183 Pracht 9131161-KATLA_REMADE LED wet room light LED (monochrome) 38 W White White
Description
Wet room attachment lamp with narrow, flat, light-permeable, opalised polycarbonate recyclate (impact-resistant), end pieces made of PP-Recyclat (impact-resistant), short, age-resistant seals, easy installation through two spacious mains connection rooms, high-power LED, wide beam with ceiling brightening, converter installed in the housing, converter is easily replaceable, mounting distances through splendid variable clamping system, stainless steel and horizontal ceiling mounting system Pendant and rail mounting possible with accessories.
