Pracht 9171186-KATLA_REMADE LED wet room light LED (monochrome) 54 W White White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Pracht LED-Damp room lamp RECYCLE PCORE 4000K KATLA REMADE#9171186
- Power= 54 W
- Total luminous flux= 6500 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Connection type: Plug-in terminal
- Type of wiring: With through-wiring
- Rated ambient temperature -20 °C - +35 °C.
- Operating device: LED operating device current-controlled
- Dimming DALI: Yes
- Dimming can be programd: Yes
- Suitable for installation: Yes
- Suitable for emergency light: Yes
- Suitable for suspended engine mounting: Yes
- LED rated current at constant current 375 mA
- Conductor cross-section 1.5 mm²
- Light output 120 lm/W
- Light emission: Direct
- Light splitter: Diffuser lens/optics/panel
- Light distribution: Symmetrical
- With operating device: Yes
- With bulb: Yes
- Number of pins: 5
- Protection class: I
- Product type
LED wet room light
- Operating voltage
240 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Rating per bulb
54 W
- Length
1745 mm
54 W
- Height
62 mm
- Width
59 mm
4000 K
- Colour
White
6500 lm
- Total luminous flux
6500 lm
- Light features
Suitable for wall mounting
Ceiling mount option
IP66
- Factory colour
White
- Material
Plastic
- Dim

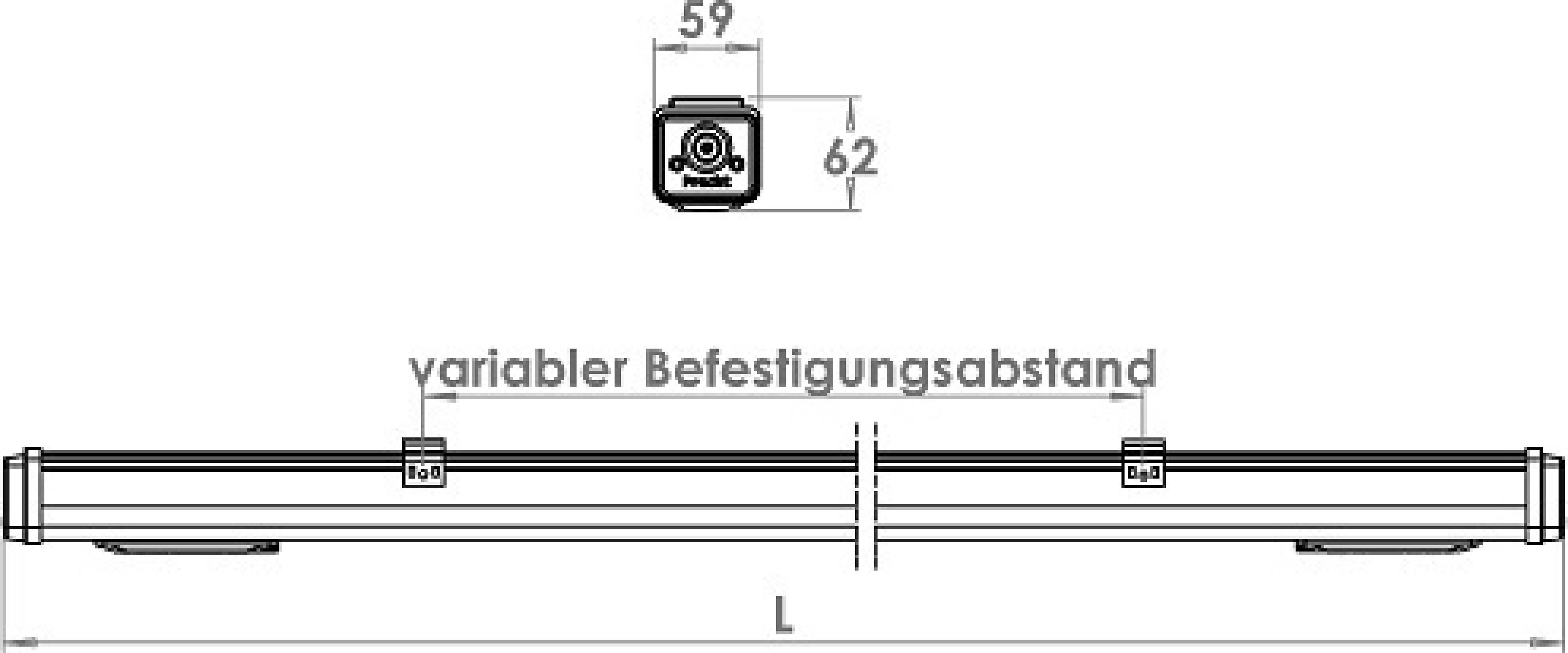

(L x W x H) 1745 x 59 x 62 mm
n.rel.
- Radiation angle
80°
- Light bulb included
Yes
- Colour temperature (max.)
4000 K
- Colour temperature range
4000 K (max)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2337442 Pracht 9171186-KATLA_REMADE LED wet room light LED (monochrome) 54 W White White
User & Safety Instructions
User & Safety Instructions 2337442 Pracht 9171186-KATLA_REMADE LED wet room light LED (monochrome) 54 W White White
Description
The first industrial lamp with 100% recycled plastics. Sustainable wet room add-on lamp with REMADE lamp housing (Reciclat made of post-industrial and post-consumer waste). IP66 - sealed thanks to short, age-resistant seals. Comfortable and fast installation through two spacious mains connection rooms and simple installation through variable mounting distances through THE SPLENDID BRACKET SYSTEM made of stainless steel. With highly efficient LEDs, wide beam with ceiling illumination. Bolted components - thus sustainably interchangeable. Suitable for ceiling and horizontal wall mounting, pendant and rail mounting with accessories possible.
