Pracht 9380145w-APOLLO_G2 LED wet room light LED (monochrome) 49 W White White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Splendor LED wet room lamp 4000K, DV5x2.5 APOLLO G2 #9380145w
- Power= 49 W
- Total luminous flux= 7200 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Connection type: Plug-in terminal
- Type of wiring: With through-wiring
- Rated ambient temperature: -25 °C - +45 °C.
- Operating device: LED operating device current-controlled
- Suitable for suspended engine mounting: Yes
- LED nominal current at constant current 400 mA
- Conductor cross-section 2.5 mm²
- Light output 147 lm/W
- Light emission: Direct
- Light splitter: Reflector
- Light distribution: Symmetrical
- With operating device: Yes
- With bulb: Yes
- Number of pins: 5
- Protection class: I
- Product type
LED wet room light
- Operating voltage
240 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Rating per bulb
49 W
- Length
1560 mm
49 W
- Height
152 mm
- Width
105 mm
4000 K
- Colour
White
7200 lm
- Total luminous flux
7200 lm
- Light features
Suitable for wall mounting
Ceiling mount option
IP65
- Factory colour
White
- Material
Plastic
- Dim
(L x W x H) 1560 x 105 x 152 mm
n.rel.
- Radiation angle
80°
- Light bulb included
Yes
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Colour temperature range
4000 - 4000 K
Documents & Downloads
Datasheet
Datasheet 2337400 Pracht 9380145w-APOLLO_G2 LED wet room light LED (monochrome) 49 W White White
User & Safety Instructions
User & Safety Instructions 2337400 Pracht 9380145w-APOLLO_G2 LED wet room light LED (monochrome) 49 W White White
Description

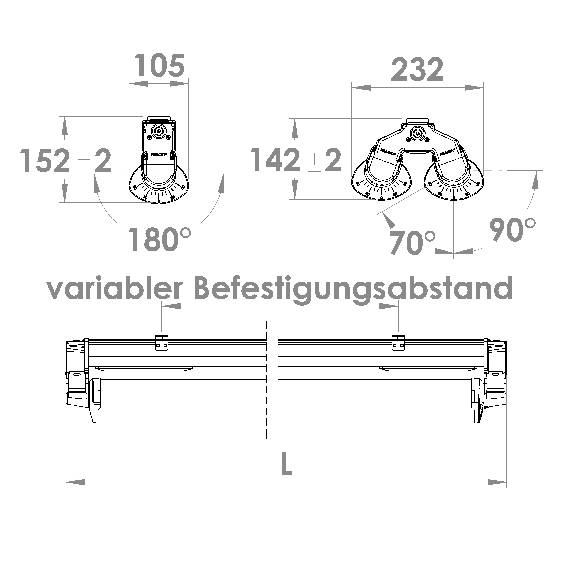

New generation of the proven APOLLO wet room reflector lamp. Shapely end pieces made of PBT, newly designed. Simple one-man mounting of the reflector through integrated plug-in device with direction sensors and captive, easy to close clips made of stainless steel. All-round closed housing made of white, glass-fiber reinforced, flame-resistant, largely acid and alkali-resistant polyester resin, protection class IP65. Reflector can be swiveled by 120°, with practical latching in 10° steps. Short, aging resistant silicone seals. Integrated electronic converter. Particularly robust due to thermal decoupling of LED and converter. Through-wiring possible up to max. 5x2,5mm² + 2x1,5mm². The permissible ambient temperature is reduced by 1°C per 2A load on the through-wiring Variable fixing distances through the splendid bracket system made of stainless steel, suitable for ceiling, pendulum and horizontal wall mounting.
