Pracht 96071121 96071121 LED hall light LED (monochrome) 180 W White
EAN:
Part number:
Item no:
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Bulb: LED not replaceable
- With bulb: Yes
- Mounting type: Construction
- Suitable for the number of bulbs: 1
- Suitable for side lighting: No.
- Version: Other
- Material of housing: Aluminium
- Housing color: White
- Voltage type AC
- Nominal current: 0.87 mA
- Rated LED current at constant current 3850 mA
- Operating device: LED operating device current-controlled
- Removable operating device: No.
- With operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: Yes
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Light distributor: Diffuser lens/-optic/-panel
- Light distribution: Symmetric
- Reflector: Without
- Material of the reflector: Without reflector
- Radiation angle: Extremely wide radiation >80°
- Color consistency (McAdam ellipse): SDCM5
- Energy efficiency of the permanently installed light bulb: Other
- Rated life L70/B50 at 25 °C: 144720 h
- Rated life L90/B10 at 25 °C: 38051 h
- Protection class (IP) IP65
- Protection class (NEMA): Other
- Impact strength: IK08
- Suitable for sports facilities: No.
- Protection class: I
- Lamp with limited surface temperature ""D-sign"": Yes
- Rated ambient temperature according to IEC62722-2-1: -40..50°C.
- Integrated emergency power supply: No.
- Suitable for emergency light: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Max. System power 180 W
- Rated light current according to IEC 62722-2-1: 27000 lm
- Light output 150 lm/W
- Light color: White
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Constant luminous flux regulation: No.
- Adjustable color temperature: No.
- Adjustable radiation angle: No.
- Luminous flux can be set: No
- Width 380 mm
- Height/depth 123 mm
- Length: 380 mm
- Outer diameter: 380 mm
- Type of wiring: Finish
- Connection type: Other
- With protective cover: No.
- Max. Number of lights circuit breaker B16: 4
- Max. Number of lamps line circuit breakers C16: 8
- Product type
LED hall light
- Type
Circular
- No. of bulbs
1
- Bulb type
LED (monochrome)
180 W
4000 K
- Colour
White
27000 lm
- Total luminous flux
27000 lm
- Light features
Dimmable
- Protection class
I
IP65
- Factory colour
White
- Material
Aluminium
- Dim
(Ø x H) 380 mm x 123.00 mm
n.rel.
- Colour rendering index
80-89
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Colour temperature range
4000 - 4000 K
- Width
380.00 mm
- Height
123.00 mm
- Length
380.00 mm
- Depth
123 mm
- (Ø)
380 mm
- Rated luminous flux
27000 lm
- Light bulb included
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3163508 Pracht 96071121 96071121 LED hall light LED (monochrome) 180 W White
Description

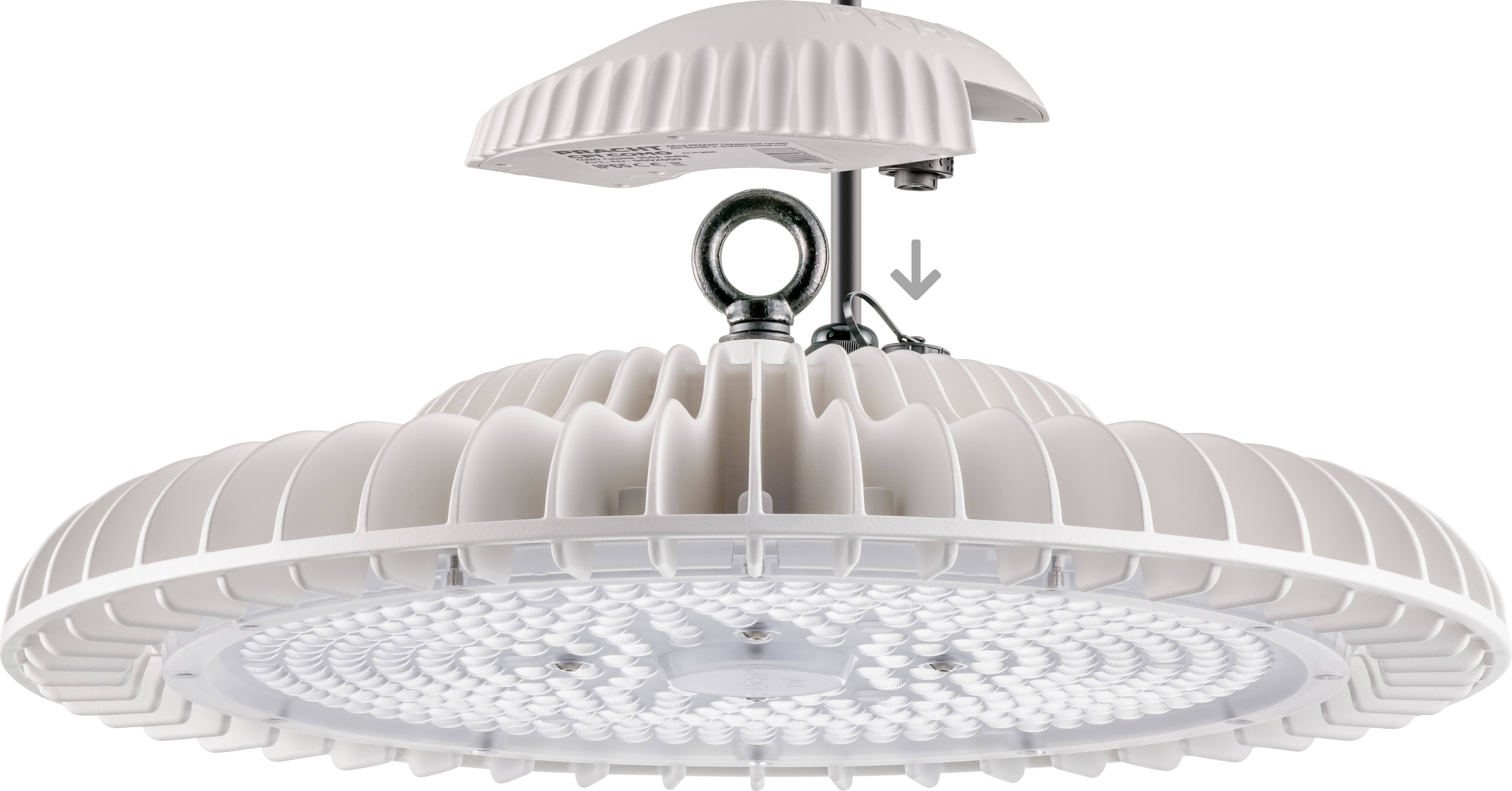

LED spotlight in modular round design with integrated ballast. Cover lenses with optimum inner structure for blinding limitation of PC or PMMA and different light distributors. Robust housing made of a magnesium aluminum alloy, white powder-coated. Short age-resistant silicone seals. With comfortable pre-assembled 1 m long connection cable with open cable ends. Can now be extended as XLS series. Extended Lighting Solutions by PRACHT. With the optional COMO Casambi module digital (Art.-No. 9602019), the DALI control is controlled via Casambi (BLE). Standard attachment by hanging loop, ceiling or horizontal wall mounting with other accessories possible, without through wiring.
