Pracht 9613012 9613012 LED hall light LED (monochrome) 79 W White
EAN:
Part number:
Item no:
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Bulb: LED not replaceable
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Suitable for side lighting: No.
- Version: Other
- Material of housing: Aluminium
- Housing color: White
- Voltage type AC/DC
- Nominal current: 0.38 mA
- Rated LED current at constant current 395 mA
- Operating device: LED operating device current-controlled
- Removable operating device: No.
- With operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimming function: Yes
- Light distributor: Diffuser lens/-optic/-panel
- Light distribution: Symmetric
- Reflector: Without
- Material of the reflector: Without reflector
- Radiation angle: Extremely wide radiation >80°
- Color consistency (McAdam ellipse): SDCM5
- Rated life L70/B50 at 25 °C: 102126 h
- Rated life L90/B10 at 25 °C: 27424 h
- Protection class (IP) IP65
- Protection class (NEMA): Other
- Impact strength: IK08
- Suitable for sports facilities: No.
- Protection class: I
- Lamp with limited surface temperature ""D-sign"": Yes
- Rated ambient temperature according to IEC62722-2-1: -40..50°C.
- Integrated emergency power supply: No.
- Suitable for emergency light: No.
- Filament testing according to IEC 60695-2-11:850°C - 30 s.
- Max. System power 79 W
- Rated light current according to IEC 62722-2-1: 13800 lm
- Light output 175 lm/W
- Light color: White
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Power factor 0.95
- Constant luminous flux regulation: No.
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Width 320 mm
- Height/depth 123 mm
- Length: 320 mm
- Outer diameter: 320 mm
- Type of wiring: Finish
- Connection type: Other
- With protective cover: No.
- Max. Number of lights circuit breaker B16: 13
- Max. Number of lamps line circuit breakers C16: 22
- Product type
LED hall light
- Type
Circular
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Rating per bulb
79 W
79 W
4000 K
- Colour
White
13800 lm
- Total luminous flux
13800 lm
- Light features
Incl. ballast
- Protection class
I
IP65
- Factory colour
White
- Material
Aluminium
- Dim
(Ø x H) 320 mm x 123.00 mm
n.rel.
- Colour rendering index
80-89
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Colour temperature range
4000 - 4000 K
- Width
320.00 mm
- Height
123.00 mm
- Length
320.00 mm
- Depth
123 mm
- (Ø)
320 mm
- Rated luminous flux
13800 lm
- Light bulb included
Yes
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3134931 Pracht 9613012 9613012 LED hall light LED (monochrome) 79 W White
Description

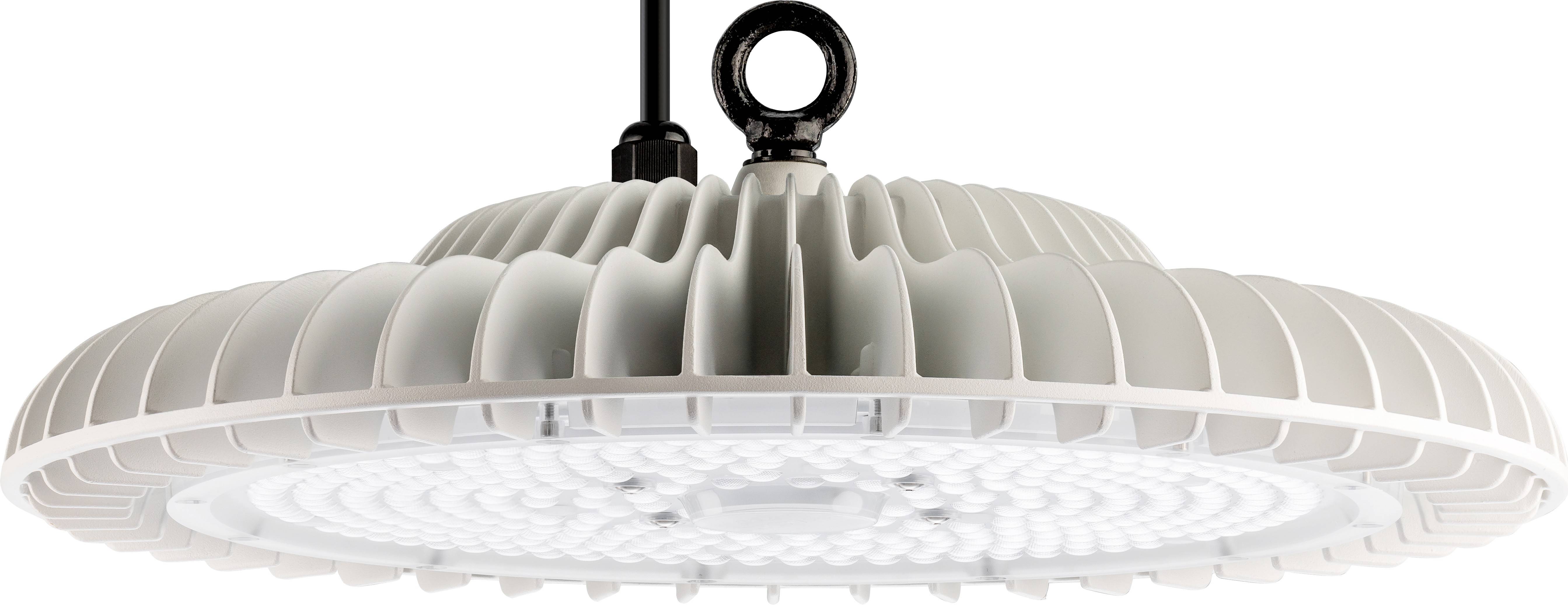

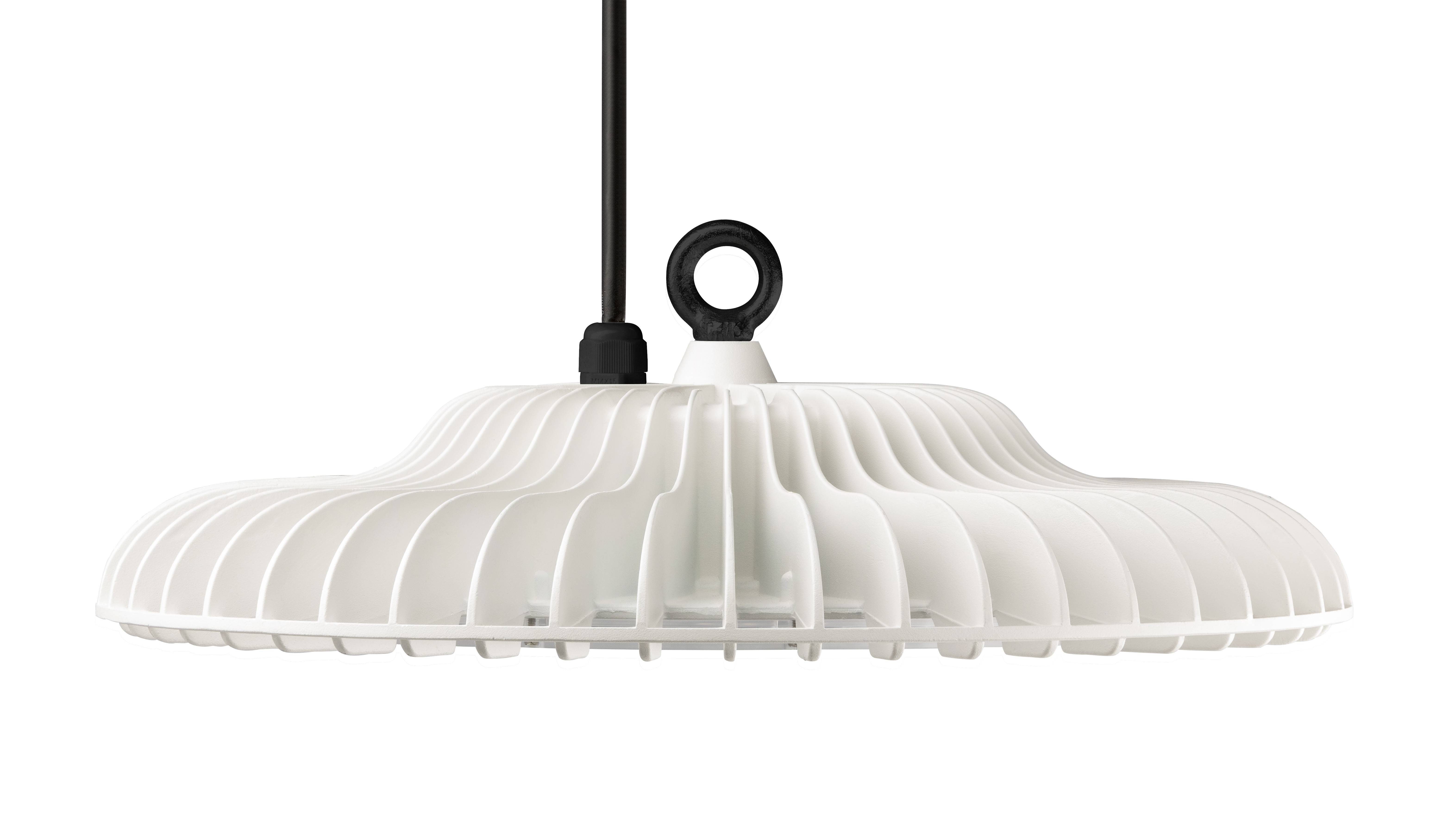

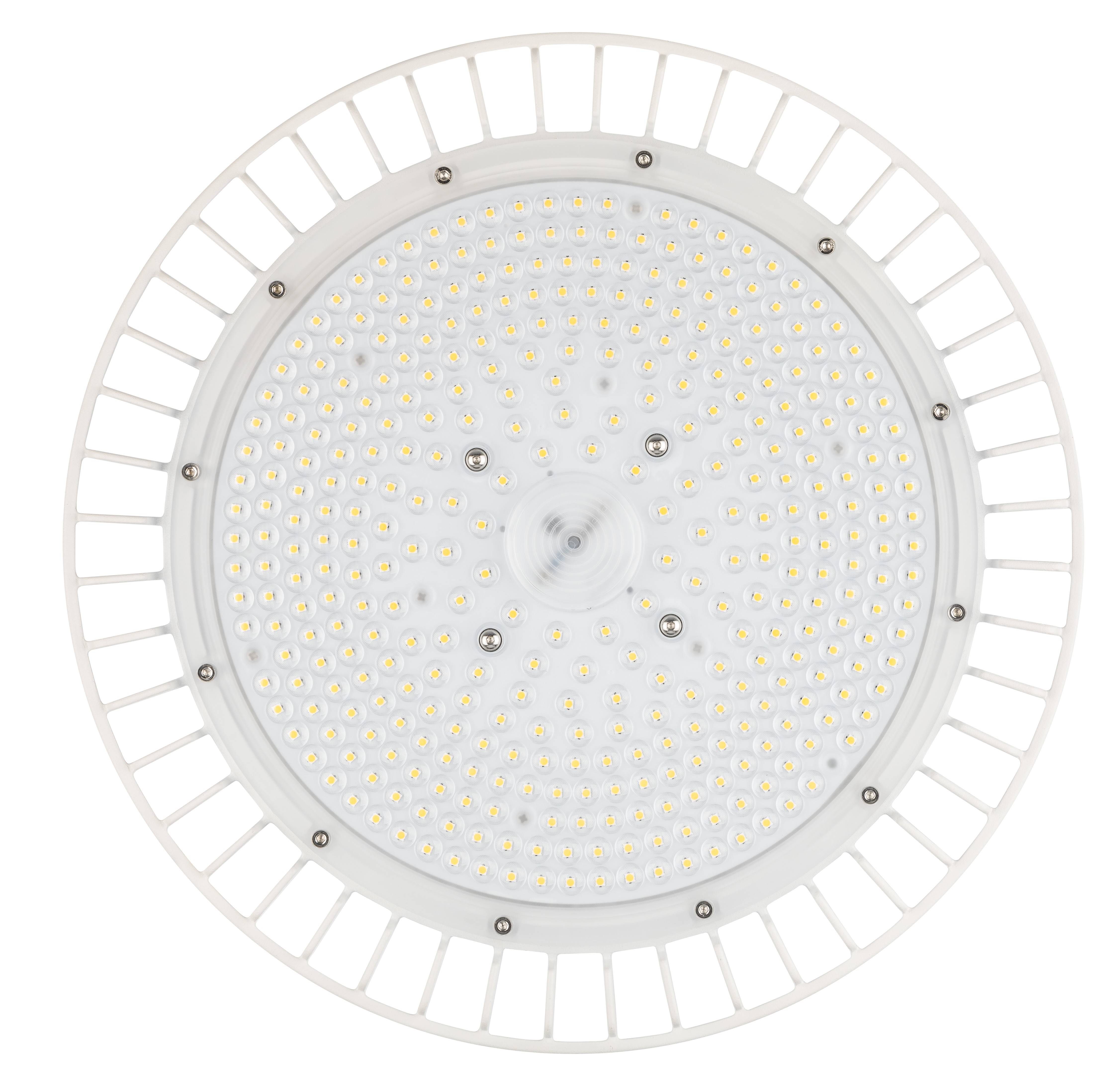

LED hall lamp COMO BL, wide-beam (100°), BEG-capable, and thanks to lower wattage with the same luminous flux now even more efficient (175 lm/W). Compact round design and integrated ballast, including short, age-resistant silicone seals. Cover lenses with optimum internal structure for glare limitation (up to UGR 20) from PC. White powder-coated casing made of aluminum alloy. Optimised for logistics halls, industrial buildings and cold stores. Standard attachment by loop for hanging. Ceiling or horizontal wall mounting with the help of further accessories. 1:1 exchange possible. Individual configuration and CASAMBI available in the Pro-Line version.
