Pracht ALPHABUS1127 Charging station No. of ports 1 11 kW
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Voltage type of supply voltage: AC
- Housing material: Plastic
- Suitable for wall mounting: Yes
- 4G (LTE) mobile phone standard: No.
- With display: No.
- Mains frequency: 50/60 Hz.
- Compatible with Apple HomeKit: No.
- Compatible with Amazon Alexa: No.
- Compatible with Google Assistant: No.
- IFTTT support available: No.
- Input voltage 207 – .253 V
- Rated connection power 11 kW
- Output voltage DC 0 V
- Output voltage AC 50 Hz 220..240 V
- Output voltage AC 60 Hz: 0 V
- Number of loading points: 1
- Max. Power per charging point 11 kW
- Length of charging cable 7.5 m
- Portable: No.
- With house connection box (HAK): No.
- With overvoltage protection module: No.
- Number of FI switches type A: 1
- DC fault current detection: Yes
- Contactor contact welding detection: No.
- With circuit breaker: No.
- Network-compatible as Master: No.
- Network-compatible as Extender: Yes
- Network connection via LAN: Yes
- Network connection via WLAN: Yes
- Mobile phone standard 5G: No
- With energy meter: Yes
- With key switch: No.
- With integrated RFID card reader: Yes
- NFC (Near Field Communication): No.
- Static load management integrated: No.
- Suitable for dynamic load management: No.
- Open Charge Point Protocol (OCPP) Version: Other
- Plug and charge (ISO 15118): No.
- Operation and configuration via APP: YES
- Export of the load history: Yes
- Backend included: Yes
- True-to-law: No.
- Suitable for cable cross-sections of 1.5..10 mm²
- Number of charging couplings type 2: 1
- Max. Output current DC 0 A
- Product type
Charging station
- No. of ports
1
- Charging capacity
11 kW
- No. of phases
3-phase
- Nominal voltage
220 V
240 V
- Cable length
7.5 m
IP54
IK08

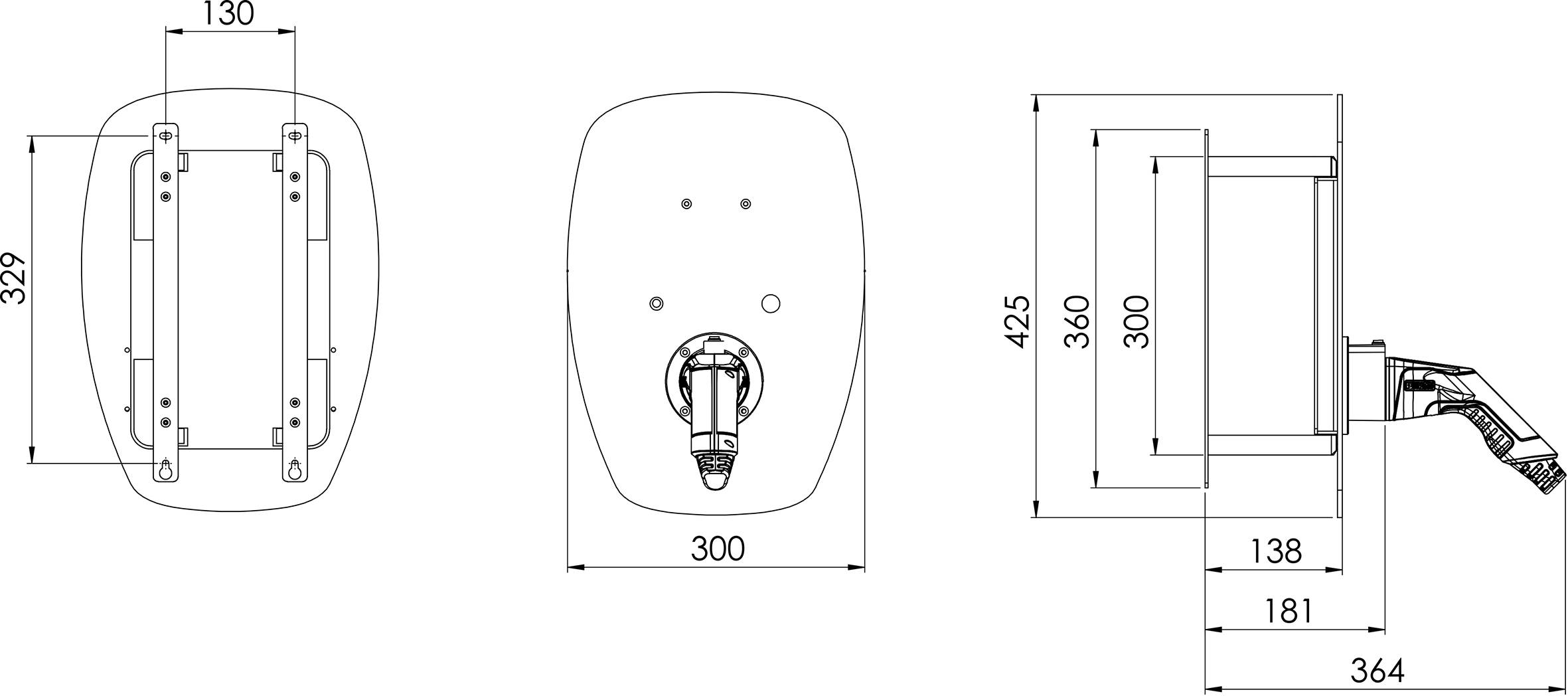

- Width
300 mm
- Height
425 mm
- Depth
181 mm
Documents & Downloads
Datasheet
Datasheet 3836379 Pracht ALPHABUS1127 Charging station No. of ports 1 11 kW
User & Safety Instructions
User & Safety Instructions 3836379 Pracht ALPHABUS1127 Charging station No. of ports 1 11 kW
Description
Discover the Wallbox Alpha MONO XT BUSINESS - the ideal solution for companies and commercial applications, thanks to the integrated MID counter. With its discreet design and extended functions, the Alpha MONO XT BUSINESS sets new standards for electro-mobility in the workplace. The Alpha MONO XT BUSINESS offers a charging power of 11 kW, WAS enables a daily charging of your electric vehicle. An outstanding feature of the Alpha MONO XT BUSINESS is its measurement in accordance with the laws of the calibration, which ensures accurate billing and transparency. This feature is particularly important for companies who want to use the charging station for billing purposes or for cost tracking. In addition, the Alpha MONO XT BUSINESS has an RFID share that enables secure and user-friendly authentication. By integrating RFID technology, authorized users can easily and securely release the charging station, WAS can control access and prevent unauthorized use. Designed to meet the needs of businesses and commercial institutions, the Alpha MONO XT BUSINESS provides a reliable, powerful and user-friendly solution for electrical vehicle charging in the workplace.
