Pracht ALPHADUO1206 Charging station No. of ports 2 13.8 kW
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Voltage type of supply voltage: AC
- Housing material: Plastic
- Suitable for wall mounting: Yes
- 4G (LTE) mobile phone standard: No.
- With display: No.
- Mains frequency: 50/60 Hz.
- Compatible with Apple HomeKit: No.
- Compatible with Amazon Alexa: No.
- Compatible with Google Assistant: No.
- IFTTT support available: No.
- Input voltage 207 – .253 V
- Rated connection power 13.8 kW
- Output voltage DC 0 V
- Output voltage AC 50 Hz 220..240 V
- Output voltage AC 60 Hz: 0 V
- Number of loading points: 2
- Max. Power per charging point 11 kW
- Length of charging cable 7.5 m
- Portable: No.
- With house connection box (HAK): No.
- With overvoltage protection module: No.
- Number of FI switches type A: 1
- DC fault current detection: Yes
- Contactor contact welding detection: No.
- With circuit breaker: No.
- Network-compatible as Master: No.
- Network-compatible as Extender: Yes
- Network-compatible via LAN: No.
- Network-compatible via WLAN: No.
- Mobile phone standard 5G: No
- With energy meter: No.
- With key switch: No.
- With integrated RFID card reader: Yes
- NFC (Near Field Communication): No.
- Static load management integrated: Yes
- Suitable for dynamic load management: Yes
- Open Charge Point Protocol (OCPP) Version: Other
- Plug and charge (ISO 15118): No.
- Operation and configuration via APP: No.
- Export of the load history: No.
- Backend included: No.
- True-to-law: No.
- Suitable for cable cross-sections of 1.5..16 mm²
- Number of charging couplings type 2: 2
- Max. Output current DC 0 A
- Product type
Charging station
- No. of ports
2
- Charging capacity
13.8 kW
- No. of phases
3-phase
- Nominal voltage
220 V
240 V
- Cable length
7.5 m
IP54
IK08

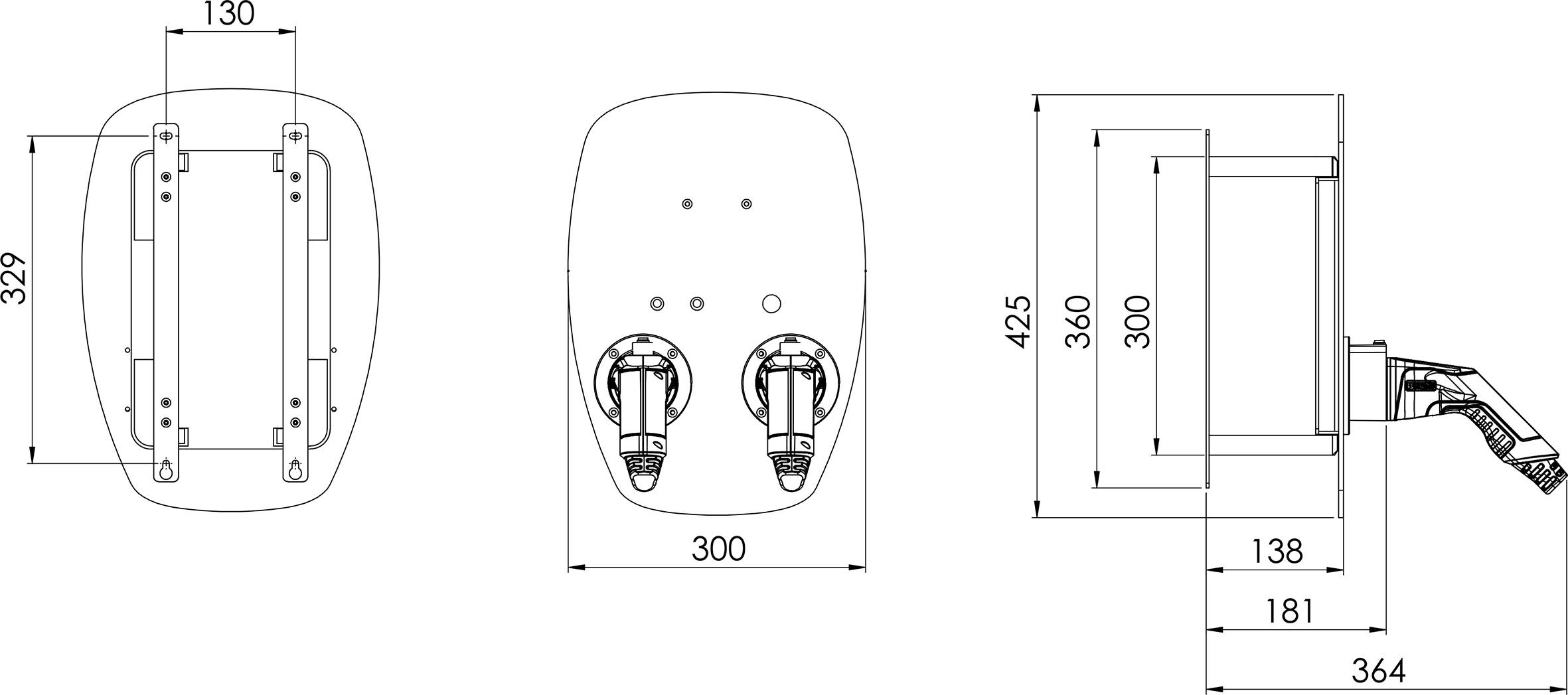

- Width
300 mm
- Height
425 mm
- Depth
181 mm
Documents & Downloads
Datasheet
Datasheet 3836391 Pracht ALPHADUO1206 Charging station No. of ports 2 13.8 kW
User & Safety Instructions
User & Safety Instructions 3836391 Pracht ALPHADUO1206 Charging station No. of ports 2 13.8 kW
Description
EASY. CHARGE. Wallbox for 1 connection cable for charging all electric vehicles and plug-in hybrid with IEC 62196-2 connection. 2x11kW charging points. With simultaneous charging 2 x 6.9 kW. Quick product availability through MADE IN GERMANY. Through wall or pedestal mounting the Alpha DUO Ideal fits in the local conditions. Robust industrial design with structured front panel for use in indoor and unprotected outdoor areas (weather protection roof). Long charging cable (7.5m) for convenient charging. Independent of the installation location (wall, pedestal) individual optimum cable handling. Multi-colored LED-display for clear status notification of the Wallbox. Extensive high-quality branded accessories: Weather protection (NR9001), wall mount (NR9004), stand with integrated weather protection roof & cable holder (NR9000), RFID-cards (NR9003), RFID-Module (NR9002) etc. The optional RFID-Module protects against unauthorized use.
