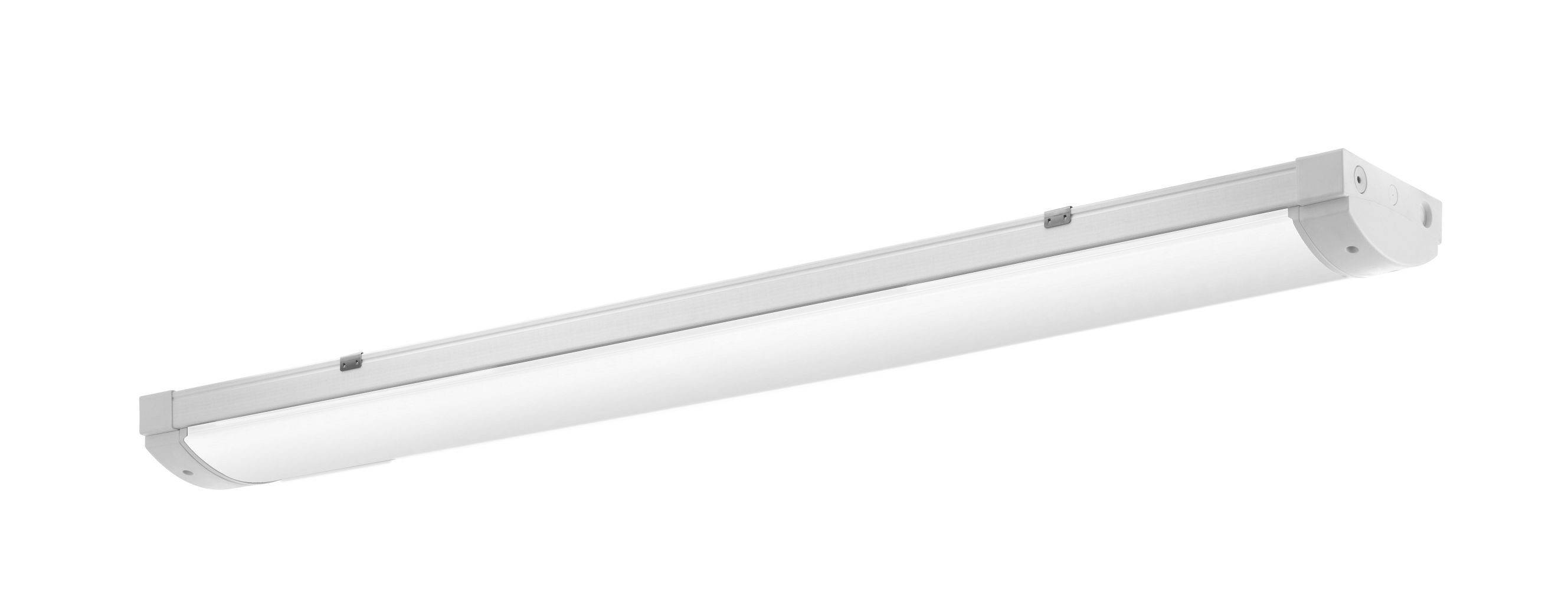

Pracht APOLLO G2 #9480134m LED wet room light 34 W
EAN:
Part number:
Item no:
Highlights & Details
Pracht LED moist room light 840 APOLLO G2 #9480134m
- Power= 34 W
- Total luminous flux= 7200 lm
Technical specifications
- Width 105 mm
- Number of pins: 5
- Protection class (IP) IP65
- Protection class: I
- Impact strength: IK08
- Housing material: Plastic
- Protection class (NEMA): Other
- Length: 1260 mm
- Nominal current: 0.16 mA
- Connection type: Plug-in terminal
- Voltage type AC/DC
- LED bulb, replaceable
- Operating device: LED operating device current-controlled
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Light color: White
- Constant luminous flux regulation: No.
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Height/depth 152 mm
- Type of wiring: With through wiring
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for mounting on the panel: Yes
- Suitable for panel mounting: No.
- Suitable for wall mounting: Yes
- Suitable for pendulum suspension: Yes
- Suitable for ceiling mounting: Yes
- With motion detector: No.
- With light sensor: No.
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Housing color: White
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimming function: Yes
- Light distribution: Symmetric
- Light emission: Direct
- Max. System power 34 W
- Rated light current according to IEC 62722-2-1: 7200 lm
- Covering of the lamp with thermal insulation material is possible: No.
- Operation via Bluetooth: No.
- Suitable for light band configuration: No.
- Suitable for screen workstations according to EN 12464-1: No.
- Surface protection housing: Untreated
- Cover material: Plastic opal
- Design of grid: Without
- Light distributor: Reflector
- Color consistency (McAdam ellipse): SDCM3
- Rated ambient temperature according to IEC62722-2-1: -25..45°C.
- Suitable for emergency light: No.
- Integrated emergency power supply: No.
- With air vents: No.
- Light output 212 lm/W
- Power factor 0.9
- Conductor cross-section: 2.5 mm²
- Compatible with Casambi: No.
- Version: Other
- S/N ratio (THD): 15
- Lamp with limited surface temperature "D-sign": Yes
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Photobiological safety according to EN 62471: RG1
- Max. Number of lights circuit breaker B16: 16
- Max. Number of lamps line circuit breakers C16: 26
- Glare limiter (UGR): 24
- Rated life L70/B50 at 25 °C: 203500 h
- Flicker value PST LM: 1
- Strobe effect value SVM: 0.4
- Product type
LED wet room light
- No. of bulbs
1
34 W
- Total luminous flux
7200 lm
n.rel.
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3549296 Pracht APOLLO G2 #9480134m LED wet room light 34 W
Description
APOLLO G2 ULTRA 1260mm PO 1x34W 080° 7200lm, 4000K, SK I, with DV 5x2.5mm². The plastic parts of this lamp are made of 21% recycled material. The APOLLO G2 ULTRA moist room light: Maximum efficiency for high-operating systems, IP65 protection, swiveling reflectors, acid-resistant housing and simple one-man assembly, reliable and powerful for any challenge
Flexibly configurable free beamer with rotating light. Single-flame or dual-flame reflectors. To a large extent acid and alkali-resistant by (PRACHT-OPAL). Compatible with rail systems for rapid assembly with PRAG-EASY-CONNECT. IFS compliant. ULTRA efficiency thanks to EEK A components).
