Technical specifications
- Ranges:
- Radiation intensity of 0 to 3,000 W/m2
- Operating temperature 10 to +55°C
- Linearity <1% (up to 3,000 W/m2)
- Resolution 0.01 W/m2
- Cosine correction: Corrects up to 80° angle of incidence
- Display LCD
- IP 40 protection
- 1x 9 volt, block battery 6LR61 size
- Dimensions and weight 125 x 75 x 45 mm, 190 g
- Product type
Photon flux density logger
Manufacturer's standards (no certificate)
- Type
30004071
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2986510 Pronova 30004071 Photon flux density logger
Description
Measurement of the photon current density

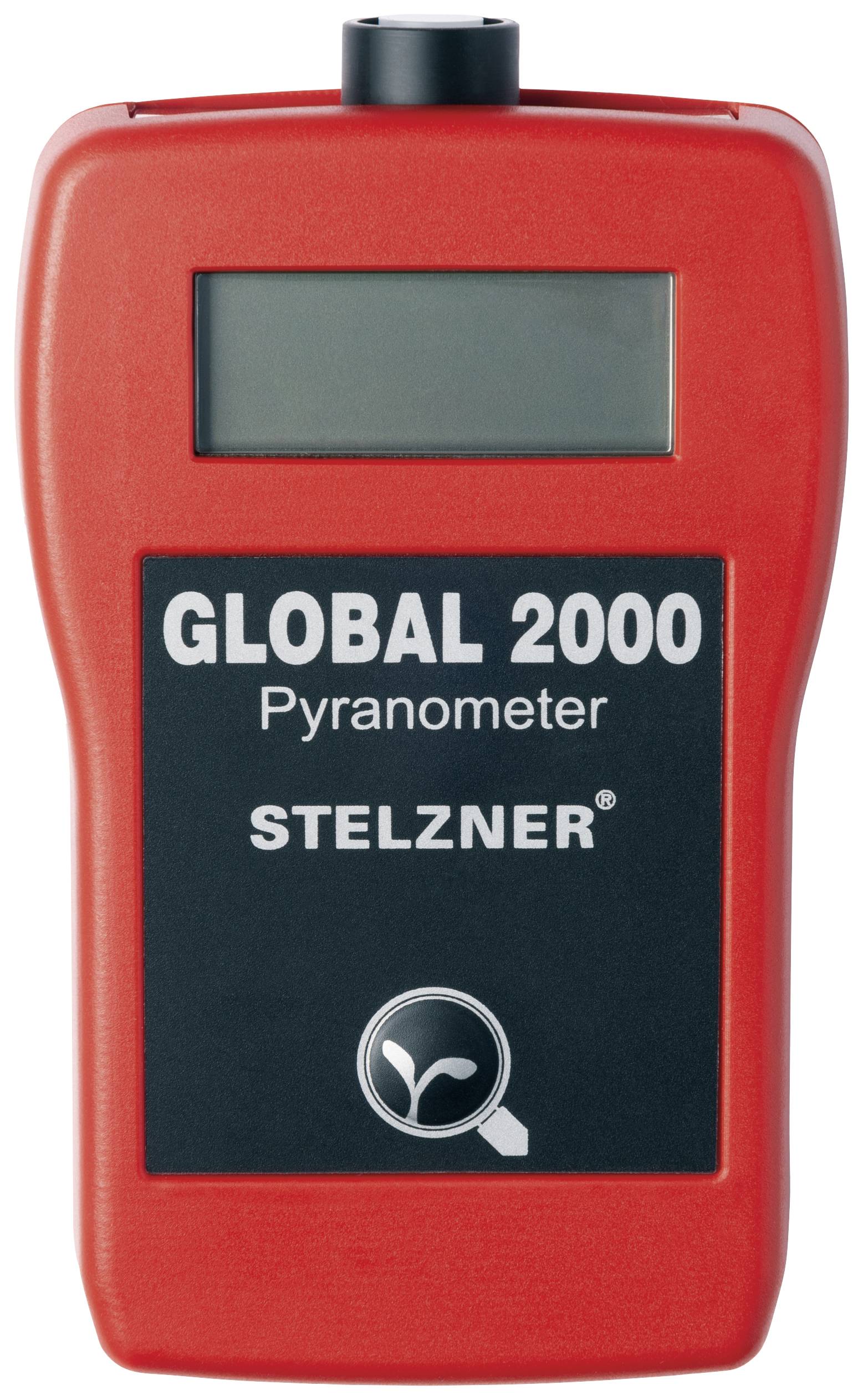

The GLOBAL 2000 measures global solar radiation in a wavelength range of 300 – 1100 nm. The device detects both direct sunlight and diffuse sky radiation, and emits these as radiation intensity in W/m2. The cosine-corrected sensor enables a precise measurement to be made at any time of the day. Thus, the GLOBAL 2000 is Ideal for use in agriculture and research.
This text is machine translated.
The GLOBAL 2000 measures global solar radiation in a wavelength range of 300 – 1100 nm. The device detects both direct sunlight and diffuse sky radiation, and emits these as radiation intensity in W/m2. The cosine-corrected sensor enables a precise measurement to be made at any time of the day. Thus, the GLOBAL 2000 is Ideal for use in agriculture and research.
This text is machine translated.
