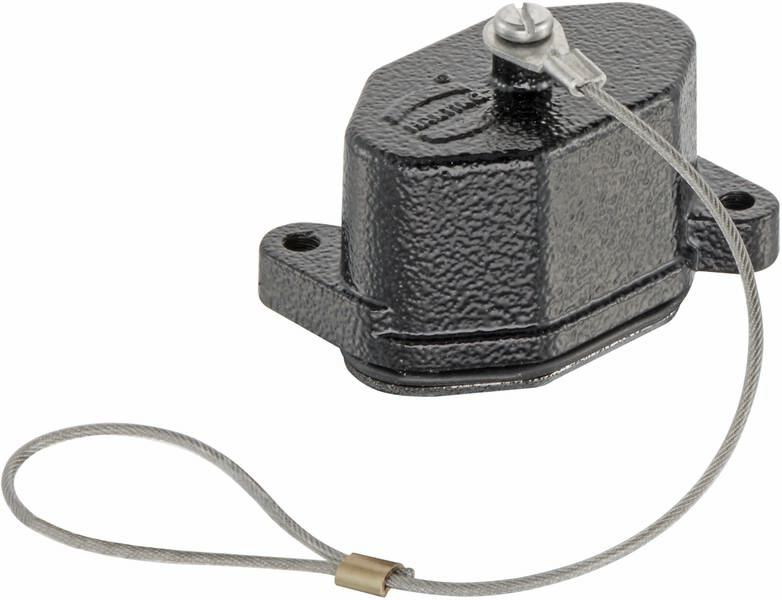

Protective cap 09407035414 HARTING Content: 1 pc(s) Protective cap
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Protective cap
Type
09 40 703 5414
Manufacturer part #
09407035414
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- Type of locking: Screw lock
- Temperature limit: -40 ... +125 °C
- Net weight: 44 g
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Protection class according to IEC 60529: IP65;IP68;IP69 / IPX9K according to ISO 20653
- Accessory type: Cover cap
- Description of accessories: For sleeve casing; with fixing cord
- Design size 3 A
- Approvals DNV GL
- Housing series: HAN® HPR
- Material housing: Zinc-Druckguss
- Surface of housing: Powder-coated
- Colour of housing: RAL 9005 (jet black)
- Material sealing: NBR
- Protection class according to UL 50 / UL 50E:4;4X;12
- Tightening torque screw locking: 2 Nm
- Packaging type
Piece
- Type
09 40 703 5414
- Product type
Protective cap
- Manufacturer part #
09407035414
- Content
1 pc(s)
- Max. temperature
125 °C
Black
Other
Gland nut
-40-125 °C
Other
TRUE
IP65
TRUE
Documents & Downloads
Datasheet
Datasheet 3005585 Protective cap 09407035414 HARTING Content: 1 pc(s) Protective cap
Datasheet 3005585 Protective cap 09407035414 HARTING Content: 1 pc(s) Protective cap
User & Safety Instructions
User & Safety Instructions 3005585 Protective cap 09407035414 HARTING Content: 1 pc(s) Protective cap
Description
Cover cap, for sleeve casing, with attachment string, size: 3 A, screw locking, Material housing: zinc die-cast, powder coated
