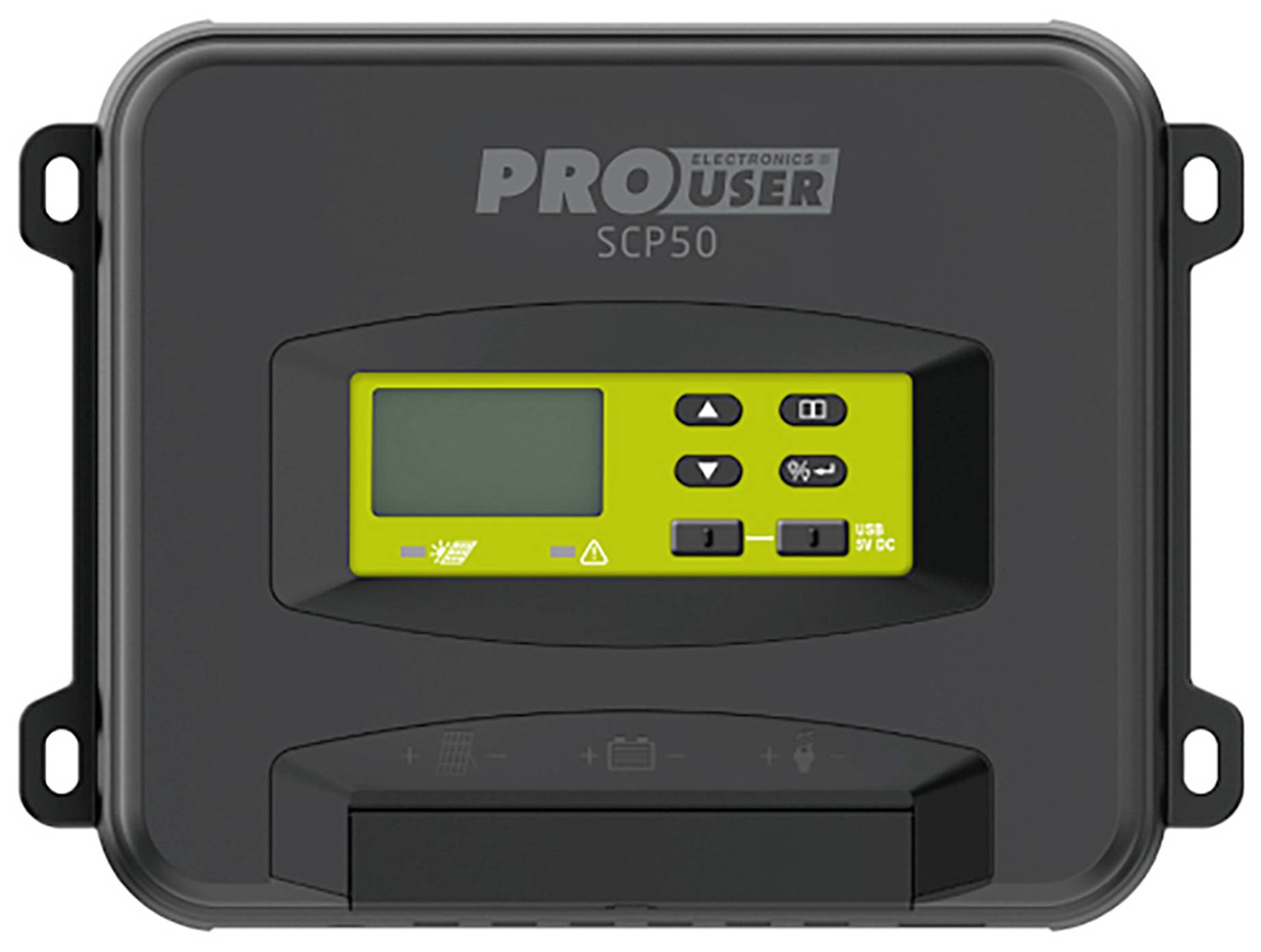

ProUser SCP50 Charge controller PWM 12 V, 24 V, 36 V, 48 V 50 A
EAN:
Part number:
Item no:
Number
Total (€ 88.23 / piece)
€ 88.23
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Max. Solar input voltage 100V
- With APP control
- Product type
Charge controller
- Nominal voltage
12 V
24 V
36 V
48 V
- Module power (max.)
3000 Wp
- Temperature range
-10 °C to 40 °C
- Charging current (max.)
50 A
- Matching rechargeable battery
Lead acid membrane
Lead-acid
LiFePO4
SLA
- Control type
PWM
- Dim
(L x W x H) 240 x 175 x 65 mm
- Weight
1120 g
- Features
USB output
Temperature sensor jack
Selectable end-of-charge voltage
Power cut-off
- Current load
50 A
- Module load (max.)
50 A
- Width
175 mm
- Height
65 mm
- Length
240 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2898856 ProUser SCP50 Charge controller PWM 12 V, 24 V, 36 V, 48 V 50 A
Description
This regulator charges a battery as efficiently as possible and protects it
Voltage fluctuations and low discharge. The SCP30 charge controller 30A
Has PWM (Pulse Width Modulation) technology.
This text is machine translated.
Voltage fluctuations and low discharge. The SCP30 charge controller 30A
Has PWM (Pulse Width Modulation) technology.
This text is machine translated.
Features
- Technology PWM
- Battery types SLA/AGM/LiFePO4 (12V)
- Max. Input voltage 100V
- Maximum 750W solar module at 12 V
- Maximum 1500W solar panel at 24 V
- Maximum 2250W solar module at 36 V
- Maximum 3000 W solar module at 48 V
- Max. Output 50 A
- USB-output 2x 5V / 2.4A
- Operating temperature -10 to 40 degrees
Scope of delivery
- Temperature sensor;
- User manual
