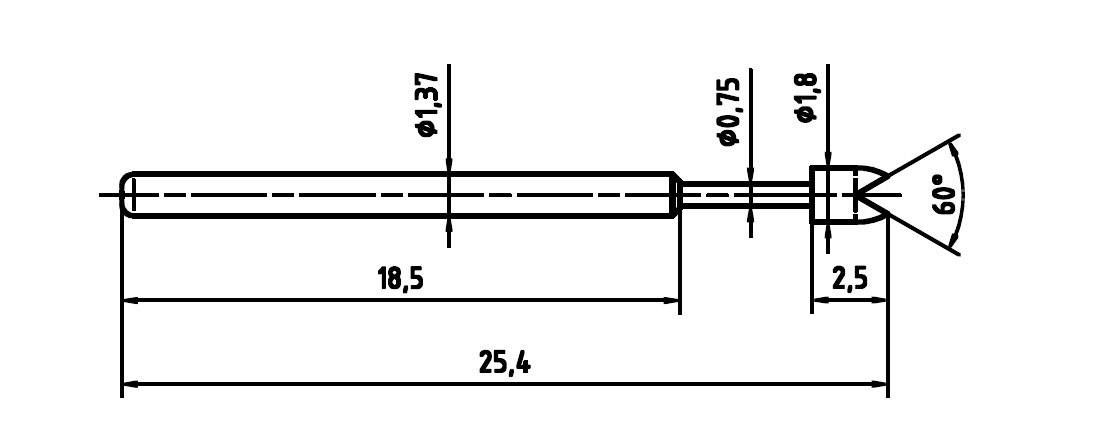

Stroke drawing/circuit diagram
PTR Hartmann 1015-G-0.7N-AU-1.8 Precision test tip
EAN:
Part number:
Item no:
Total (€ 1.99 / piece)
€ 1.99
incl. VAT
14-day return policy included
Technical specifications
- Continuity Resistance: ≤ 30 mΩ
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Refining
Gold
- Type
G
- Type
1015-G-0.7N-AU-1.8
- CS
2.54 mm
- Pitch of spring
4.4 mm
- Pin Ø
1.37 mm
- Pin length
25.4 mm
- Spring force
1.5 N
- Resistance
≤30 mΩ
- Nominal current (details)
3.0 A
- RoHS-compliant
Yes
- Product type
Precision test tip
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 737176 PTR Hartmann 1015-G-0.7N-AU-1.8 Precision test tip
Description
Simply executed precision test pin with spring contact for the construction group and circuit board test
Hints
Type coding:
xxxx (Serie) - xx (headform) - x.xN (contact pressure) - xx (Refinement) - xx.xx (Top-Ø in mm/ topmaterial)
Refinement: AU = Gold, RH = Rhodium, NI = Nickel; top material: M = brass, C = Berylliumbronze.
