Buy PTR Hartmann 2021-Q-1.5N-NI-1.3 Precision test tip

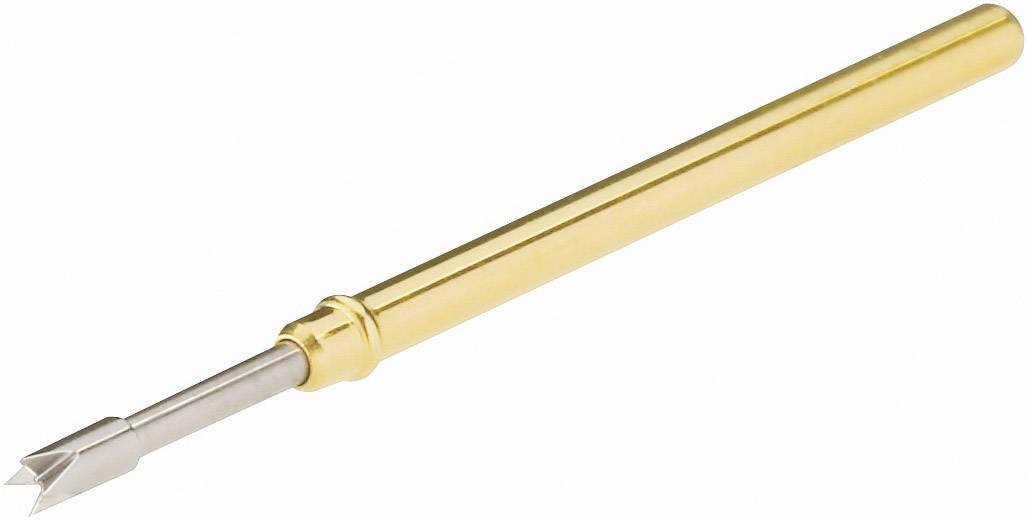

A golden ballpoint pen with a silver tip, suitable for precise writing or drawing.

Image similar

Technical drawing of a cylindrical object with precise dimensions. Main lengths: 32.3 mm and 10.3 mm, diameter ranging from 1.3 mm to 2.0 mm.

A stylised drawing of a thorn with three teeth at one end and the letter 'Q' beside it.

1/3

Image similar

Fast track dispatch on Fri, 11 Sep

236 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 2.93 / piece)

€ 2.93

plus VAT.

Report legal concerns

Technical specifications

Continuity Resistance: ≤ 25 mΩ

Nominal current: 3 A

Nominal current - rounded value: 3 A

Refining: Nickel

Type: Q

Type: 2021-Q-1.5N-NI-1.3

CS: 2.54 mm

Pitch of spring: 5.3 mm

Pin Ø: 1.65 mm

Pin length: 32.3 mm

Spring force: 1.5 N

Resistance: ≤25 mΩ

Nominal current (details): 3 A

RoHS-compliant: Yes

Product type: Precision test tip

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 737019 PTR Hartmann 2021-Q-1.5N-NI-1.3 Precision test tip

Description

Double precision test jack with spring contact for components and printed circuit board test. Consisting of guide housing with spring contact pin with probe. The sleeve is ordered separately, and is installed in a board or Plexiglas disk to hold the test jack. This allows the test jack to be removed or replaced easily.

Hints

Type coding:

xxxx (Series) - xx (head shape) - x.xN (contact button) - xx (processing) - xx.xx (head-Ø in mm/head material)

Processing: AU = Gold, RH = Rhodium, NI = Nickel; Head material: M = Brass, C = Beryllium bronze.
