Name: PTR Hartmann PCB connector Total number of pins 12 Contact spacing: 3.5 mm 51550120001D 1 pc(s) Piece
Brand: PTR Hartmann
SKU: 3590080

A green terminal block connector with five slots, used for connecting electrical wires in electronic devices and circuitry.

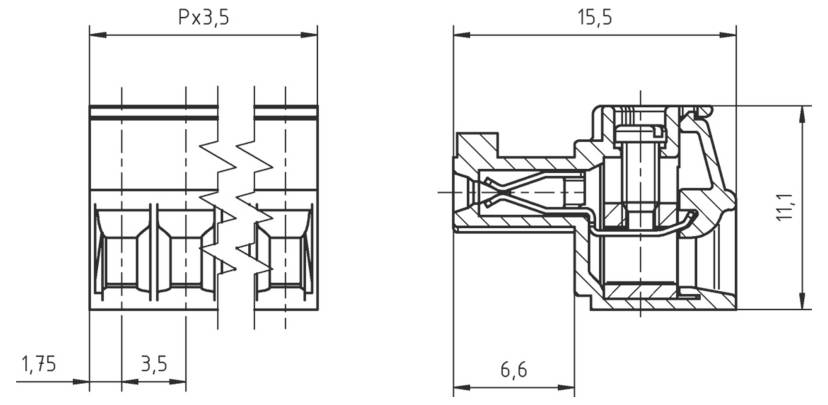

'Technical drawing of a cylindrical component with cross-sectional and side views, showing detailed measurements in millimeters.'

1/2

Image similar

Product type

PCB connector

3.5 mm

Total number of pins

Packaging type

Piece

Connector system

wire-to-board

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Content: 1 pc(s)
Total number of pins: 12

Our service for you

Technical specifications

Packaging type: Piece

Product type: PCB connector

Connector system: wire-to-board

Features: encodable

CS: 3.5 mm

Total number of pins: 12

Content: 1 pc(s)

Stripping length (max.): 7.0 mm

Connection: Screw terminal

Case material: PA 6.6

Manufacturer part #: 51550120001D

Factory colour: Green

Contact material: Bronze

Length: 42.00 mm

max. cross section: 1.5 mm²

Min. cross section: 0.14 mm²

RoHS-compliant: Yes

Max. temperature: 105 °C

Min. temperature: -40 °C

Type: AK1550/12-3.5-GRÜN
