Name: PTR Hartmann PCB connector Total number of pins 7 Contact spacing: 3.5 mm 51350070001G 1 pc(s) Piece
Brand: PTR Hartmann
SKU: 3590044

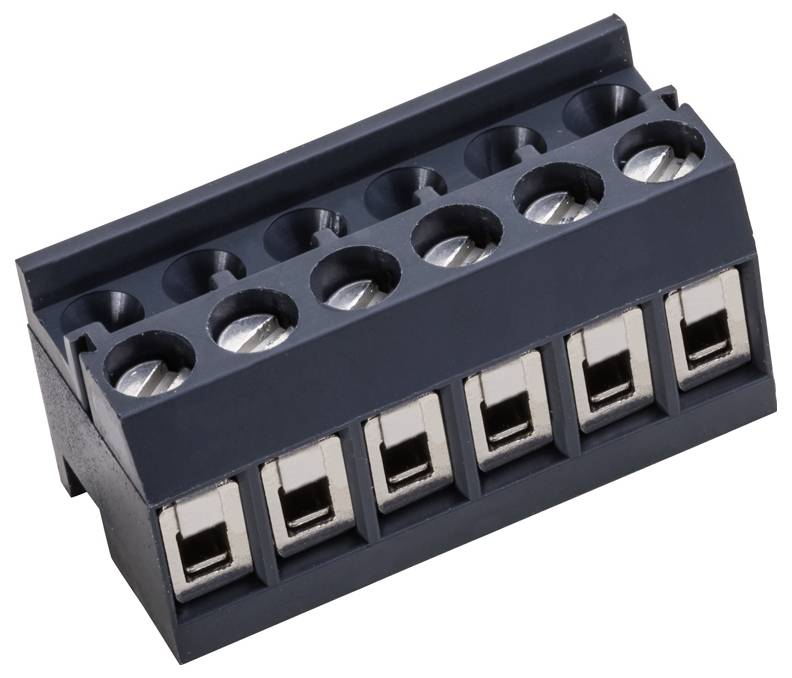

A six-position terminal block connector with screw terminals, commonly used in electrical applications for wire connection.

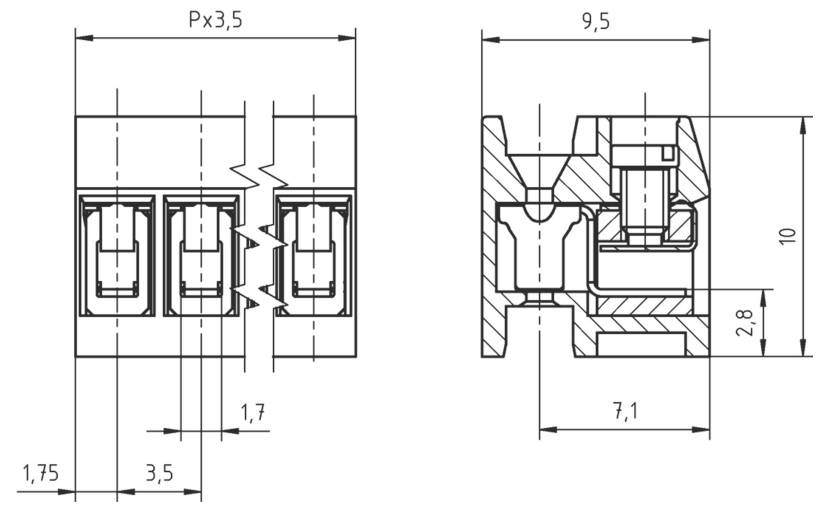

Technical drawing of a connector with dimensions: width 9.5mm, height 10mm, and depth 7.1mm. Shows internal and external details.

1/2

Image similar

Product type

PCB connector

Connector type

straight

3.5 mm

Total number of pins

Packaging type

Piece

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Content: 1 pc(s)
Total number of pins: 7

Our service for you

Technical specifications

Packaging type: Piece

Product type: PCB connector

Connector type: straight

Connector system: wire-to-board

Features: + wire protection

CS: 3.5 mm

Total number of pins: 7

Content: 1 pc(s)

Stripping length (max.): 5.0 mm

Connection: Screw terminal

Actuation direction: Parallel (to the PCB)

Case material: PA 6.6

Manufacturer part #: 51350070001G

Factory colour: Grey

Contact material: Bronze

Length: 24.50 mm

max. cross section: 1.5 mm²

Min. cross section: 0.08 mm²

RoHS-compliant: Yes

Connector orientation: Parallel (to the PCB)

Max. temperature: 105 °C

Min. temperature: -40 °C

Type: AK1350/7DS-3.5-GRAU
