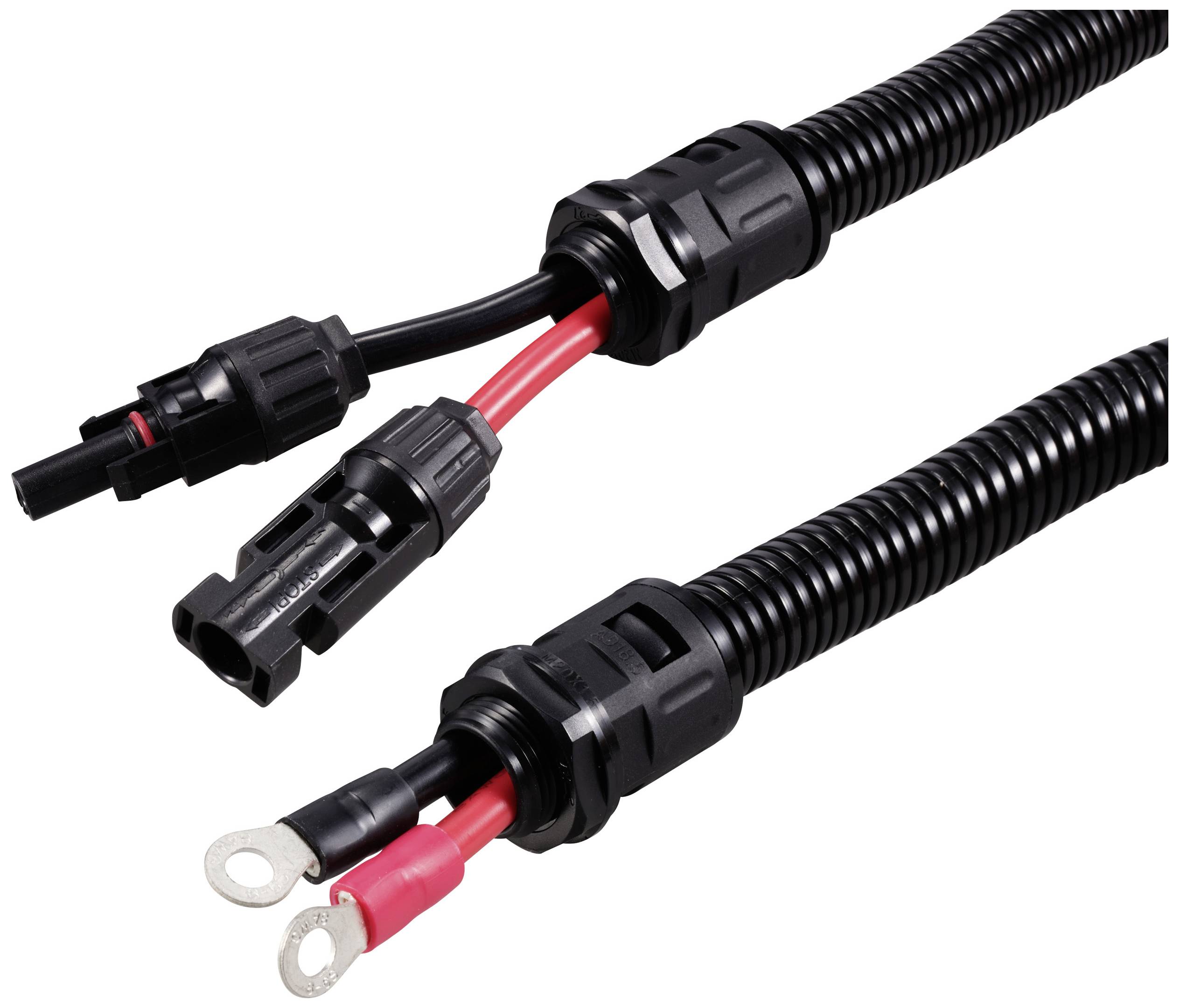

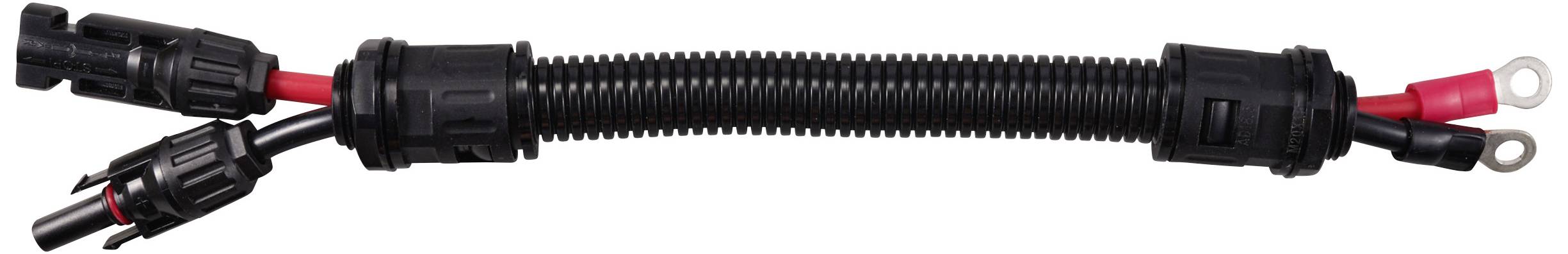

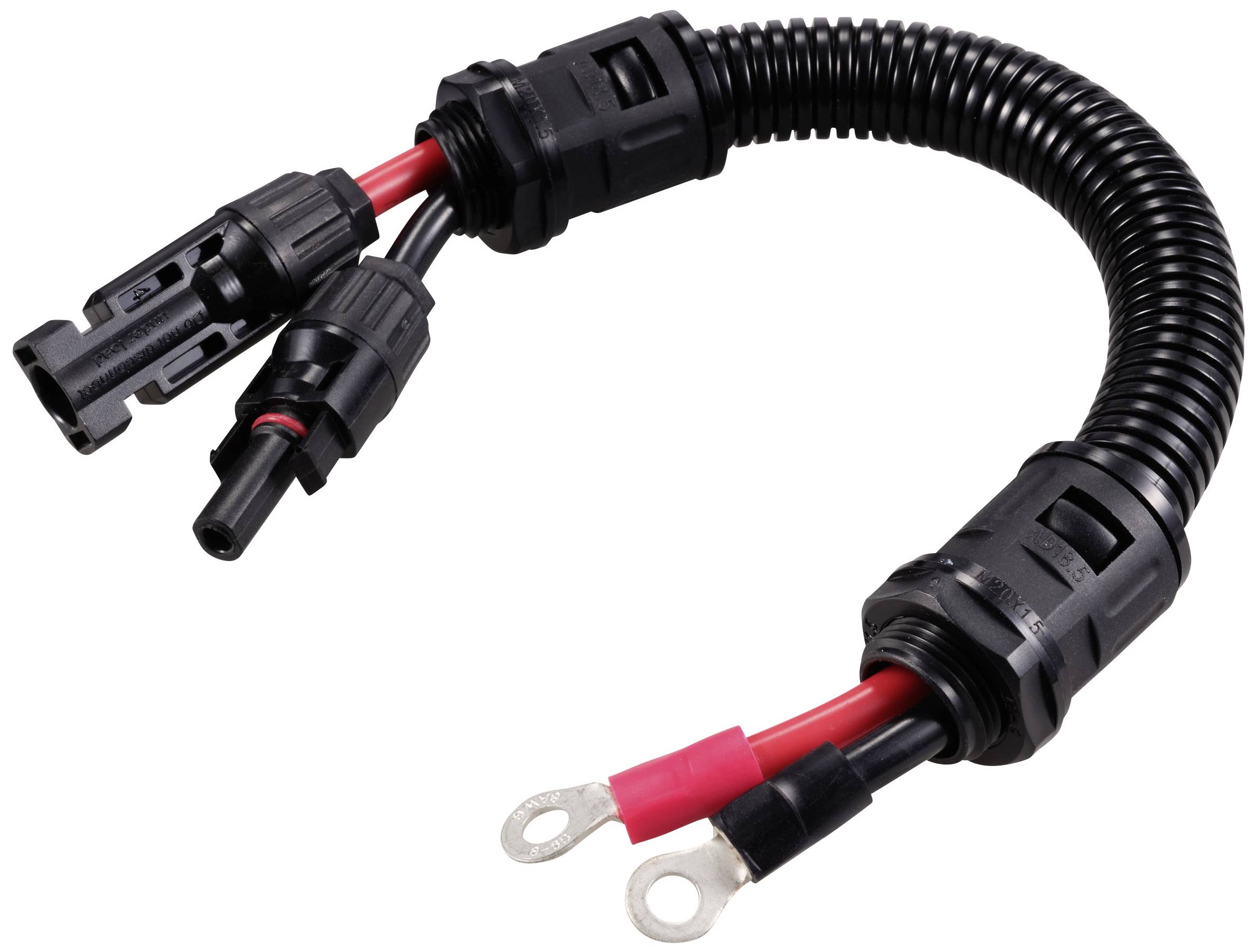

PV Solar Connector to M6 Ring Terminal Cable TC-12195640 Black, Red TRU COMPONENTS Content: 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 12.60
3
6% = € 0.70
€ 11.90
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 12.60 / piece)
€
Technical specifications
- Contact resistance: <2.0 mΩ
- Insulation resistance: >500 MΩ
- Ring terminal stud: M6
- Flame retardant grade: UL 94V-0
- Ring terminal insulation: Vinyl (PVC)
- Terminal contact: Tin plated copper
- Solar PV connector housing: Polycarbonate (PC)
- Terminal contact: Tin plated copper
- Solar cable conductor: Bare copper
- Insulation jacket: PVC VW-1
- Type
TC-12195640
- Nominal current - rounded value
IP67
- Content
1 pc(s)
- Total no. of pins
- Factory colour
Black
Red
- Length
250 mm
- Cable Ø range
- Manufacturer part #
TC-12195640
- Test current
30 A
- Rated voltage
600 V DC
- Connector cross section
8.36 mm²
- RoHS-compliant
- Plastic free packaging
Plastic-free packaging
- Product type
Documents & Downloads
Datasheet
Datasheet 3048910 PV Solar Connector to M6 Ring Terminal Cable TC-12195640 Black, Red TRU COMPONENTS Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3048910 PV Solar Connector to M6 Ring Terminal Cable TC-12195640 Black, Red TRU COMPONENTS Content: 1 pc(s)
Description
Hints
These connectors must be used in matching pairs/sets to ensure performance, compatibility and security.
