Quadrios 26P144 26P144 Carbon film resistor (set) Axial lead 0.5 W 0.05 % 3000 pc(s)
EAN:
Part number:
Item no:
Product type
Carbon film resistor (set)
Type
Axial lead
Power rating
0.5 W
Tolerance ±
0.05 %
Content
3000 pc(s)
Datasheet (PDF)
Number (Package size 3000 pc(s))
Total (€ 91.99 / piece)
€ 91.99
incl. VAT
14-day return policy included
Highlights & Details

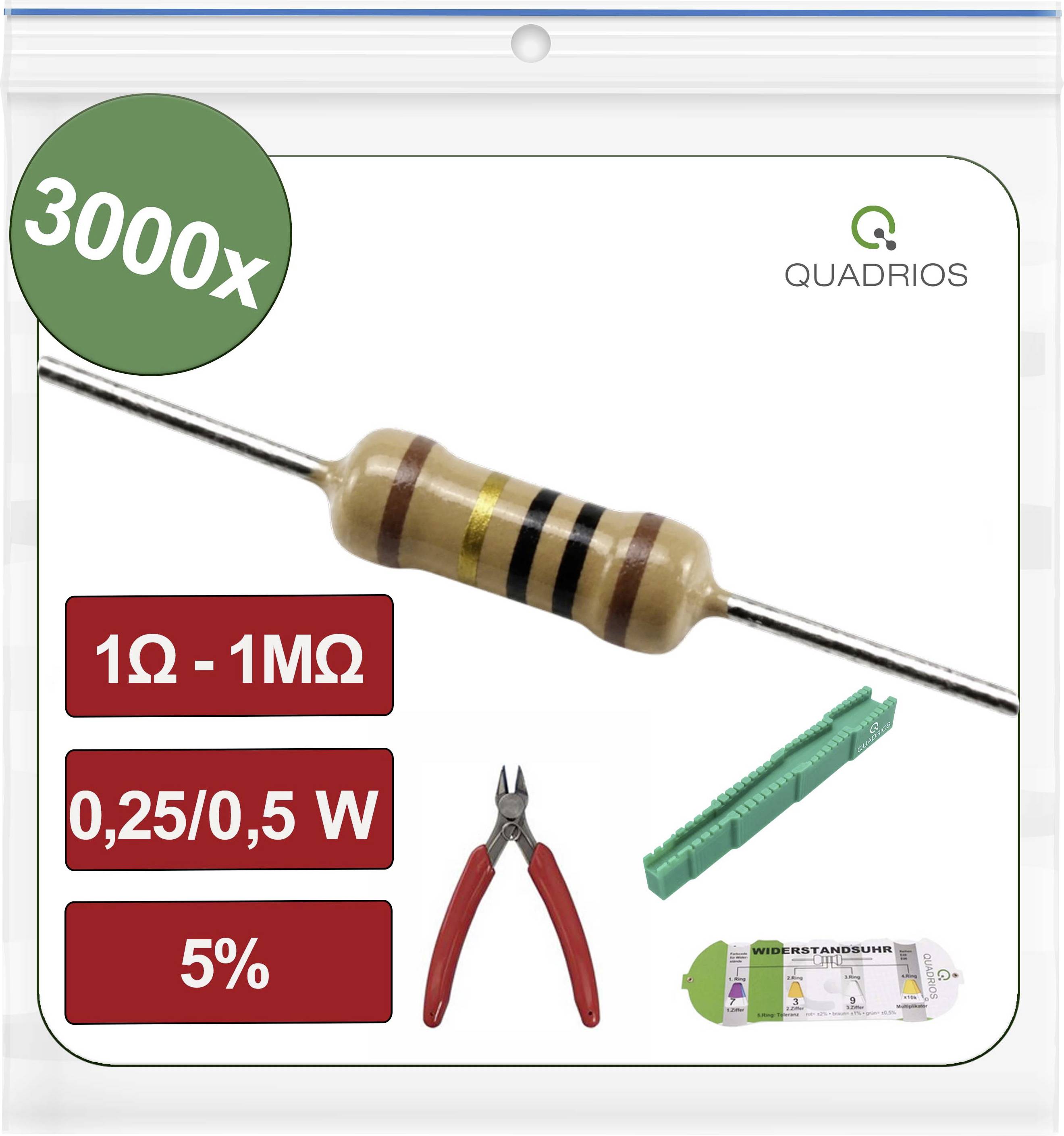

Carbon film resistors 0.25/0.5W 3000 pcs. With bending device, PCB pliers and resistance watch
- Resistance set with a total of 3000 resistances, resistance watch, bending device and PCB pliers
- Discreet and space-saving, packed and marked in re-closable pressure-lock bags
- Resistance values contained: 1 Ω to 1 MΩ in carbon film technology 0.25 W and 0.5 W.
Technical specifications
- Product type
Carbon film resistor (set)
- Type
Axial lead
- Power rating
0.5 W
- Tolerance ±
0.05 %
- Content
3000 pc(s)
- Type
26P144
Documents & Downloads
Datasheet
Datasheet 3841288 Quadrios 26P144 26P144 Carbon film resistor (set) Axial lead 0.5 W 0.05 % 3000 pc(s)
User & Safety Instructions
User & Safety Instructions 3841288 Quadrios 26P144 26P144 Carbon film resistor (set) Axial lead 0.5 W 0.05 % 3000 pc(s)
Description
Wired resistors (through-hole mounting) are standard components within electronics and technology and are indispensable in practical handling of this material. Ideal for pinboards, education, development, repair, service, Experiments with electronics and single board computers like Arduino or Raspberry PI etc.
It contains 20 different standard resistance values in carbon film technology and 0.25 and 0.5 watt power each - with extensive accessories. Any intermediate values can be formed through series or parallel connection or combinations. Therefore this set is also ideally suited for learning purposes and is often also used in educational institutions. Used resistance values can be individually refilled by means of optionally available refill packs per value.
The data sheet contains all relevant information about the resistor range.
This text is machine translated.
It contains 20 different standard resistance values in carbon film technology and 0.25 and 0.5 watt power each - with extensive accessories. Any intermediate values can be formed through series or parallel connection or combinations. Therefore this set is also ideally suited for learning purposes and is often also used in educational institutions. Used resistance values can be individually refilled by means of optionally available refill packs per value.
The data sheet contains all relevant information about the resistor range.
This text is machine translated.
Scope of delivery
- 1 x bending device RM 7.5 ... 17.5 mm
- 1 x resistance watch ("Vitrometer")
- 1 x PCB pliers with red handle
- 75 x carbon film resistors 1 Ω (0.25 W)
- 75 x carbon film resistors 10 Ω (0.25 W)
- 75 x carbon film resistors 47 Ω (0.25 W)
- 75 x carbon film resistors 100 Ω (0.25 W)
- 75 x carbon film resistors 150 Ω (0.25 W)
- 75 x carbon film resistors 220 Ω (0.25 W)
- 75 x carbon film resistors 330 Ω (0.25 W)
- 75 x carbon film resistors 470 Ω (0.25 W)
- 75 x carbon film resistors 1 kΩ (0.25 W)
- 75 x carbon film resistors 1.5 kΩ (0.25 W)
- 75 x carbon film resistors 2.2 kΩ (0.25 W)
- 75 x carbon film resistors 4.7 kΩ (0.25 W)
- 75 x carbon film resistors 10 kΩ (0.25 W)
- 75 x carbon film resistors 22 kΩ (0.25 W)
- 75 x carbon film resistors 33 kΩ (0.25 W)
- 75 x carbon film resistors 47 kΩ (0.25 W)
- 75 x carbon film resistors 100 kΩ (0.25 W)
- 75 x carbon film resistors 220 kΩ (0.25 W)
- 75 x carbon film resistors 470 kΩ (0.25 W)
- 75 x carbon film resistors 1 MΩ (0.25 W)
- 75 x carbon film resistors 1 Ω (0.5 W)
- 75 x carbon film resistors 10 Ω (0.5 W)
- 75 x carbon film resistors 47 Ω (0.5 W)
- 75 x carbon film resistors 100 Ω (0.5 W)
- 75 x carbon film resistors 150 Ω (0.5 W)
- 75 x carbon film resistors 220 Ω (0.5 W)
- 75 x carbon film resistors 330 Ω (0.5 W)
- 75 x carbon film resistors 470 Ω (0.5 W)
- 75 x carbon film resistors 1 kΩ (0.5 W)
- 75 x carbon film resistors 1.5 kΩ (0.5 W)
- 75 x carbon film resistors 2.2 kΩ (0.5 W)
- 75 x carbon film resistors 4.7 kΩ (0.5 W)
- 75 x carbon film resistors 10 kΩ (0.5 W)
- 75 x carbon film resistors 22 kΩ (0.5 W)
- 75 x carbon film resistors 33 kΩ (0.5 W)
- 75 x carbon film resistors 47 kΩ (0.5 W)
- 75 x carbon film resistors 100 kΩ (0.5 W)
- 75 x carbon film resistors 220 kΩ (0.5 W)
- 75 x carbon film resistors 470 kΩ (0.5 W)
- 75 x carbon film resistors 1 MΩ (0.5 W)
