TRU COMPONENTS 418706 Carbon film resistor (set) Axial lead 5 % 390 Parts
Packaging type
Box
Product type
Carbon film resistor (set)
Type
Axial lead
Tolerance ±
5 %
Content
390 Parts
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 390 Parts)
Total (€ 12.99 / piece)
€ 12.99
incl. VAT
14-day return policy included
Highlights & Details
Carbon film resistor (set) Axial lead Conrad Components 418706 390 Parts

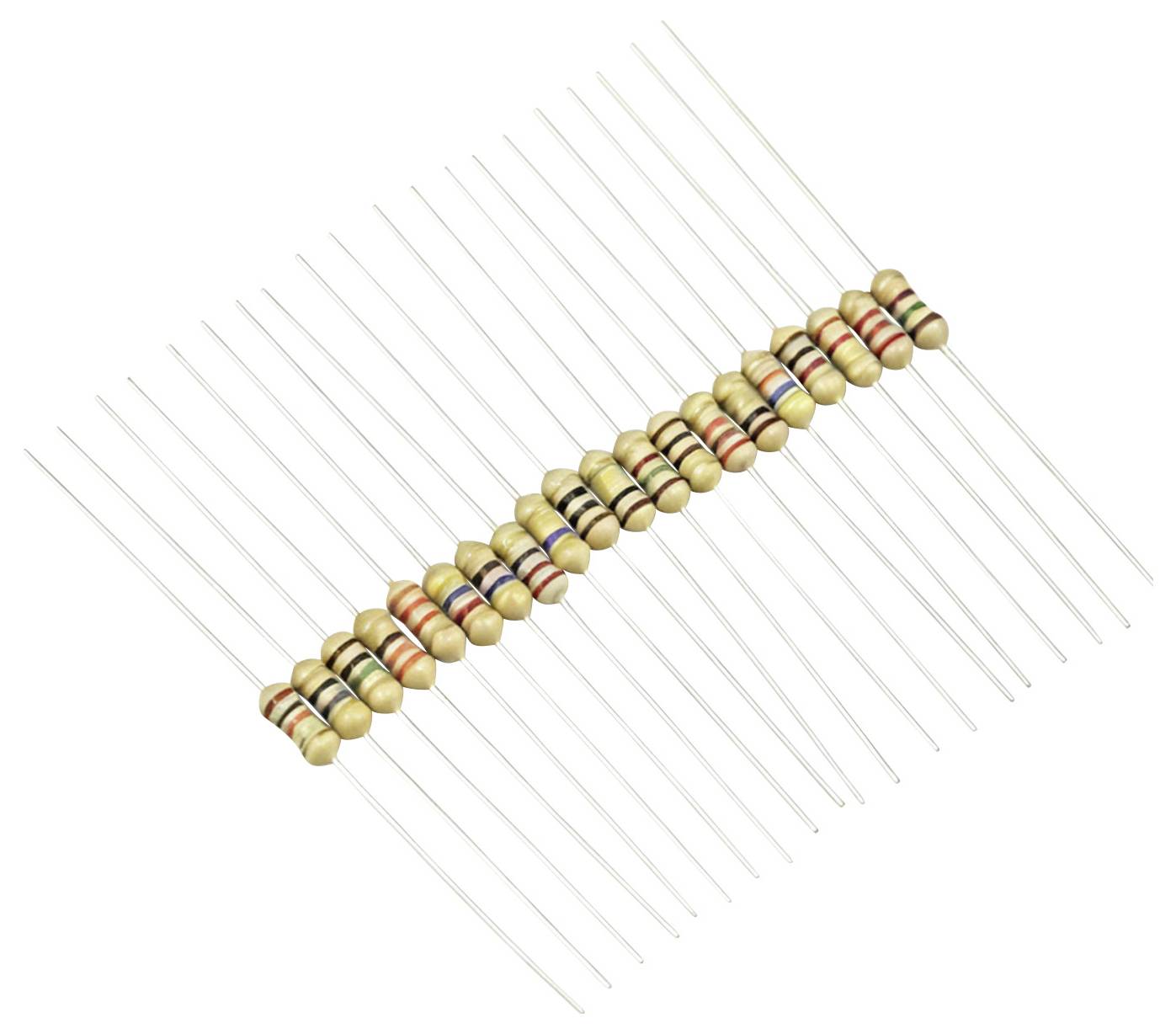

- 390x 1/4 Watt carbon film resistors
- 20 ratings ranging from 1 Ohm to 1 MOhm

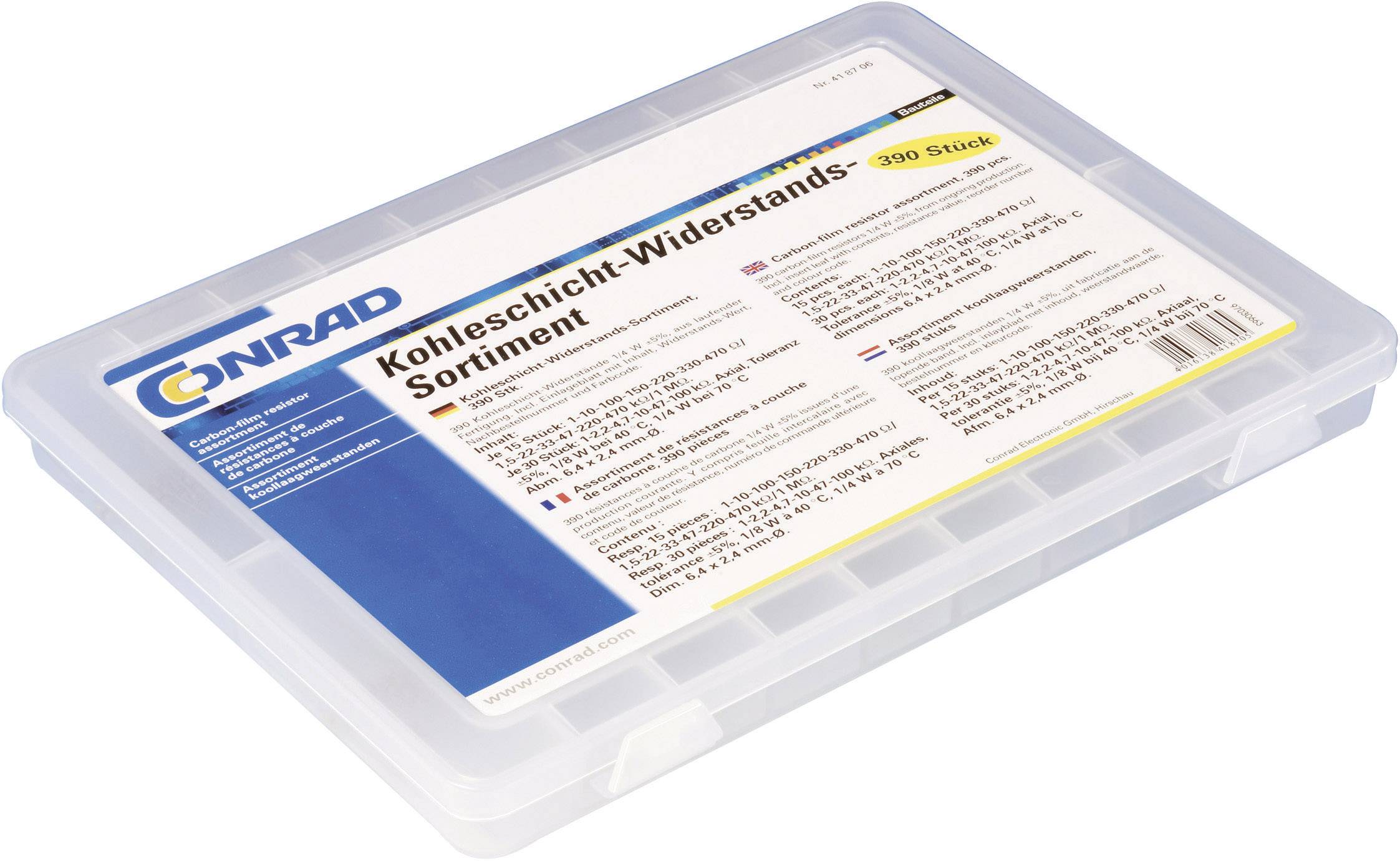

- Clear plastic labelled organiser box
Our service for you
Technical specifications
- Packaging type
Box
- Product type
Carbon film resistor (set)
- Type
Axial lead
- Tolerance ±
5 %
- Length
6.4 mm
- (Ø)
2.4 mm
- Content
390 Parts
- Dim
(Ø x L) 2.4 mm x 6.4 mm
- RoHS-compliant
Yes
- Type
418706
Documents & Downloads
Datasheet
Datasheet 1564789 TRU COMPONENTS 418706 Carbon film resistor (set) Axial lead 5 % 390 Parts
User & Safety Instructions
User & Safety Instructions 1564789 TRU COMPONENTS 418706 Carbon film resistor (set) Axial lead 5 % 390 Parts
Description

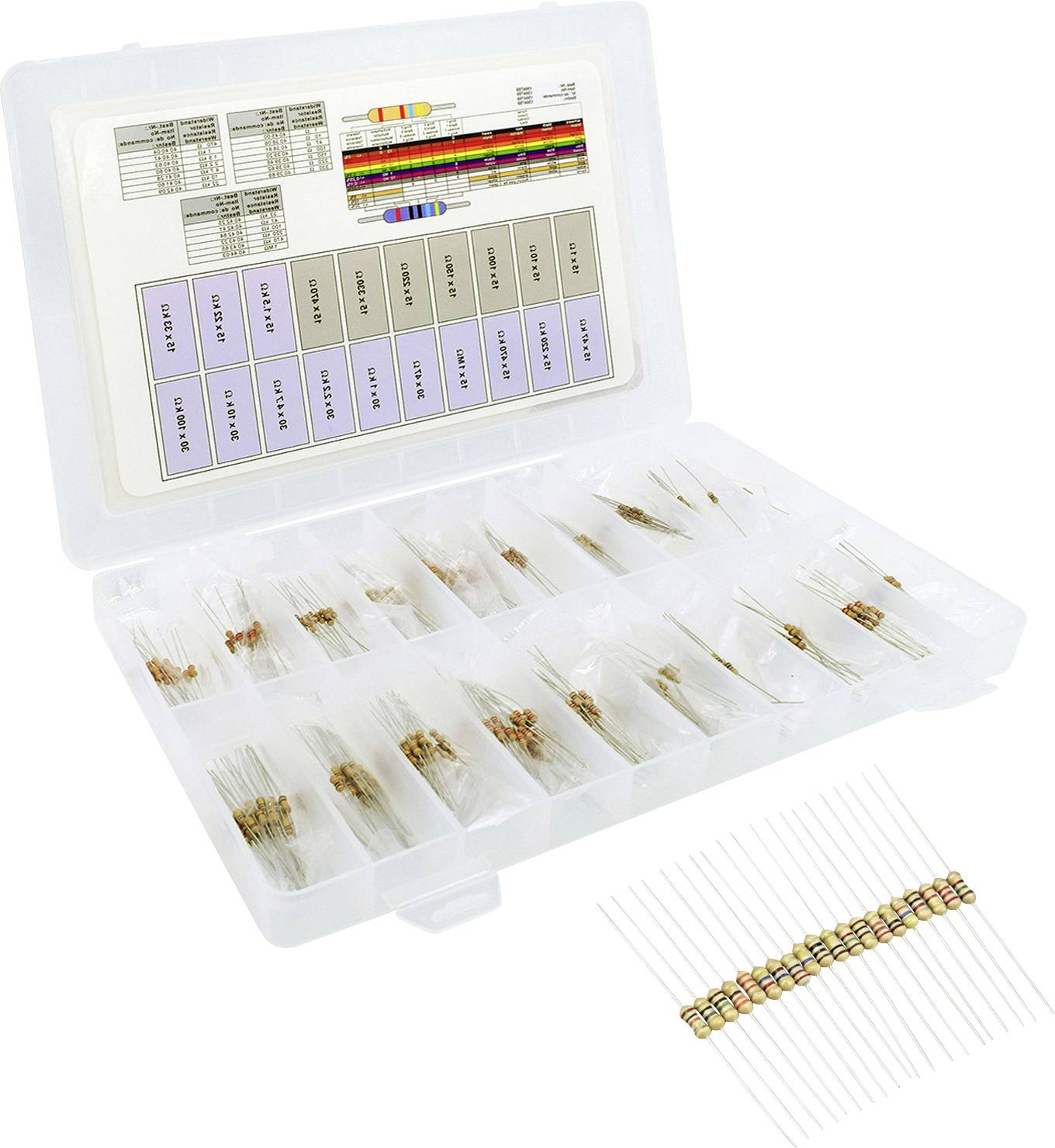

390 original carbon film resistors 1/4 W ± 5% from the same batch. Perfect for the hobby electronics enthusiast: a selection of 20 ratings in various quantities (15 or 30 pieces). Supplied in a clear plastic box with a contents sheet (contents, resistance value, re-order number, colour code).
Features
- 15x each of: 1-10-100-150-220-330-470 Ohm, 1.5-22-33-47-220-470 kOhm, 1 MOhm
- 30x each of: 1-2.2-4.7-10-47-100 kOhm.
Scope of delivery
- 390 resistors with each 15 pieces: 1-10-100-150-220-330-470 Ω /1.5-22-33-47-220-470 kΩ/1 MΩ and per 30 pieces: 1-2.2-4 ,7-10-47-100 kΩ.
