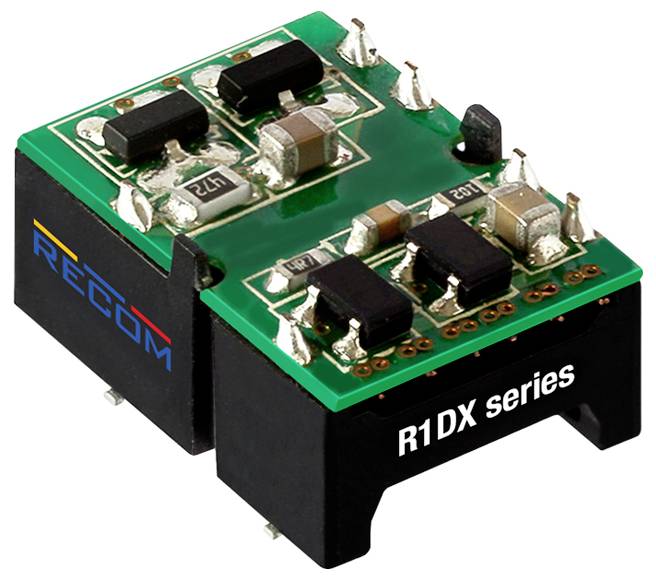

RECOM R1DX-0512/H-TRAY DC/DC converter 5 V 0.042 A 1 W Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
DC/DC converter
- Type
R1DX-0512/H-TRAY
- Nominal voltage
5 V
- Min. input voltage
4.5 V
- Input voltage (max.)
5.5 V
- Max. output current
0.042 A
- Output current (max.) - rounded
42 mA
1 W
- Insulation voltage
1.000 V
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
95 °C
- Dim
(L x W x H) 15.24 x 11.1 x 8 mm
- Height
8 mm
- Length
15.24 mm
- Width
11.1 mm
- RoHS-compliant
Yes
- Output voltage (max.)
12 V
- Output voltage (min.)
-12 V
- Output current (min.)
-0.042 A
- Weight
1.2 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3556800 RECOM R1DX-0512/H-TRAY DC/DC converter 5 V 0.042 A 1 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3556800 RECOM R1DX-0512/H-TRAY DC/DC converter 5 V 0.042 A 1 W Content 1 pc(s)
Description
Low-cost, flat, insulated 1 W SMD DC/DC double output converter with open frame design. The R1DX operates with 5V and offers ±5, ±9, ±12 or ±15 double outputs. No minimum load is required and the standby current consumption is less than 150mW. The standard isolation is 1kVDC/1s and a /H version is available with 3kVDC/1s. The operating temperature is between -40°C and +95°C without derating. The pin assignment corresponds to the industry standard and is compatible with the R1D-series, however at half height. The converters are fully certified according to IEC/EN/UL62368 and IEC/EN/UL60950 and are 10/10 RoHS compliant. Class A EMC compliance requires only one input capacitor, and a simple, cost-effective LC filter is all WAS MAN is required for Class B EMC.
