RECOM RAC15-05SK/480 SMPSU 5 V 3 A 15 W
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

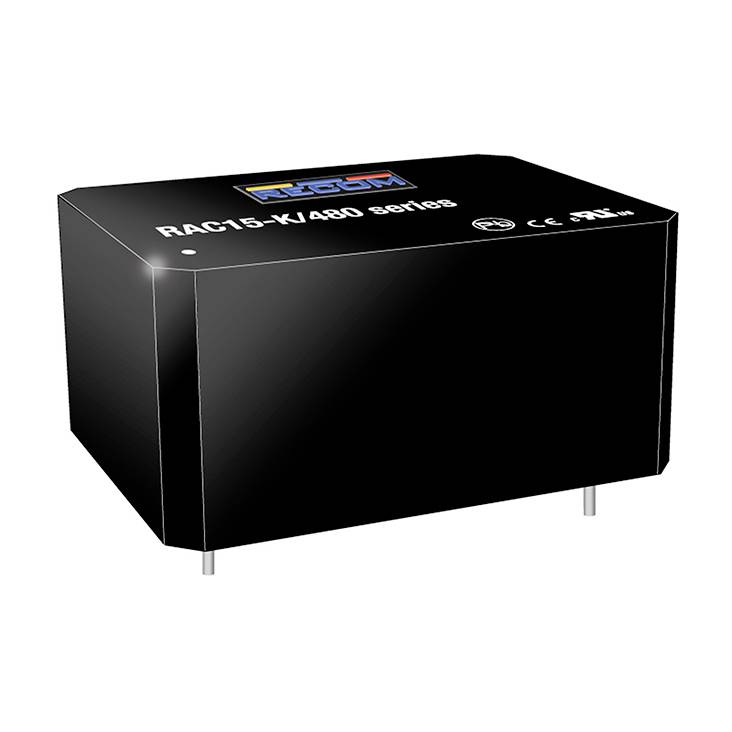

RECOM RAC15-K/480 SNT case single output
- Output 5 V / 3 A
- Power 15 W
- THT
Technical specifications
- Features LPS, DC compatible
- Efficiency 86 %
- No-load capacity less than 0.3 W.
- Remaining ripple 100 MVP-p
- Application: ITE, Industry
- Overload protection version: Hiccup
- Short circuit protection 1
- Overvoltage protection 1
- Short circuit protection 1
- Overvoltage protection 1
- Insulation voltage 3,000 V
- Housing: Enclosed plastic
- Input current 0.5 A
- Switch-on current max. 10 A.
- Protection class: II
- Leakage current 0.2 mA
- Product type
SMPSU
- Input voltage (max.)
750 V DC
528 V AC
- Max. output current
3 A
- Output current (max.) - rounded
3 A
- Min. input voltage
120 V DC
85 V AC
- Dim
(L x W x H) 52.50 x 40 x 25.50 mm
- Output voltage (max.)
5 V
- Connection
THT
15 W
- No. of outputs
1 x
- Type
closed
- Operating temperature (max.)
+90 °C
- Operating temperature (min.)
-40 °C
- Width
40 mm
- Height
25.50 mm
- Length
52.50 mm
- Type
RAC15-05SK/480
- MTBF
1450000 h
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2887470 RECOM RAC15-05SK/480 SMPSU 5 V 3 A 15 W
User & Safety Instructions
User & Safety Instructions 2887470 RECOM RAC15-05SK/480 SMPSU 5 V 3 A 15 W
Warranty Terms
Warranty Terms 2887470 RECOM RAC15-05SK/480 SMPSU 5 V 3 A 15 W
Description
Hints
These power supplies are intended for installation in terminals.
