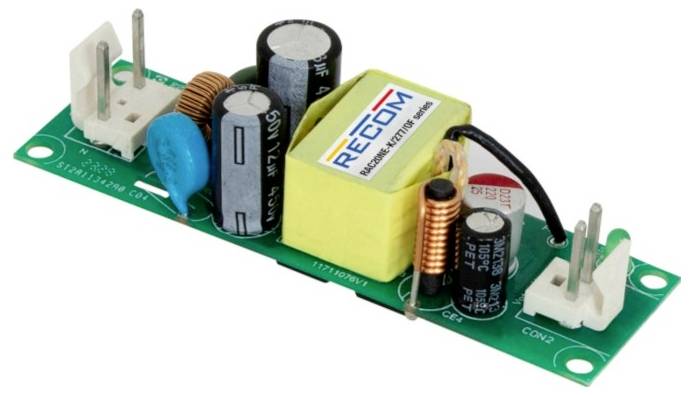

RECOM RAC20NE-24SK/277/OF AC/DC converter 24 V 0.833 A 20 W
EAN:
Part number:
Item no:
Highlights & Details
Brand.2514 RAC20NE-K/277 SNT case single outp
- Output 24 V / 0.833 A
- Power 20 W
- Connector
Technical specifications
- Operation maintenance 130000 h
- MTBF 11960000 h
- Network frequency: 50~60 Hz
- Product type
AC/DC converter
- Input voltage (max.)
305 V AC
- Max. output current
0.833 A
- Output current (max.) - rounded
833 mA
- Min. input voltage
85 V AC
- Dim
(L x W x H) 80 x 23.8 x 22.5 mm
- Output voltage (max.)
24 V
- Connection
Connector
20 W
Protection class II
- Operating temperature (max.)
-40 °C
- Operating temperature (min.)
+85 °C
- Width
23.8 mm
- Height
22.5 mm
- Length
80 mm
- Type
RAC20NE-24SK/277/OF
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3435833 RECOM RAC20NE-24SK/277/OF AC/DC converter 24 V 0.833 A 20 W
Description
RAC20NE-K power supplies in open-frame or enclosed soldering technology are optimized for the requirements of new energy applications such as energy management, monitoring or actuator operation. These compact AC/DC modules meet increased requirements in terms of ambient temperatures, high immunity to transients, assumed insulation barriers, EMC immunity with secondary ground connection and low power loss in full load mode as well as in standby and sleep mode. For the supply of universal input voltages from 100 to 277 VAC, the modules are approved in various versions in accordance with the worldwide industrial, household and safety transformer standards in operating heights up to 5000 m or up to 3000 m under OVC III. High effective power density and industry standard P12 pinning on a base area of 1 "x2" fit into space-critical cubatures.
