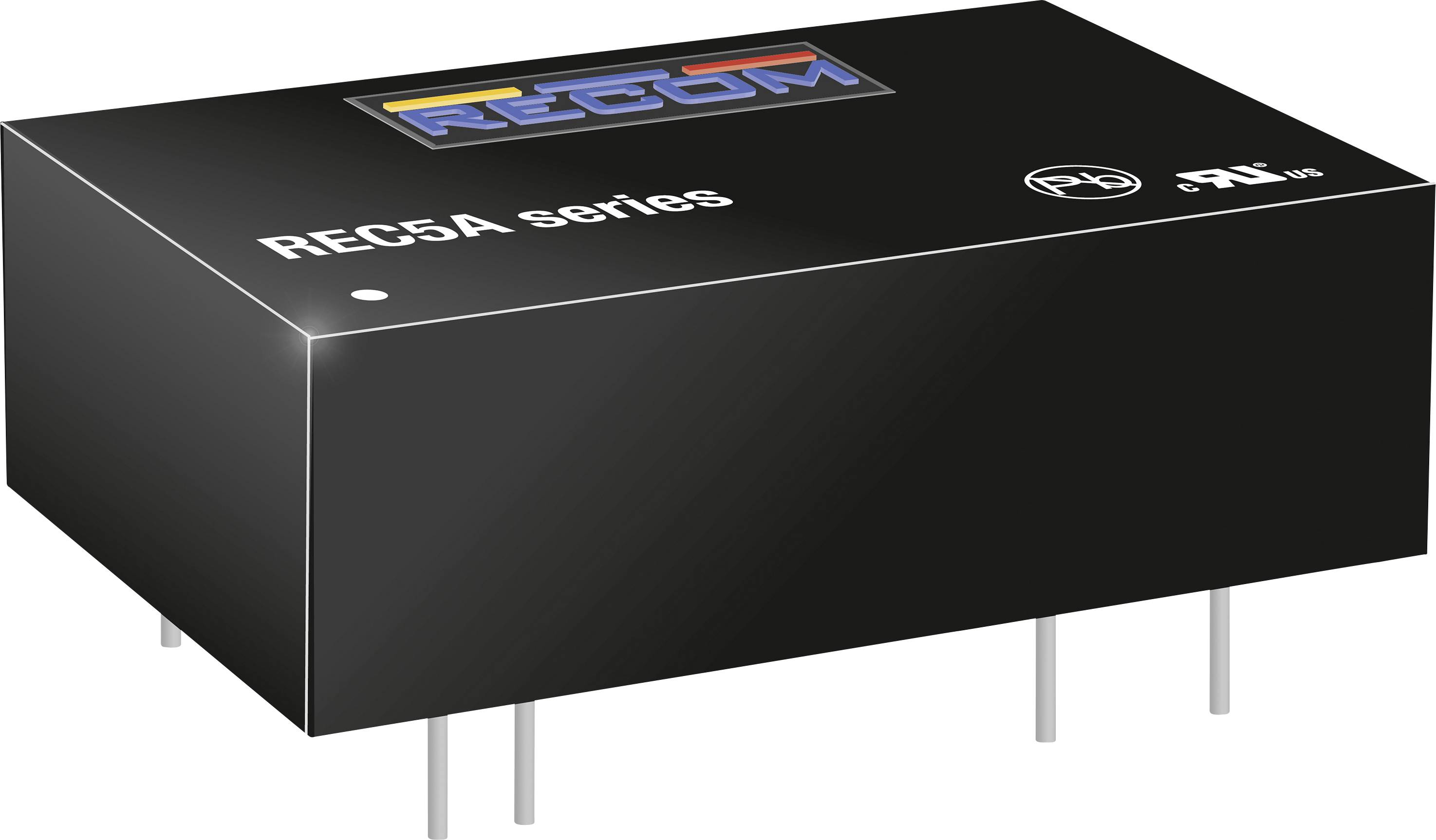

RECOM REC5A-0505SW/H2 DC/DC converter (print) 1 A 5 W No. of outputs: 1 x Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
DC/DC converter (print)
- Type
REC5A-0505SW/H2
- Min. input voltage
4.5 V
- Input voltage (max.)
9 V
- No. of outputs
1 x
- Max. output current
1 A
- Output current (max.) - rounded
1 A
5 W
- Insulation voltage
2000 V
- Enclosure
DIP 24
- Dim
(L x W x H) 31.8 x 20.3 x 10.2 mm
- Height
10.2 mm
- Length
31.8 mm
- Width
20.3 mm
- RoHS-compliant
Yes
- Output voltage (max.)
5 V
- Output voltage (min.)
5 V
- Content
1 pc(s)
Compliance & Certifications
Certified by EU Garan
