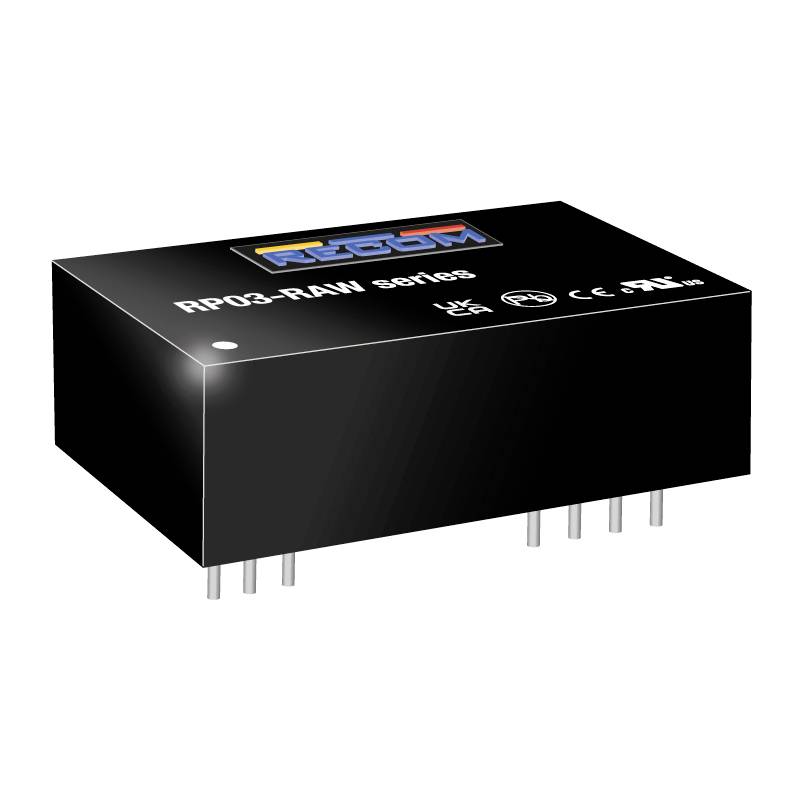

RECOM RP03-11012SRAW DC/DC converter 110 V 12 V 0.25 A 3 W No. of outputs: 1 x Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Capacitive load max. 130 µF
- Remaining ripple 75 MVP-p
- Application: ITE, industry, railway technology
- Casing: DIP24
- Input voltage ratio 4:1
- Product type
DC/DC converter
- Type
RP03-11012SRAW
- Nominal voltage
110 V
- Min. input voltage
36 V DC
- Input voltage (max.)
160 V DC
- No. of outputs
1 x
- Output voltages
12 V
- Max. output current
0.25 A
- Output current (max.) - rounded
250 mA
- Efficiency (max.)
84.5 %
3 W
- Insulation voltage
3.000 V
- Connection
THT
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+105 °C
- Dim
(L x W x H) 31.80 x 20.30 x 10.60 mm
- Height
10.60 mm
- Length
31.80 mm
- Width
20.30 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
