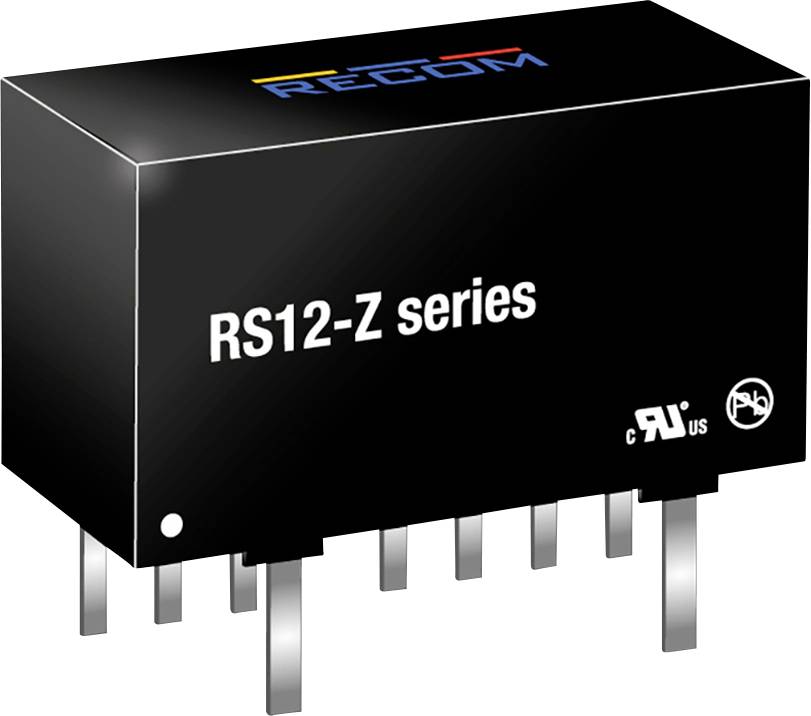

RECOM RS12-2412SZ DC/DC converter (print) 1 A 12 W No. of outputs: 1 x Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
DC/DC converter (print)
- Type
RS12-2412SZ
- Min. input voltage
9 V
- Input voltage (max.)
36 V
- No. of outputs
1 x
- Max. output current
1 A
- Output current (max.) - rounded
1 A
12 W
- Insulation voltage
3000 V
- Enclosure
SIP 8
- Dim
(L x W x H) 21.8 x 12.1 x 9.6 mm
- Height
9.6 mm
- Length
21.8 mm
- Width
12.1 mm
- RoHS-compliant
Yes
- Output voltage (max.)
13.2 V
- Output voltage (min.)
10.8 V
- Content
1 pc(s)
