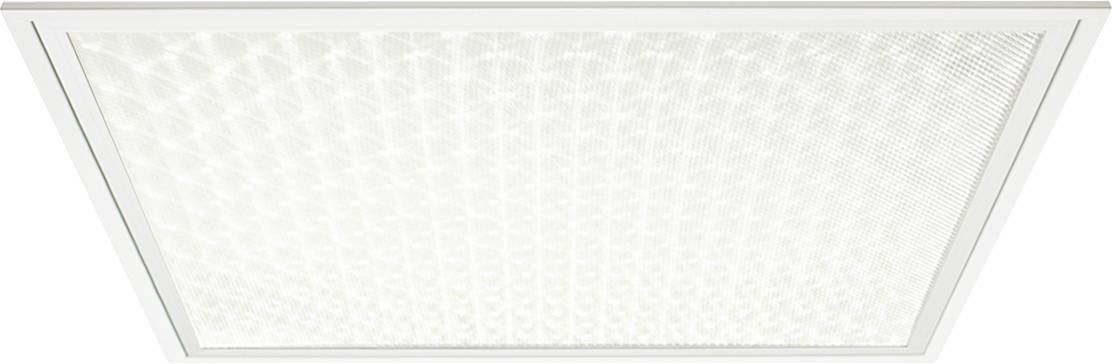

Regiolux 72500014150 protect #72500014150 LED recessed light LED (monochrome) 33 W White
EAN:
Part number:
Item no:
Highlights & Details
LED built-in light M625 4000K protect #72500014150
- Power= 33 W Total luminous flux= 4400 lm Colour temperature= 4000 K Neutral white
Technical specifications
- Suitable for wall mounting: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Suitable for surface mounting: No.
- Suitable for light band configuration: No.
- Workplace training material - EN 12464-1: Yes
- Bulb: LED not replaceable
- With bulb: Yes
- Suitable for number of light sources: 1
- Version: Other
- Material of housing: Steel
- Surface protection housing: Other
- Housing color: White
- Cover material: Textured plastic
- Design of grid: Without
- Voltage type AC
- Nominal voltage: 230 V
- Nominal current: 143 mA
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: No.
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: No.
- Dimming DALI-2: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dimmer potentiometer (built-in): No.
- Dim. RF: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Light distributor: Other
- Light distribution: Symmetric
- Radiation angle 21-40° - medium radiation
- Color consistency (McAdam ellipse): SDCM3
- Light emission: Direct
- Rated life L70/B50 at 25 °C: 100000 h
- Lumen maintenance at medium. Service life 50,000 h at 25 °C surrounding temperature: 80 %
- Failure rate at medium. Service life 50,000 h at 25 ° C surrounding temperature (tq): 10%
- Max. Number of lights per circuit breaker B16: 25
- Max. Number of lights per line circuit breaker C16: 42
- Protection class (NEMA): Other
- Impact strength: IK02
- Protection class according to IEC 61140: I
- Lamp with limited surface temperature "D-sign" according to EN 60598-2-24: No.
- Rated ambient temperature according to IEC 62722-2-1:25°C.
- Suitable for emergency light: No.
- With motion detector: No.
- With light sensor: No.
- Covering of the lamp with thermal insulation material is possible: No.
- With air vents: No.
- Glow wire test according to IEC 60695-2-11: Without
- Suitable for lamp output 33 W
- Light output 134 lm/W
- Max. System power 33 W
- Rated light current according to IEC 62722-2-1: 4400 lm
- Light color: White
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Width 622 mm
- Height/depth 82 mm
- Length: 622 mm
- Mounting length 585 mm
- Mounting width 585 mm
- Installation height/depth 250 mm
- Type of wiring: Finish
- Number of poles: 3
- Connection type: Plug-in terminal
- Photobiological safety according to EN 62471: Other
- Glare limiter (UGR): 19.1
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Operation via Bluetooth: No.
- Compatible with Casambi: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Product type
LED recessed light
- Operating voltage
230 V
- Bulb type
LED (monochrome)
33 W
- Total luminous flux
4400 lm
4000 K
- Colour
Neutral white
- Recess diameter
585 mm
- Recess depth
250 mm
- Protection class
I
- Factory colour
White
- Material
Steel
Plastic
n.rel.
- Dim
(L x W) 622 mm x 622 mm
- Colour temperature range
4000 K
- Width
622 mm
- Length
622 mm
- Depth
82 mm
- Nominal current
143 mA
- Number of pins
3
- LEDs
1
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3795698 Regiolux 72500014150 protect #72500014150 LED recessed light LED (monochrome) 33 W White
Description
Steel sheet casing suitable for covers with visible T-rails, covered symmetrical rail construction and cut covers, protection class refers to visible light surface, housing color: White RAL 9016. Direct light distribution by means of diffuser micro-prismatic made from acrylic glass, with aluminum frame naturally anodized, light color neutral white (840) with excellent color consistency and high color reproduction ralarger than 80. Suitable for screen workstations, 65° smaller than 3000 cd/qm according to the current standard DIN-EN 12464-1. Electrical connection via 3-pin connection terminal in plug-in contact mechanism.
