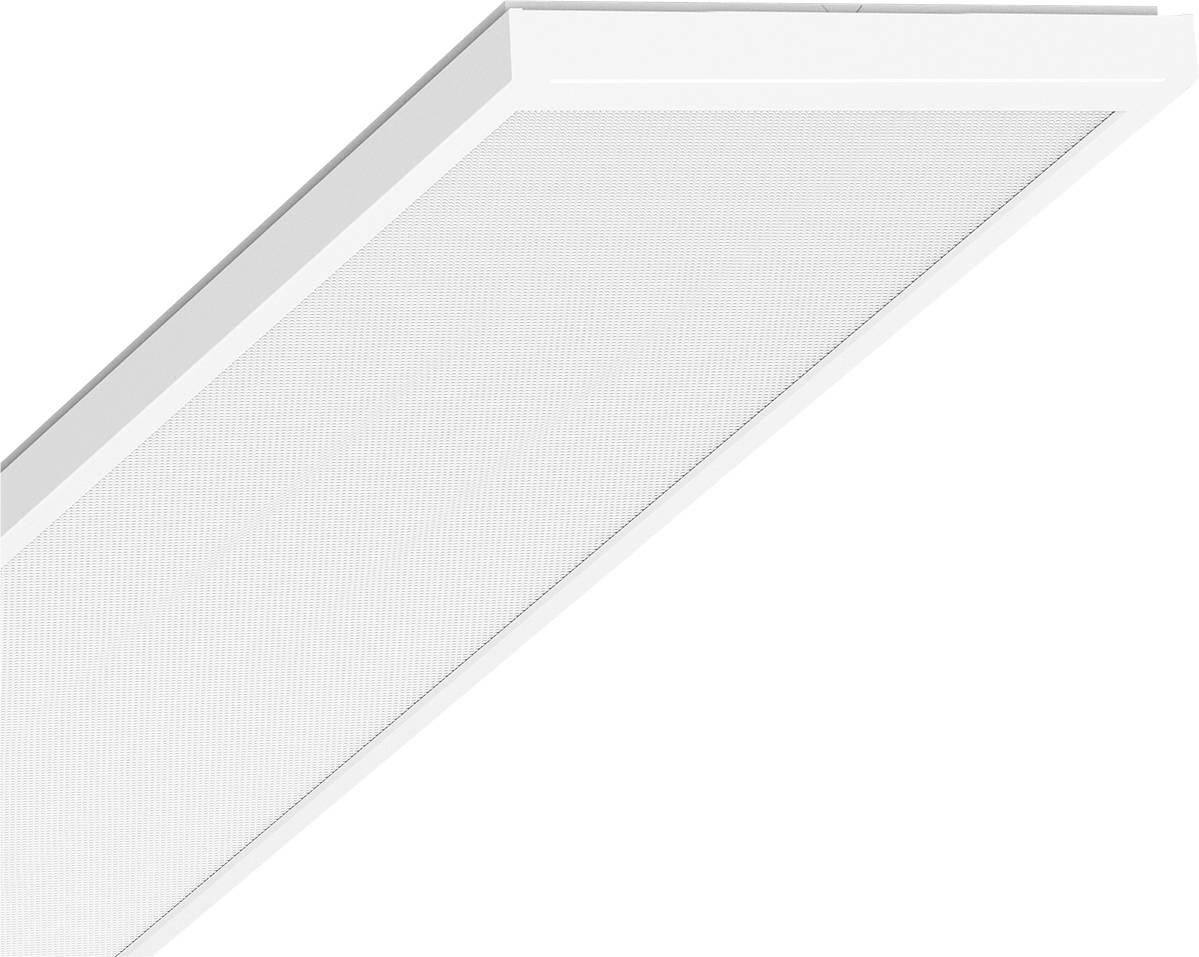

Regiolux alevo-A #65712024170 65712024170 LED ceiling light 51 W LED (monochrome) White
EAN:
Part number:
Item no:
Highlights & Details
LED-mounted light 840, ML alevo-A #65712024170
- Power= 51 W
- Total luminous flux= 7000 lm
- Colour temperature= 4000 K
- Neutral white
Technical specifications
- Suitable for wall mounting: No.
- Suitable for pendulum suspension: Yes
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: No.
- Suitable for surface mounting: Yes
- Suitable for light band configuration: Yes
- Workplace training material - EN 12464-1: Yes
- Bulb: LED not replaceable
- With bulb: Yes
- Suitable for number of light sources: 1
- Version: Other
- Material of housing: Steel
- Surface protection housing: Painted
- Housing color: White
- Cover material: Textured plastic
- Voltage type AC
- Nominal voltage: 230 V
- Operating device: Not required
- With operating device: Yes
- Removable operating device: No.
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: No.
- Dimming DALI-2: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dimmer potentiometer (built-in): No.
- Dim. RF: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Light distributor: Other
- Light distribution: Symmetric
- Radiation angle 21-40° - medium radiation
- Color consistency (McAdam ellipse): SDCM3
- Light emission: Direct
- Rated life L70/B50 at 25 °C: 100000 h
- Lumen maintenance at medium. Service life 35,000 h at 25 °C surrounding temperature: 90 %
- Lumen maintenance at medium. Service life 50,000 h at 25 °C surrounding temperature: 85 %
- Lumen maintenance at medium. Service life 75,000 h at 25 °C surrounding temperature: 78 %
- Failure rate at medium. Service life 35,000 h at 25 ° C surrounding temperature (tq): 10%
- Failure rate at medium. Service life 50,000 h at 25 ° C surrounding temperature (tq): 10%
- Failure rate at medium. Service life 75,000 h at 25 ° C surrounding temperature (tq): 10%
- Max. Number of lights per circuit breaker B16: 25
- Max. Number of lights per line circuit breaker C16: 38
- Protection class (NEMA): Other
- Impact strength: IK03
- Protection class according to IEC 61140: I
- Lamp with limited surface temperature "D-sign" according to EN 60598-2-24: No.
- Rated ambient temperature according to IEC 62722-2-1:25°C.
- Suitable for emergency light: No.
- With motion detector: No.
- With light sensor: No.
- Covering of the lamp with thermal insulation material is possible: No.
- With air vents: No.
- Glow wire test according to IEC 60695-2-11: Without
- Suitable for lamp power 28..51 W
- Light output 149 lm/W
- Max. System power 51 W
- Rated light current according to IEC 62722-2-1: 7000 lm
- Light color: White
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Width 354 mm
- Height/depth 62 mm
- Length: 1548 mm
- Type of wiring: Finish
- Number of poles: 3
- Connection type: Plug-in terminal
- Photobiological safety according to EN 62471: RG0
- Glare limiter (UGR): 18.9
- Adjustable color temperature: No.
- Luminous flux can be set: Stages
- Adjustable radiation angle: No.
- Operation via Bluetooth: No.
- Compatible with Casambi: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Product type
LED ceiling light
- Operating voltage
230 V
- Bulb type
LED (monochrome)
51 W
- Protection class
I
- Factory colour
White
- Material
Steel
Plastic
- Weight
0
- Dim
(L x W) 1548 mm x 354 mm
n.rel.
- Colour
Neutral white
4000 K
- Total luminous flux
7000 lm
- Width
354 mm
- Length
1548 mm
- Depth
62 mm
- Number of pins
3
- LEDs
1
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3795695 Regiolux alevo-A #65712024170 65712024170 LED ceiling light 51 W LED (monochrome) White
Description
Steel-plate casing powder-coated rectangular cross-section, integrated Quicklock quick-mounting bracket system with catching hooks and safety cable for simple and fast mounting, housing color: Traffic-white RAL 9016. Microprismatic disk in "multilayer" technology, light distribution directly radiating by means of diffuser micro-prismatic made from PMMA, homogeneous light distribution. Suitable for screen workstations, 65° smaller than 3000 cd/qm according to the current standard DIN-EN 12464-1. Electrical connection via 3-pin connection terminal in plug-in contact technology, installation-friendly electrical connection, directly at the upper side of the lamp with a terminal cover, the ETM stages can be set without any problem from the upper side of the lamp,.
