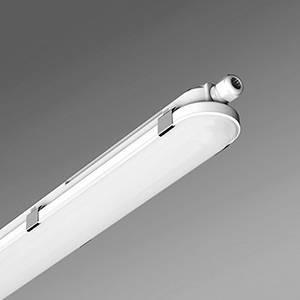

Regiolux maran-D #50135404115 LED wet room light LED (monochrome) 43 W Neutral white Grey
EAN:
Part number:
Item no:
Highlights & Details
LED-humid room light 840 Maran-D #50135404115
- Power= 43 W
- Total luminous flux= 6200 lm
- Colour temperature= 4000 K
- Neutral white
Technical specifications
- Suitable for wall mounting: Yes
- Suitable for pendulum suspension: Yes
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: No.
- Suitable for surface mounting: Yes
- Suitable for light band configuration: No.
- Suitable for screen workstations according to EN 12464-1: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Suitable for number of light sources: 1
- Version: Other
- Housing material: Plastic
- Surface protection housing: Other
- Housing color: Grey
- Cover material: Plastic opal
- Design of grid: Without
- Voltage type AC
- Nominal voltage: 230 V
- Operating device: Not required
- With operating device: Yes
- Removable operating device: No.
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: No.
- Dimming DALI-2: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dimmer potentiometer (built-in): No.
- Dim. RF: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Light distributor: Diffuser lens/-optic/-panel
- Light distribution: Symmetric
- Radiation angle 21-40° - medium radiation
- Color consistency (McAdam ellipse): SDCM4
- Light emission: Direct
- Rated life L70/B50 at 25 °C: 100000 h
- Lumen maintenance at medium. Service life 50,000 h at 25 °C surrounding temperature: 80 %
- Failure rate at medium. Service life 50,000 h at 25 ° C surrounding temperature (tq): 10%
- Max. Number of lights per circuit breaker B16: 50
- Max. Number of lights per line circuit breaker C16: 85
- Protection class (NEMA): Other
- Impact strength: IK08
- Protection class according to IEC 61140: I
- Lamp with limited surface temperature "D-sign" according to EN 60598-2-24: Yes
- Rated ambient temperature according to IEC 62722-2-1: -20..35°C.
- Suitable for emergency light: No.
- With motion detector: No.
- With light sensor: No.
- Covering of the lamp with thermal insulation material is possible: No.
- With air vents: No.
- Glow wire test according to IEC 60695-2-11: Without
- Suitable for lamp power 26..43 W
- Light output 153 lm/W
- Max. System power 43 W
- Rated light current according to IEC 62722-2-1: 6200 lm
- Light color: White
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Width 85 mm
- Height/depth 78 mm
- Length: 1540 mm
- Type of wiring: With through wiring
- Number of pins: 5
- Conductor cross-section: 1.5 mm²
- Connection type: Plug-in terminal
- Photobiological safety according to EN 62471: RG1
- Glare limiter (UGR): 24.6
- Adjustable color temperature: No.
- Luminous flux can be set: Stages
- Adjustable radiation angle: No.
- Operation via Bluetooth: No.
- Compatible with Casambi: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Product type
LED wet room light
- Operating voltage
230 V
- Bulb type
LED (monochrome)
- Length
1540 mm
43 W
- Width
85 mm
4000 K
- Colour
Neutral white
- Total luminous flux
6200 lm
- Factory colour
Grey
- Material
Plastic
- Dim
(L x W) 1540 mm x 85 mm
n.rel.
- Colour temperature range
4000 K
- Depth
78 mm
- Number of pins
5
- LEDs
1
- Protection class
I
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3795831 Regiolux maran-D #50135404115 LED wet room light LED (monochrome) 43 W Neutral white Grey
Description

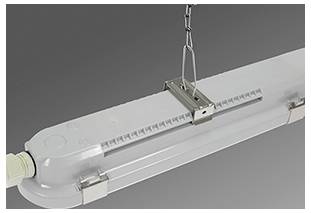

Ceiling wall and pendulum mounting, polycarbonate casing, captive tub-mounting clips made of steel spring plate, frontal protection-appropriate cable inlet with M20 cable gland, suspended safety device for mounting aid, light gray case color. Direct radiating light through diffuser, opal made of polycarbonate, deep-drawn tub, with opal-prismatic, smooth surface. Multilumen driver with integrated 4 adjustable light output. Electrical connection via 3-pin connection terminal in plug-in contact mechanism. Through-wired.
