Rehau 6133273 Outside corner Outside corner (W x D) 170.00 mm x 70.00 mm 1 pc(s) Silver
EAN:
Part number:
Item no:
Technical specifications
- Width 170 mm
- Depth: 70 mm
- Number of tops: 1
- Upper section width 1:80 mm
- Upper section width 2:0 mm
- Upper section width 3:0 mm
- Symmetric: No.
- Design: Lower part
- Angle 90 °
- Material: Aluminium
- Material quality: Other
- Halogen-free: Yes
- Antibacterial treatment: No.
- Surface protection: Anodised/anodized
- Colour: Silver.
- With protective film: Yes
- With channel connector: No.
- Mounting holes in the ground: Yes
- Mounting type of upper parts: Inside
- With cable clip: No.
- Protection class (IP) IP30
- Impact strength: IK07
- Operating temperature -5..60°C
- Product type
Outside corner
- Component
Outside corner
- Type
Lower section
- Content
1 pc(s)
- Factory colour
Silver
- Dim
(W x D) 170.00 mm x 70.00 mm
- Width
170.00 mm
- Depth
70.00 mm
IP30
- Material (details)
Aluminium
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3162496 Rehau 6133273 Outside corner Outside corner (W x D) 170.00 mm x 70.00 mm 1 pc(s) Silver
Description

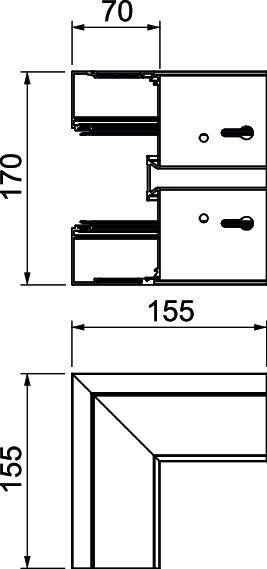

Outer corner as a molded part for changing the direction of the device mounting channel Signa Style.
This text is machine translated.
This text is machine translated.
