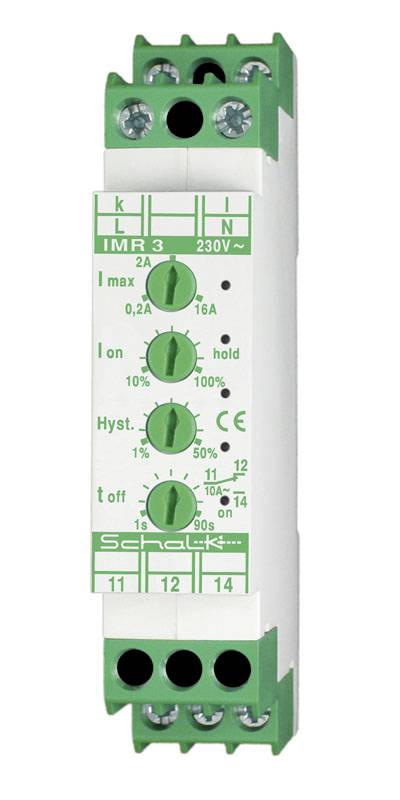

Relay 207 - 253 V 1 change-over Schalk IMR 3 1 pc(s)
Product type
Relay
Functions
Under- and overcurrent
Max. operating voltage
253 V
Contact type
1 change-over
Type
IMR 3
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Design of electrical connection: Screw connection
- With removable terminals: Yes
- Voltage type of supply voltage: AC
- Supply voltage AC 50 Hz: 207..253 V
- Supply voltage AC 60 Hz: 207..253 V
- Current measurement range 0.02..16 A.
- 1-phase undercurrent possible: Yes
- 3-phase undercurrent possible: No.
- 1-phase overcurrent possible: Yes
- 3-phase overcurrent possible: No.
- 1-phase window possible: No.
- 3-phase window possible: No.
- Contains function DC undercurrent: No.
- Contains function DC current over current: No.
- DC window function: No.
- Min Adjustable fall-back delay time:1 s
- Max. Permissible OFF-delay time: 90 s
- Number of contacts as changer: 1
- Width: 18 mm
- Height: 88 mm
- Depth: 58 mm
- Product type
Relay
- Type
IMR 3
- Reading range (min.)
0.02 A
- Functions
Under- and overcurrent
- Min. operating voltage
207 V
- Max. operating voltage
253 V
- Operating voltage
207 - 253 V
- Amperage adjustment range (min.)
0.02 A
- Amperage adjustment range (max.)
16 A
- Adjustment range (amperage)
0.02 - 16 A
- Contact type
1 change-over
1 W
- Width
18 mm
- Height
88 mm
- Depth
58 mm
- Dim
(W x H x D) 18 x 88 x 58 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3795744 Relay 207 - 253 V 1 change-over Schalk IMR 3 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3795744 Relay 207 - 253 V 1 change-over Schalk IMR 3 1 pc(s)
Description
The IMR 3 is used when consumers are to be switched on or off depending on a defined alternating current, such as automatic switching on of an exhaust system in wood processing operations. Dimensions: 18x55mm, I-range - 20mA-16A, 230V AC - 1W 16A
