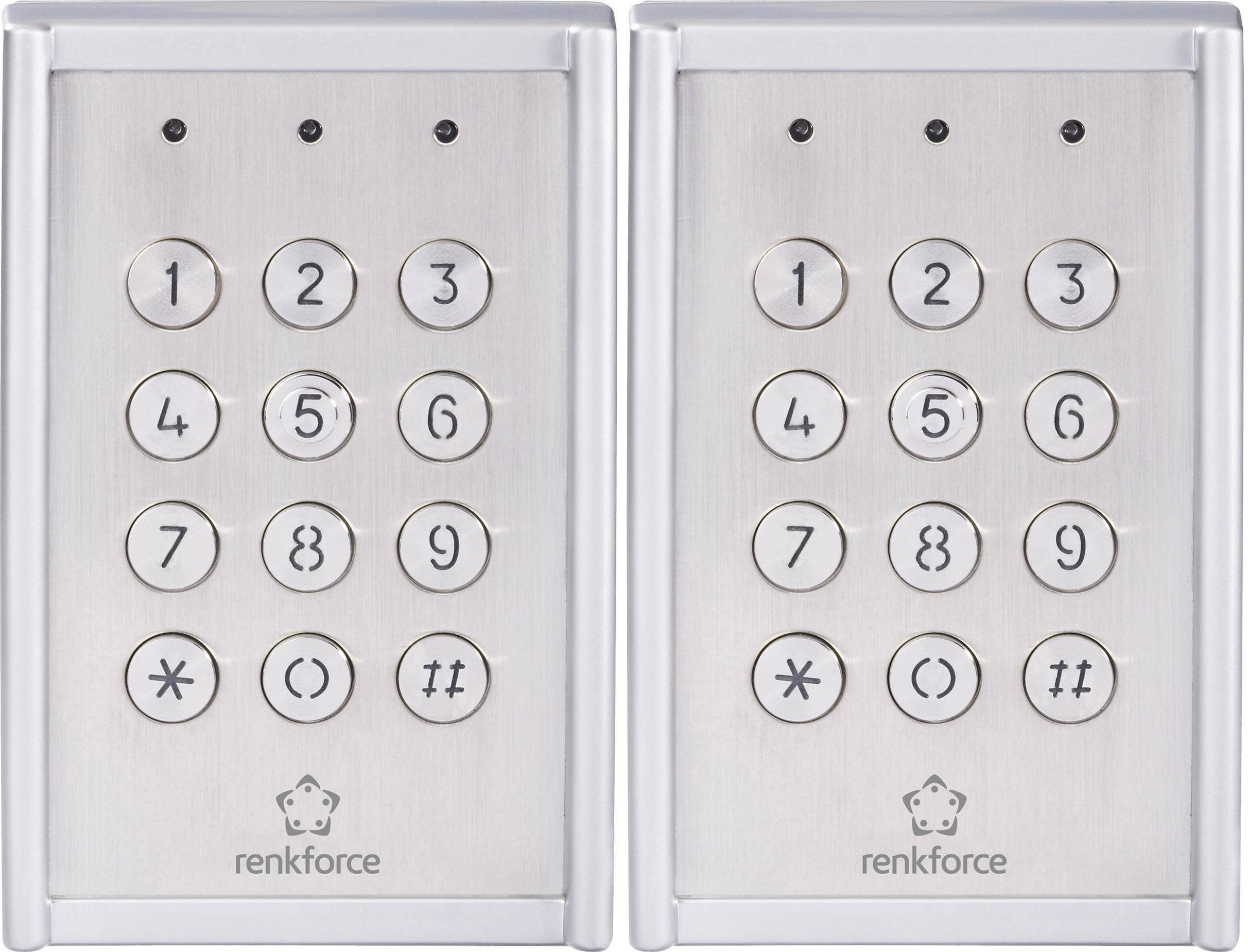

Renkforce RF-3422560 Code lock Surface-mount IP65 + backlit keypad
EAN:
Part number:
Item no:
Highlights & Details
Set of 2 weather proof code lock IP65
- Alarm output
- Weatherproof zinc casing
- Backlit keypad
Technical specifications
- Operating temperature: -20 - +50°.
- Product type
Code lock
- Mounting type
Surface-mount
- Connections
Alarm output · Door opener
- Triggered by
Numerical code
- LEDs
3
- Contact load capacity
NO: Max. 20 A / 14 V / DC · NC: Max. 12 A / 14 V / DC
IP65
- Dim
(W x H x D) 80 x 120 x 35.5 mm
- Features
+ backlit keypad
- Width
80 mm
- Height
120 mm
- Depth
35.5 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1711280 Renkforce RF-3422560 Code lock Surface-mount IP65 + backlit keypad
Conformity certificate
Conformity certificate 1711280 Renkforce RF-3422560 Code lock Surface-mount IP65 + backlit keypad
Description
Modern Code Lock with modern design.
The Renkforce surface code lock not only looks good, but it is also extremely helpful:
It enables you to open gates and entrance doors with a programmable code. You no longer need in the future to the house keys to think, if you go jogging or leave the house. The kramen out of the key from the confusing hand bag, or if you have to bear both hands full, belong to the past! And so that you also in darkness, the right push buttons, the input keyboard also has a handy background lighting. For you, this means: no blind umhergestochere with your house keys more!
The code lock is a high-quality, waterproof zinc housing (IP65 degree of protection). Thus, it can easily be used indoors as well as outdoors. Versatile programming options and connections make this lock is ideal for various application areas. There can be up to 99 different user codes can be stored.
For your safety is ensured, because the protection against manipulation, the lock has a sabotage contact. If there is an unauthorized person on the housing of the castle, this automatically create makes the alarm output, for example, can be connected to the a siren. Burglars and criminals can be effective in the flight be beaten. Three at the top of the LEDs indicate the current status of the lock, depending on the setting, which especially when programming is very useful.
This text is machine translated.
The Renkforce surface code lock not only looks good, but it is also extremely helpful:
It enables you to open gates and entrance doors with a programmable code. You no longer need in the future to the house keys to think, if you go jogging or leave the house. The kramen out of the key from the confusing hand bag, or if you have to bear both hands full, belong to the past! And so that you also in darkness, the right push buttons, the input keyboard also has a handy background lighting. For you, this means: no blind umhergestochere with your house keys more!
The code lock is a high-quality, waterproof zinc housing (IP65 degree of protection). Thus, it can easily be used indoors as well as outdoors. Versatile programming options and connections make this lock is ideal for various application areas. There can be up to 99 different user codes can be stored.
For your safety is ensured, because the protection against manipulation, the lock has a sabotage contact. If there is an unauthorized person on the housing of the castle, this automatically create makes the alarm output, for example, can be connected to the a siren. Burglars and criminals can be effective in the flight be beaten. Three at the top of the LEDs indicate the current status of the lock, depending on the setting, which especially when programming is very useful.
This text is machine translated.
Features
- Alarm output
- Sabotage contact
- Input for door monitoring
- Door opener relay
- Switching relay.
- Automatic key lock for 30 seconds after 5-fold the wrong input
- Up to 99 user codes
- Bypass-Mode
Scope of delivery
- 2 x code lock
- 2x mounting material
- User manual.
