Name: Renkforce RF-4737396 19 inch Server rack cabinet slider 1 U Retractable Suitable for (cabinet depths): > 300 mm Black
Brand: Renkforce
SKU: 2368698
Availability: SoldOut

A black 19-inch 1U rackmount cable management panel with multiple cable openings for neat routing and organisation of cables.

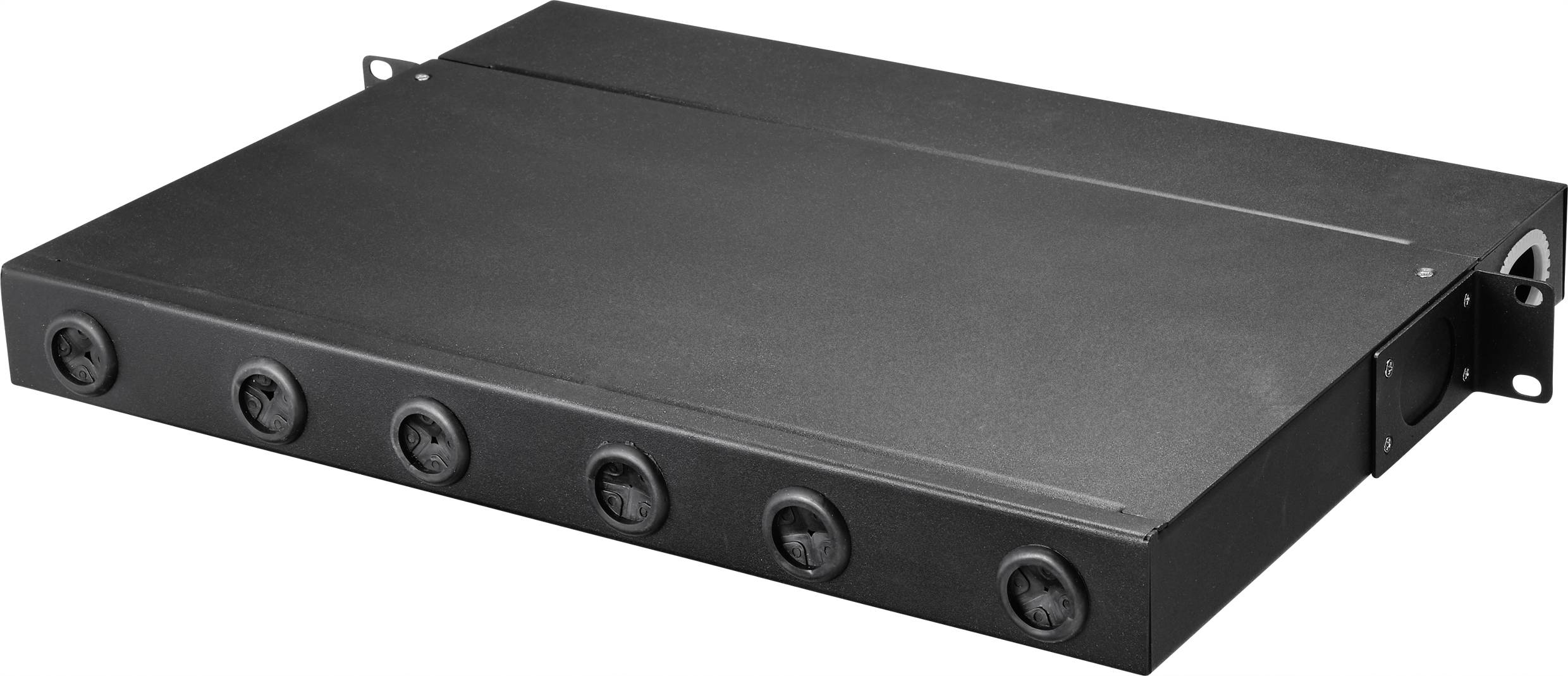

Black 19-inch rack enclosure with six cable entry points at the front, designed for organising and securing cables in IT racks.

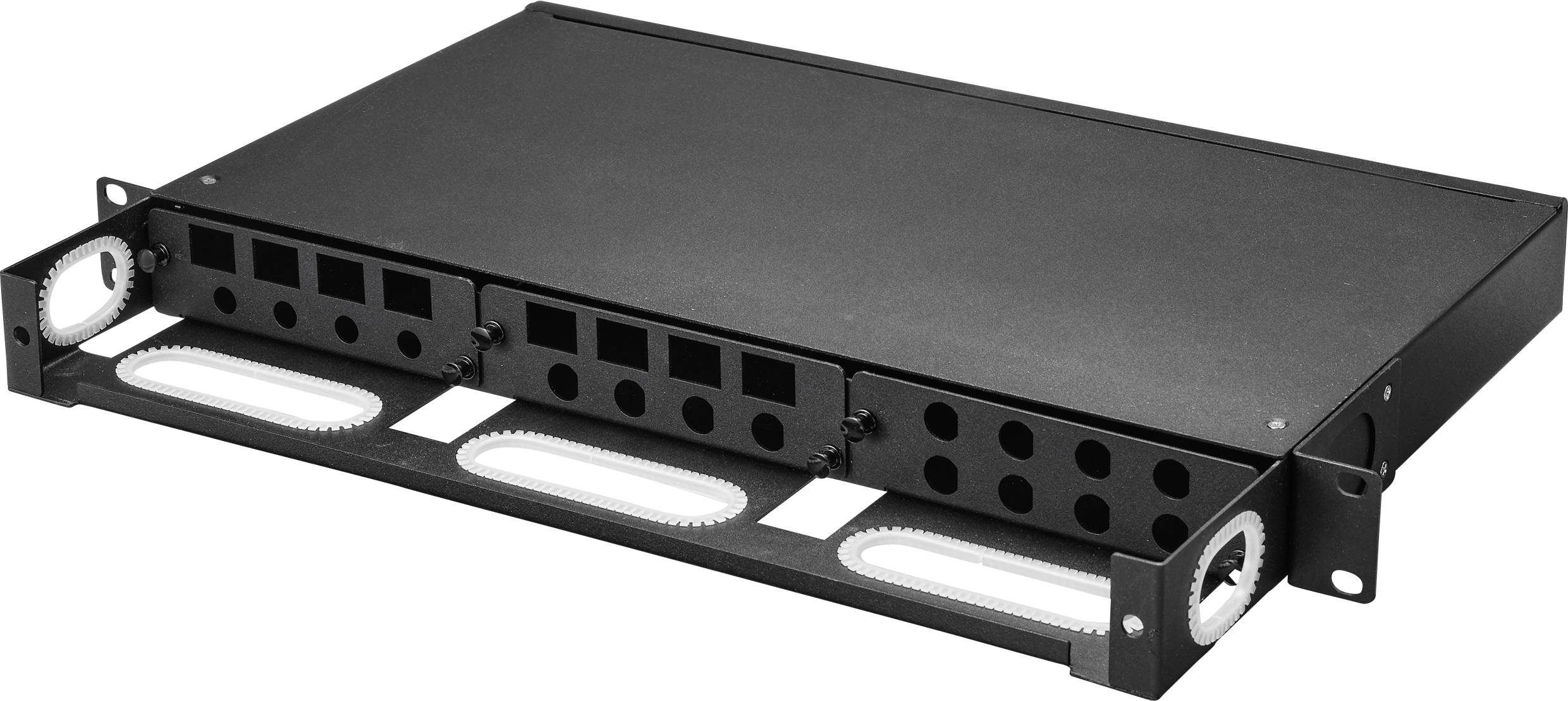

Black 1U rack enclosure for network or server hardware, with various ports and cable management openings.

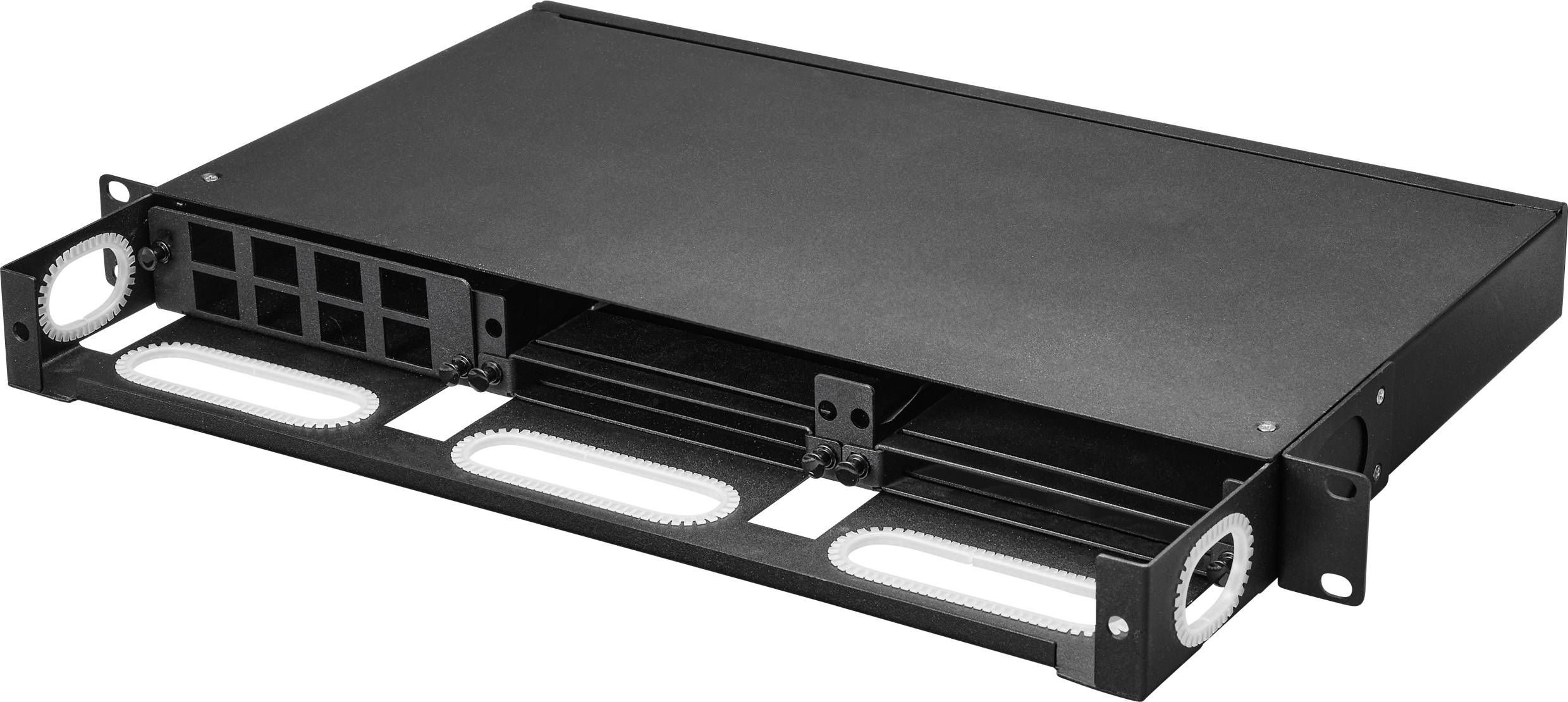

A black, rectangular 19-inch rack-mount fibre optic distributor with multiple slots for housing cables and connections in a technical environment.

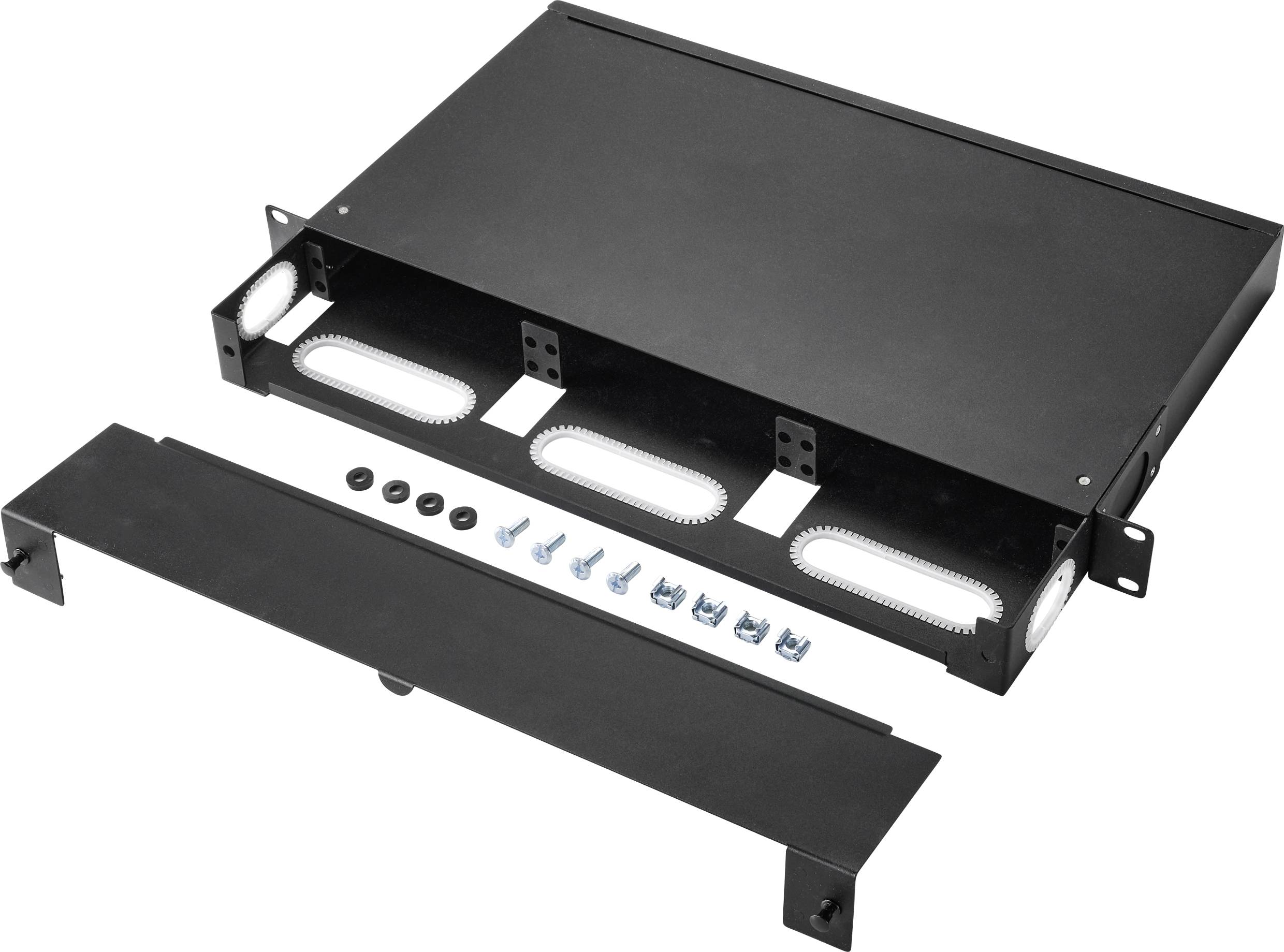

A black, metal server or network rack drawer with the lid removed. Screws and cable glands are prepared.

1/5

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 21.99 / piece)

€ 21.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Renkforce Modular patch panel, Fiber Optic/MPO or MTP and RJ45/ Coax ,1U, 19"

Innovative, robust, 1U sliding patch panel with plexi glass front door
Supports up to 6 cassette assemblies
Highly-flexible design for fiber optic, copper RJ45 networking and coax networking
High density application through MTP and super slim RJ45 keystones
Diverse cable management for right/left/bottom sides
Glass cover for dust protection

Technical specifications

Product type: Server rack cabinet slider

Features: Retractable

Suitable for server rack cabinet (inch): 19 inch

Rack unit: 1 U

Suitable for (cabinet depths): > 300 mm

Dim: (L x W x H) 311.3 x 45 x 482.5 mm

Content: 1 pc(s)

Factory colour: Black

Width: 45 mm

Height: 482.5 mm

Length: 311.3 mm

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2368698 Renkforce RF-4737396 19 inch Server rack cabinet slider 1 U Retractable Suitable for (cabinet depths): > 300 mm Black

Description

Innovative, robust 1 U sliding patch panel with Plexiglas front door

This text is machine translated.

Features

Cable management on front and side
Transparent window
Cassettes are installed from front to back - no tools are required for installation
Combination of fiber optic, twisted pair and coaxial cassettes in the same panel for maximum efficiency
For 6*12 LC duplex connectors with MPO/MTP® cassettes up to 144 fibers
For 6*12 LC duplex connectors with breakout and mini-breakout cables or pigtail set cassettes up to 144 fibers
For 3*8 RJ45 cassettes with up to 24 RJ45 keystone jacks
For 3*8 coax cassettes with up to 24 SMA or 24 BNC coax connections

Scope of delivery

Modular patch panel
Screw nut set (M6*16+washer+M6 cage nut)

Description

Innovative, robust 1 U sliding patch panel with Plexiglas front door

This text is machine translated.

Features

Cable management on front and side
Transparent window
Cassettes are installed from front to back - no tools are required for installation
Combination of fiber optic, twisted pair and coaxial cassettes in the same panel for maximum efficiency
For 6*12 LC duplex connectors with MPO/MTP® cassettes up to 144 fibers
For 6*12 LC duplex connectors with breakout and mini-breakout cables or pigtail set cassettes up to 144 fibers
For 3*8 RJ45 cassettes with up to 24 RJ45 keystone jacks
For 3*8 coax cassettes with up to 24 SMA or 24 BNC coax connections

Scope of delivery

Modular patch panel
Screw nut set (M6*16+washer+M6 cage nut)
