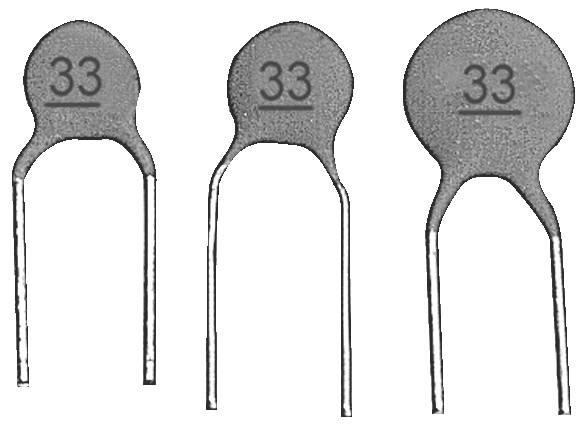

RICHWELL Ceramic capacitor Radial lead 0.01 nF 100 V DC 10 % (Ø) 5.1 mm 1 pc(s) Bulk
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 0.03308
50
9% = € 0.00
€ 0.03006
100
13% = € 0.00
€ 0.02886
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 0.03308 / piece)
€ 0.03
plus VAT.
Technical specifications
- ESD Packaging: No ESD
- Series: TCH2A
- Design_1: Radial
- Applications: For applications that require a high quality factor and high capacity stability
- Ceramic type: NPO
- Technology: Ceramic disc capacitor
- Mounting type_1: THT
- Delivery form_1: Loose
- Connections_1: 2-pin
- Properties_1: High quality factor Q, high capacity stability
- Defined linear dependence of capacity to temperature
- Very low capacitance dependence on the voltage and frequency
- Narrow tolerances
- Disk thickness 3.5 mm
- 5.1 mm disc diameter
- Wire diameter 0.6 mm.
- Pitch_1:5.08 mm
- Capacitance 0.01 nF
- Capacity_1: 0.01
- Capacitance unit: NF
- Capacity Tolerance 10%
- Nominal voltage DC 100 V
- Insulation resistance_1: 10 MOhm
- Packaging type
Bulk
- Nominal voltage
100 V DC
- Tolerance ±
10 %
- Material properties
NPO
- (Ø)
5.1 mm
- CS
5.08 mm
- Content
1 pc(s)
- Dim
(Ø) 5.1 mm
- Material
Ceramic
- Type
Radial lead
- Type
TCH2A100J05S505N
- Capacity (elec.)
0.01 nF
- RoHS-compliant
Yes
- Product type
Ceramic capacitor
Documents & Downloads
Datasheet
Datasheet 3523579 RICHWELL Ceramic capacitor Radial lead 0.01 nF 100 V DC 10 % (Ø) 5.1 mm 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3523579 RICHWELL Ceramic capacitor Radial lead 0.01 nF 100 V DC 10 % (Ø) 5.1 mm 1 pc(s) Bulk
Description
Ceramic Disk Capacitors RM5.08
