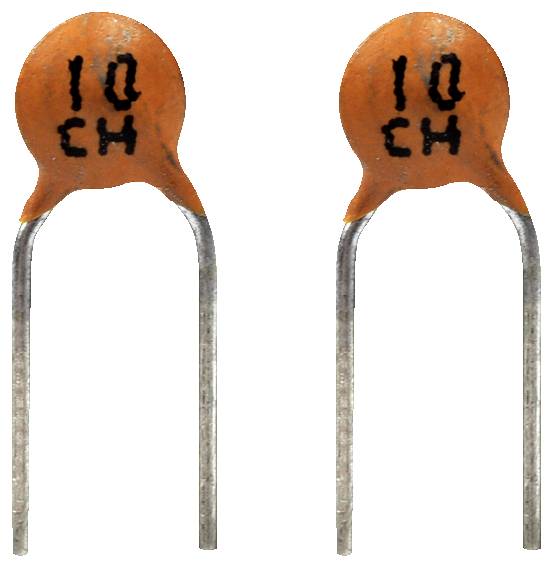

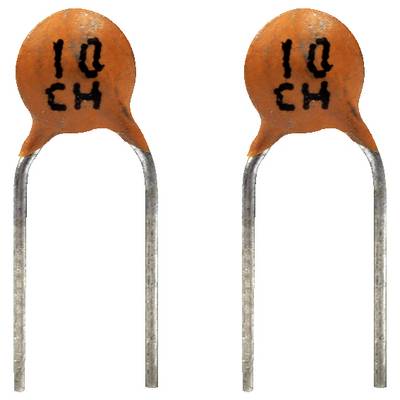

RICHWELL Ceramic capacitor Radial lead 1 nF 1000 V DC 10 % (Ø) 5.5 mm 1 pc(s) Bulk
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 0.05819
50
9% = € 0.01
€ 0.05289
100
13% = € 0.01
€ 0.05077
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 0.05819 / piece)
€ 0.06
plus VAT.
Technical specifications
- ESD Packaging: No ESD
- HB3A Series
- Design_1: Radial
- Applications: For applications in which the quality factor and the capacity stability are not primarily required; as bypass and decoupling capacitors
- Ceramic type Y5P
- Technology: Ceramic disc capacitor
- Mounting type_1: THT
- Delivery form_1: Loose
- Connections_1: 2-pin
- Characteristics_1: Quality factor Q and capacity stability lower than type 1
- Nonlinear dependence of capacity to temperature
- Increased tolerances in relation to type 1
- Disk thickness 3.5 mm
- 5.5 mm disc diameter
- Wire diameter 0.6 mm.
- Pitch_1:5.08 mm
- Capacitance 1 nF
- Capacity_1: 1
- Capacitance unit: NF
- Capacity Tolerance 10%
- Nominal voltage DC 1,000 V
- Insulation resistance_1: 10 MOhm
- Packaging type
Bulk
- Nominal voltage
1000 V DC
- Tolerance ±
10 %
- (Ø)
5.5 mm
- CS
5.08 mm
- Content
1 pc(s)
- Dim
(Ø) 5.5 mm
- Material
Ceramic
- Type
Radial lead
- Type
HB3A102K06L526N
- Capacity (elec.)
1 nF
- RoHS-compliant
Yes
- Product type
Ceramic capacitor
Documents & Downloads
Datasheet
Datasheet 3523568 RICHWELL Ceramic capacitor Radial lead 1 nF 1000 V DC 10 % (Ø) 5.5 mm 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3523568 RICHWELL Ceramic capacitor Radial lead 1 nF 1000 V DC 10 % (Ø) 5.5 mm 1 pc(s) Bulk
Description
RICHWell single-layer capacitor
