RICHWELL Ceramic capacitor Radial lead 100 nF 50 V DC 80 % (Ø) 6.5 mm 1 pc(s) Bulk
Packaging type
Bulk
Product type
Ceramic capacitor
Type
Radial lead
Nominal voltage
50 V DC
Capacity (elec.)
100 nF
Datasheet (PDF)
Part number:
Item no:
Number
Minimum order quantity: 10
Total (€ 0.09513 / piece)
€ 0.95
incl. VAT
14-day return policy included
Highlights & Details
Richwell Ker-Ko 100nF 50V RM5.08 -20/80% Y5V
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series SF1H
- Design_1: Radial
- Applications: For applications in which the quality factor and the capacity stability are not primarily required; as bypass and decoupling capacitors
- Ceramic type Y5V
- Technology: Ceramic disc capacitor
- Mounting type_1: THT
- Delivery form_1: Loose
- Connections_1: 2-pin
- Characteristics_1: Quality factor Q and capacity stability lower than type 1
- Nonlinear dependence of capacity to temperature
- Increased tolerances in relation to type 1
- Disk thickness 3.5 mm
- 6.5 mm disc diameter
- Wire diameter 0.6 mm.
- Pitch_1:5.08 mm
- Capacitance 100 nF
- Capacity_1: 100
- Capacitance unit: NF
- Capacity Tolerance 80%
- Nominal voltage DC 50 V
- Insulation resistance_1: 7.5 MOhm
- Packaging type
Bulk
- Product type
Ceramic capacitor
- Type
Radial lead
- Nominal voltage
50 V DC
- Capacity (elec.)
100 nF
- Tolerance ±
80 %
- Content
1 pc(s)
- (Ø)
6.5 mm
- CS
5.08 mm
- Dim
(Ø) 6.5 mm
- Dielectric
Y5V
- Material
Ceramic
- RoHS-compliant
Yes
- Type
SF1H104Z06S505N
Documents & Downloads
Datasheet
Datasheet 3523578 RICHWELL Ceramic capacitor Radial lead 100 nF 50 V DC 80 % (Ø) 6.5 mm 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3523578 RICHWELL Ceramic capacitor Radial lead 100 nF 50 V DC 80 % (Ø) 6.5 mm 1 pc(s) Bulk
Description

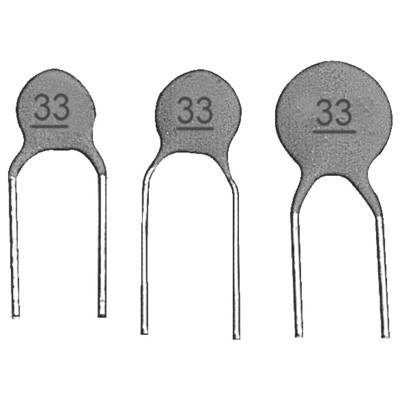

Ceramic Disk Capacitors RM5.08
This text is machine translated.
This text is machine translated.
