Technical specifications
- Height: 95 mm
- Design: Presence detectors
- Material: Plastic
- Colour: white
- Protection class (IP) IP20
- Surface protection: Untreated
- Impact strength: IK04
- Transparent: No.
- Design of surface: Matt
- Nominal voltage: 230 V
- Type of connection: Screw terminal
- Halogen-free: Yes
- Diameter 106 mm
- Voltage type AC
- Frequency: 50 Hz
- Suitable for C-Load: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for wall mounting: No.
- Suitable for ceiling mounting: Yes
- Material quality: Other
- Antibacterial treatment: No.
- RAL number (similar): 9010
- Response brightness adjustable: Yes
- Optimum mounting height 2.5 m.
- Max. Range to one side: 12 m.
- Max. Range: Front 8 m
- Capturing field Diameter on floor: 24 m.
- Staircase monitoring: Yes
- Max. duty cycle 60 min
- Constant light control: Yes
- HVAC activation: No.
- Network-compatible: No.
- Suitable for wireless transmission: No.
- Low-level detection/back field monitoring: Yes
- Response sensitivity adjustable: Yes
- Teach-Function for Response Brightness: Yes
- Dimming function with dimming element: No.
- Animal slope: No.
- Extension input: Yes
- With remote control: No.
- Sensor type: Passive infrared
- With DALI interface: No.
- Forced shutdown: Yes
- Bridge switch: No.
- Max. Presence area: 32 m²
- Remote control: Yes
- With signal unit: No.
- Switch-off delay 0 s.
- Response brightness 1 - .4000 Lux
- Temperature: -5..45°C
- Switch-on delay 0 s.
- Number of switching zones: 450
- Control current 4 mA
- Product type
Light/occupancy sensor
24 m
- Mounting type
Ceiling
- Operating voltage
230 V
- Similar RAL
9010
- Height
95 mm
- (Ø)
106 mm
- Dim
(Ø x H) 106 mm x 95 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3552223 RIDI 0209506 Ceiling Light/occupancy sensor
Description

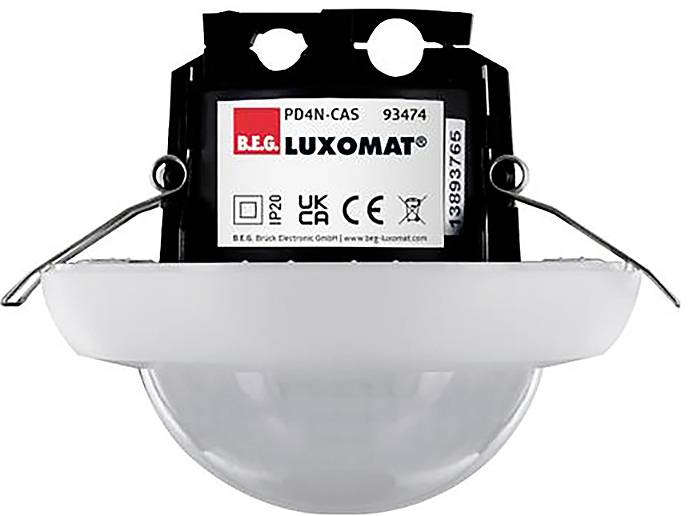

Bluetooth Low Energy / BLE light and presence sensor. Can be used as a presence sensor and/or as a light sensor in a Casambi network. Plastic, white, similar to RAL 9010. Suitable for ceiling mounting. Max. Mounting height 10 m. With light and motion detector. Detection range transverse Ø 24 m, detection field 452 m². Configurable via Casambi APP.
