Name: RIDI 0528290//420 0528290//420 LED ceiling light LED (monochrome) 62 W White
Brand: RIDI
SKU: 3140233

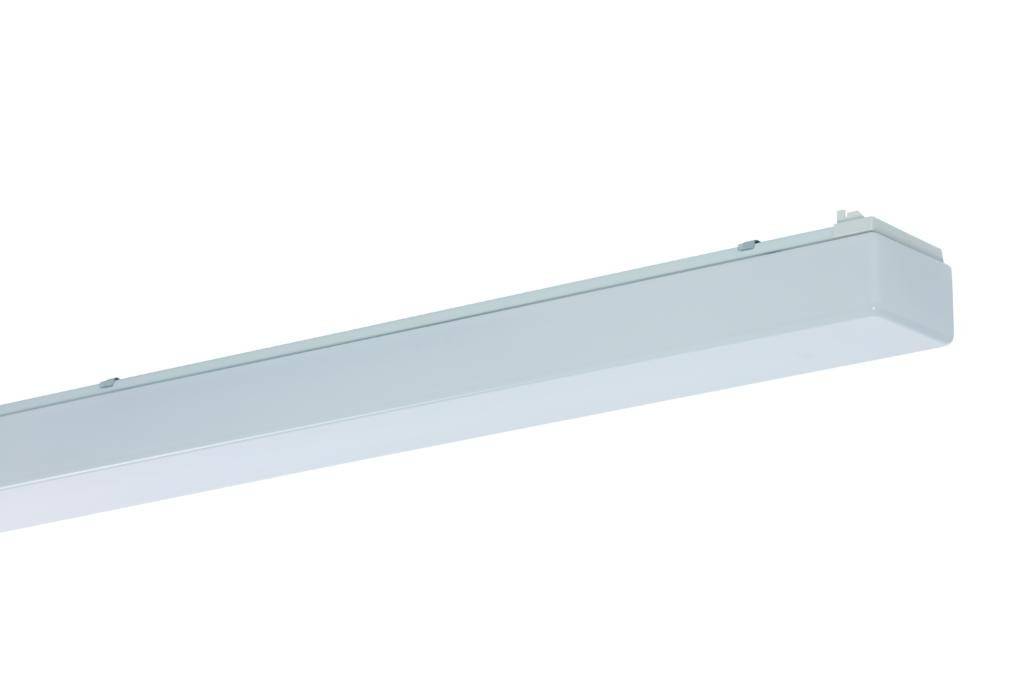

A simple, white LED light panel, rectangular in shape, for ceiling mounting. Suitable for office or residential lighting.

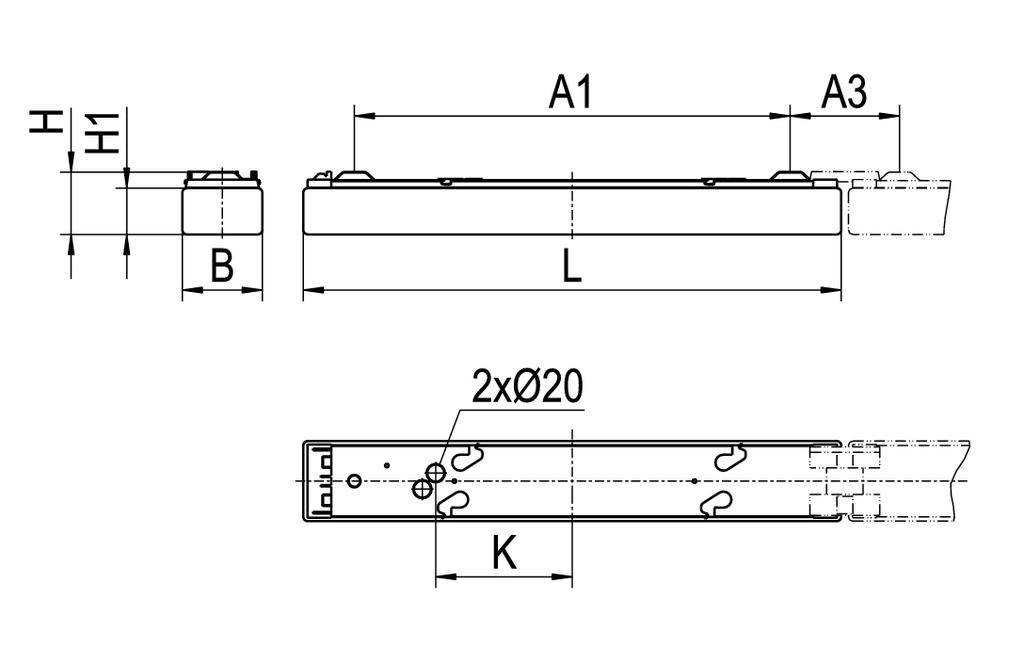

Technical drawing of a rectangular component with dimensional specifications: Width 'L', Height 'H', additional details 'A1', 'A3', 'B', 'K', note '2xØ20'.

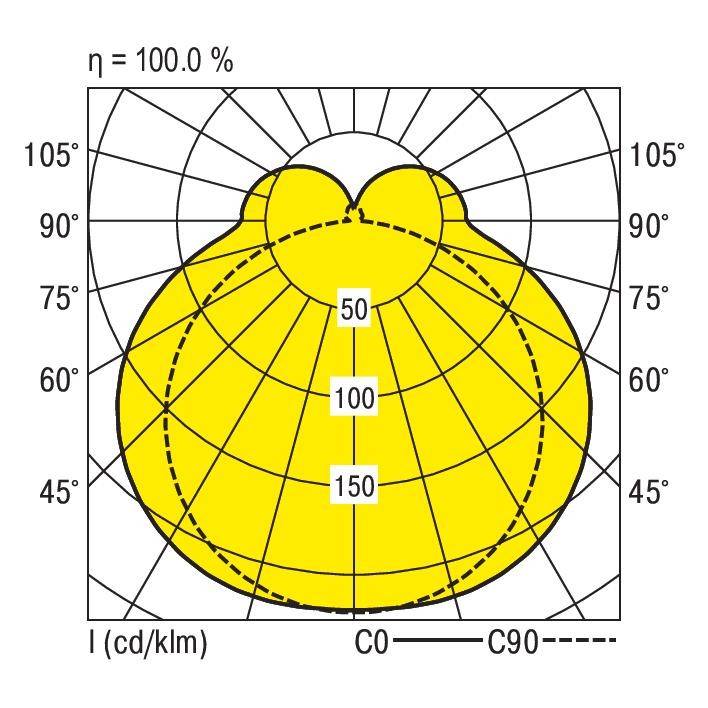

Polar diagram of a luminaire with an efficiency of 100%. Shows a symmetrical light distribution with intensities at 50, 100 and 150 cd/klm.

1/3

RIDI

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ridi-lights LED-tub lamp 840 LFN 15 #0528290//420

Power= 62 W
Total luminous flux= 7800 lm
Colour temperature= 4000 K
White

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
Suitable for wall mounting: Yes
Suitable for suspended engine mounting: No.
Suitable for ceiling mounting: Yes
Suitable for panel mounting: No.
Suitable for mounting on a panel: No.
Suitable for light band configuration: No.
Suitable for screen workstations according to EN 12464-1: No.
Suitable for the number of bulbs: 1
Material of housing: Steel
Surface protection housing: Powder-coated
Housing color: White
Cover material: Plastic opal
Design of grid: Without
Voltage type AC/DC
Nominal voltage 220..240 V
Nominal current: 220000 mA
Operating device: LED operating device current-controlled
With operating device: Yes
Removable operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
Dimming DALI-2: No.
DALI dimming: No.
Dimmer DMX: No
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Manufacturer-specific dimming: Yes
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Dimming depends on the operating device: Yes
Without dimming function: Yes
Light distribution: Symmetric
Color consistency (McAdam ellipse): SDCM3
Light emission: Direct
Max. Number of lights circuit breaker B16: 24
Max. Number of lamps line circuit breakers C16: 40
Protection class (IP): IP50
Protection class: I
Lamp with limited surface temperature "D-sign": Yes
Suitable for emergency lighting: Yes
Integrated emergency power supply: No.
With motion detector: No.
With light sensor: No.
With air vents: No.
Filament testing according to IEC 60695-2-11:650°C - 30 s.
Max. System power 62 W
Light output 125 lm/W
Rated light current according to IEC 62722-2-1: 7800 lm
Light color: White
Colour temperature: 4000 K
Color Rendering Index CRI: 80-89
Width 90 mm
Height/depth 70 mm
Length: 1507 mm
Glare limiter (UGR): 23.9
Adjustable color temperature: No.
Luminous flux can be set: No
Adjustable radiation angle: No.
Operation via Bluetooth: No.
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
Bulb: LED not replaceable
With bulb: Yes

Dim: (L x W x H) 1507.00 x 90.00 x 70.00 mm

Operating voltage: 230 V

No. of bulbs: 1

Product type: LED ceiling light

Width: 90.00 mm

Bulb type: LED (monochrome)

Height: 70.00 mm

Length: 1507.00 mm

Rating per bulb: 62 W

Depth: 70 mm

: 62 W

Light features: Incl. ballast

Protection class: I

: IP50

Factory colour: White

Material: Steel

: n.rel.

Colour rendering index: 80-89

Colour: White

Light bulb included: Yes

: 4000 K

Colour temperature (max.): 4000 K

Colour temperature (min.): 4000 K

Colour temperature range: 4000 - 4000 K

Total luminous flux: 7800 lm

: 7800 lm

Rated luminous flux: 7800 lm

Nominal voltage: 230 V

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3140233 RIDI 0528290//420 0528290//420 LED ceiling light LED (monochrome) 62 W White

User & Safety Instructions

User & Safety Instructions 3140233 RIDI 0528290//420 0528290//420 LED ceiling light LED (monochrome) 62 W White

Description

Ceiling lamp LFN, extension, traffic white, similar to RAL 9016, xFlex, Light emission direct, extremely wide coated opal, length 1507 mm, width 90 mm, height 70 mm, protection class IP50, Rated light current 7800 lm, rated power 62 W, 125 lm/W, light color 840, reference value UGR 23
