RIDI 0627634AQ 0627634AQ LED pendant light LED (monochrome) Built-in LED 43 W Black
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Ridi-lights LED-hanging lamp 850 FEDGE2-PD #0627634AQ
- Power= 43 W Total luminous flux= 6100 lm Colour temperature= 5000 K White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Workplace training material - EN 12464-1: Yes
- Suitable for light band configuration: No.
- Suitable for the number of bulbs: 1
- Material of housing: Aluminium
- Black enclosure
- Cover material: Textured plastic
- Design of grid: Without
- Voltage type AC
- Nominal voltage 220..240 V
- Nominal current: 6100000 mA
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: No.
- Dimming DALI-2: No.
- Dimmer DMX: No
- Dimming programmable: No.
- Dimmer DSI: No.
- Dim. RF: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimming function: Yes
- Reflector: Without

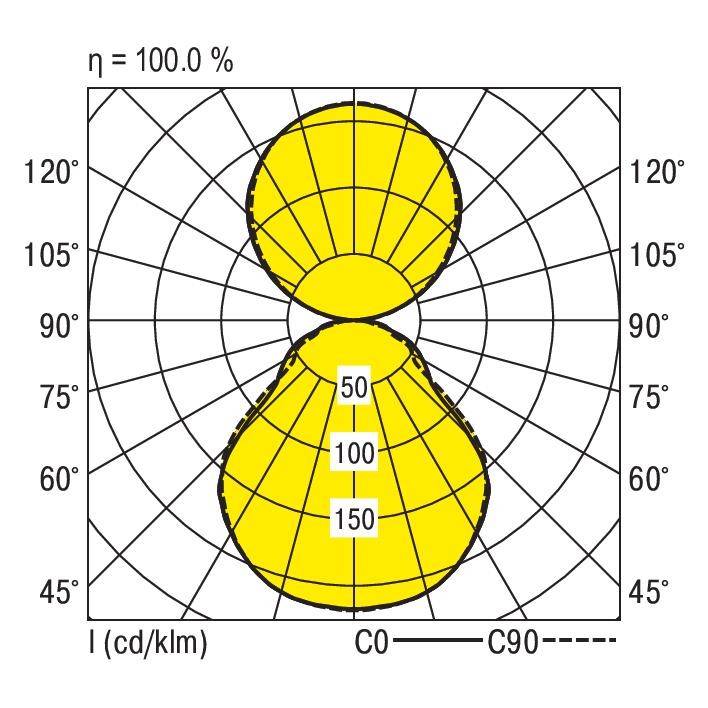

- Light distribution: Symmetric
- Color consistency (McAdam ellipse): SDCM3
- Light emission: Direct
- Direct/indirect parts separately adjustable: Yes
- Protection class (IP) IP20
- Impact strength: IK07
- Protection class: I
- Lamp with limited surface temperature ""D-sign"": No.
- Suitable for emergency lighting: Yes
- Integrated emergency power supply: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Max. System power 43 W
- Rated light current according to IEC 62722-2-1: 6100 lm
- Light color: White
- Light output 141 lm/W
- Colour temperature: 5000 K
- Color Rendering Index CRI: 80-89
- Glare limiter (UGR): 16.4
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.

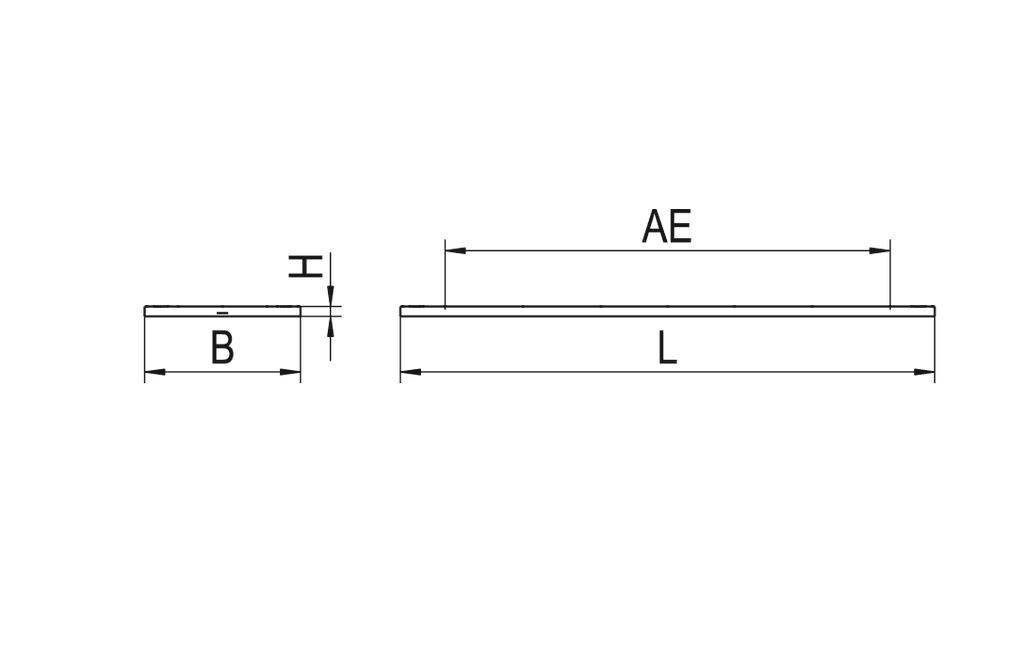

- Width 341 mm
- Height/depth 22 mm
- Length: 1201 mm
- With suspension: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Product type
LED pendant light
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
Built-in LED
- Rating per bulb
43 W
43 W
- Light features
Usable as a pendant light
- Protection class
I
IP20
- Factory colour
Black
- Material
Aluminium
- Dim
(L x W x H) 1201.00 x 341.00 x 22.00 mm
n.rel.
- Colour
White
- Light bulb included
Yes
5000 K
- Total luminous flux
6100 lm
6100 lm
- Width
341.00 mm
- Height
22.00 mm
- Length
1201.00 mm
- Depth
22 mm
- Rated luminous flux
6100 lm
- Colour rendering index
80-89
- Colour temperature (max.)
5000 K
- Colour temperature (min.)
5000 K
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3140864 RIDI 0627634AQ 0627634AQ LED pendant light LED (monochrome) Built-in LED 43 W Black
User & Safety Instructions
User & Safety Instructions 3140864 RIDI 0627634AQ 0627634AQ LED pendant light LED (monochrome) Built-in LED 43 W Black
Description
Pendant lamp FEDGE2, black, On/Off, light emission direct_indirect, cover extremely wide microprismatic, length 1201 mm, width 341 mm, height 22 mm, protection class IP20, IK07 impact strength, Rated light current 6100 lm, rated power 43 W, 141 lm/W, light color: 850, Reference value UGR 16
