RIDI 0627890//420 0627890//420 LED pendant light LED (monochrome) Built-in LED 53 W White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Ridi-lights LED-hanging lamp 840, ML, ws F-LINE #0627890//420
- Power= 53 W Total luminous flux= 8500 lm Colour temperature= 4000 K White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Workplace training material - EN 12464-1: Yes
- Suitable for light band configuration: Yes
- Suitable for the number of bulbs: 13
- Material of housing: Steel
- Housing color: White
- Voltage type AC/DC
- Nominal voltage 220..240 V
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: No.
- Dimming DALI-2: No.
- Dimmer DMX: No
- Dimming programmable: No.
- Dimmer DSI: No.
- Dim. RF: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Manufacturer-specific dimming: Yes
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimming function: Yes
- Light distribution: Symmetric
- Light emission: Direct
- Rated life L80/B10 at 25 °C: 82000 h
- Protection class (IP) IP20
- Impact strength: IK03
- Protection class: I
- Lamp with limited surface temperature "D-sign": No.
- Integrated emergency power supply: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Max. System power 53 W
- Rated light current according to IEC 62722-2-1: 8500 lm
- Light color: White
- Light output 160 lm/W
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Glare limiter (UGR): 16.4
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Width 200 mm
- Height/depth 33 mm
- Length: 1550 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Product type
LED pendant light
- Operating voltage
230 V
- No. of bulbs
13
- Bulb type
LED (monochrome)
Built-in LED
53 W
- Light features
Incl. ballast
- Protection class
I
IP20
- Factory colour
White
- Material
Steel
- Dim

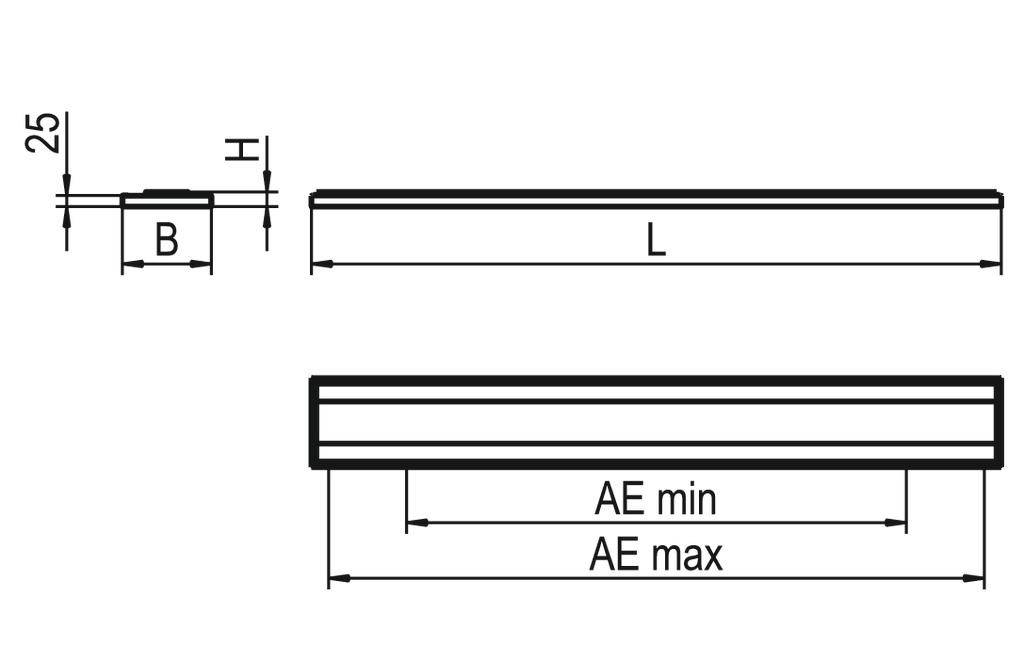

(L x W x H) 1550.00 x 200.00 x 33.00 mm
n.rel.
- Type
Planar
- Colour
White
- Light bulb included
Yes
4000 K
- Total luminous flux
8500 lm
8500 lm
- Width
200.00 mm
- Height
33.00 mm
- Length
1550.00 mm
- Depth
33 mm
- Rated luminous flux
8500 lm
- Colour rendering index
80-89
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3141155 RIDI 0627890//420 0627890//420 LED pendant light LED (monochrome) Built-in LED 53 W White
User & Safety Instructions
User & Safety Instructions 3141155 RIDI 0627890//420 0627890//420 LED pendant light LED (monochrome) Built-in LED 53 W White
Description
Pendant lamp F-LINE, traffic white, similar to RAL 9016, xFlex, light emission direct_indirect, Wide screen, length 1550 mm, width 200 mm, height 33 mm, protection class IP20, Shock resistance IK03, Rated light current 8500 lm, rated power 53 W, 160 lm/W, light color 840, Reference value UGR 16
