Name: RIDI 0637906 EL-AS1247DA #0637906 Ceiling light
Brand: RIDI
SKU: 3543683

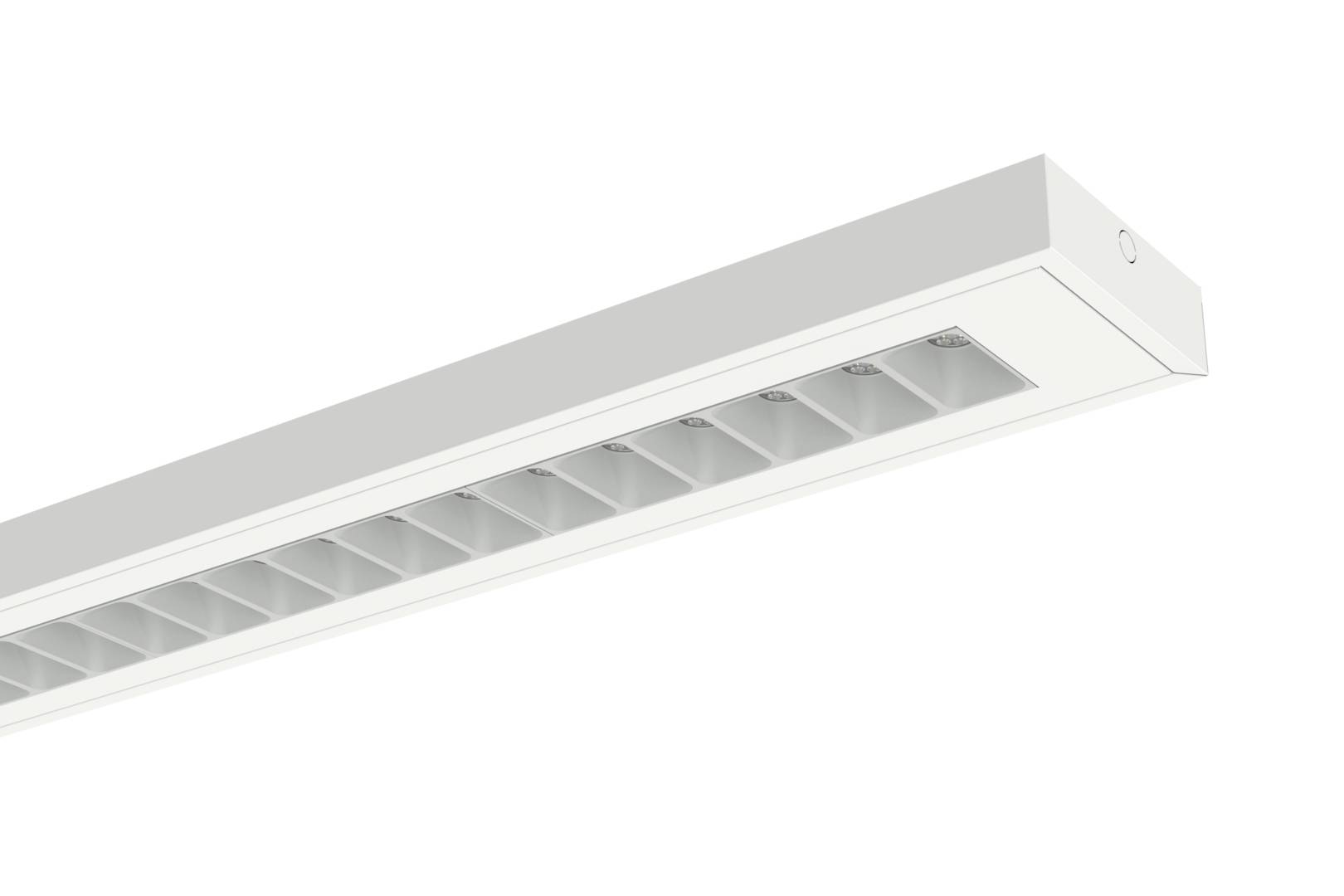

A long white linear ceiling light fixture with multiple recessed lamps, shown on a plain background.<br>

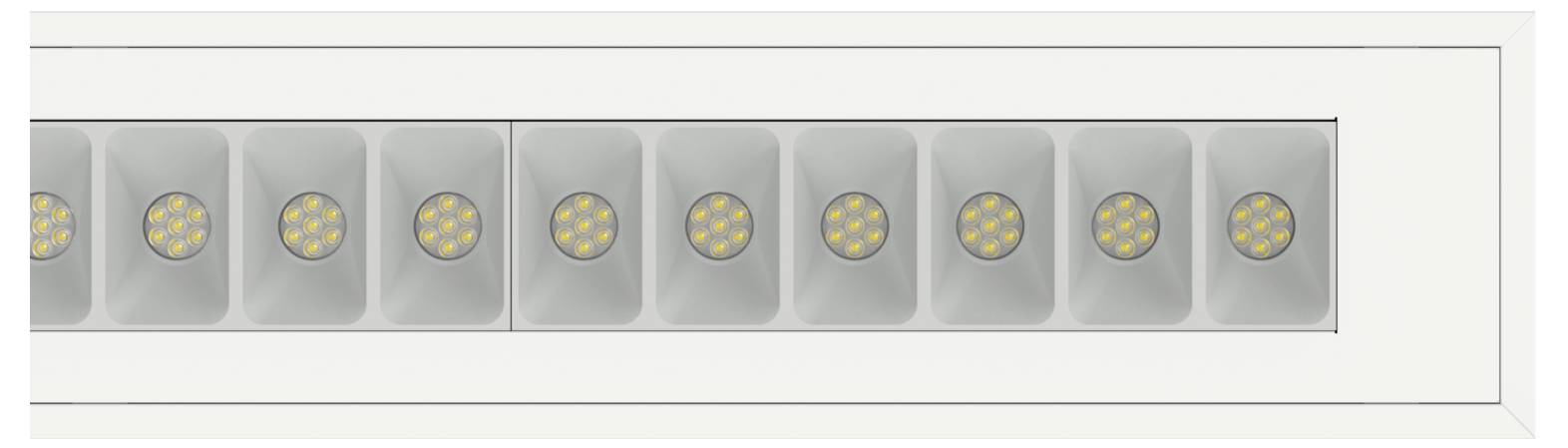

Row of ten gray rectangular LED light modules, each with a circular yellow-lit center, shown in a horizontal panel on a light background

Row of ten recessed circular yellow lights arranged in a horizontal strip inside a rectangular white panel.

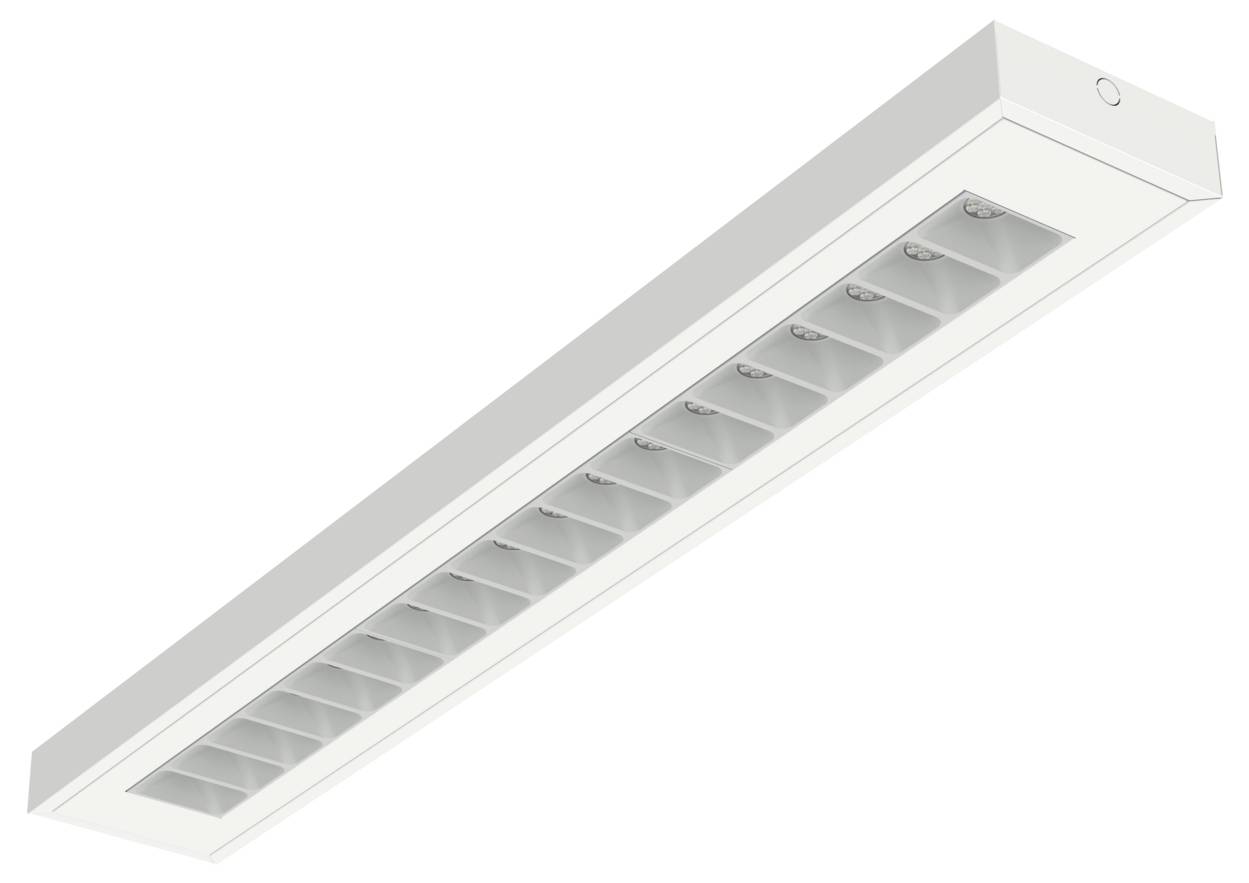

White rectangular fluorescent light fixture with reflective louvers, shown at an angle on a white background.

Long rectangular white ceiling light fixture with a louvered reflector, shown on a plain white background.

Abstract layout of white rectangular light fixtures arranged diagonally on a dark background, resembling a ceiling lighting design.

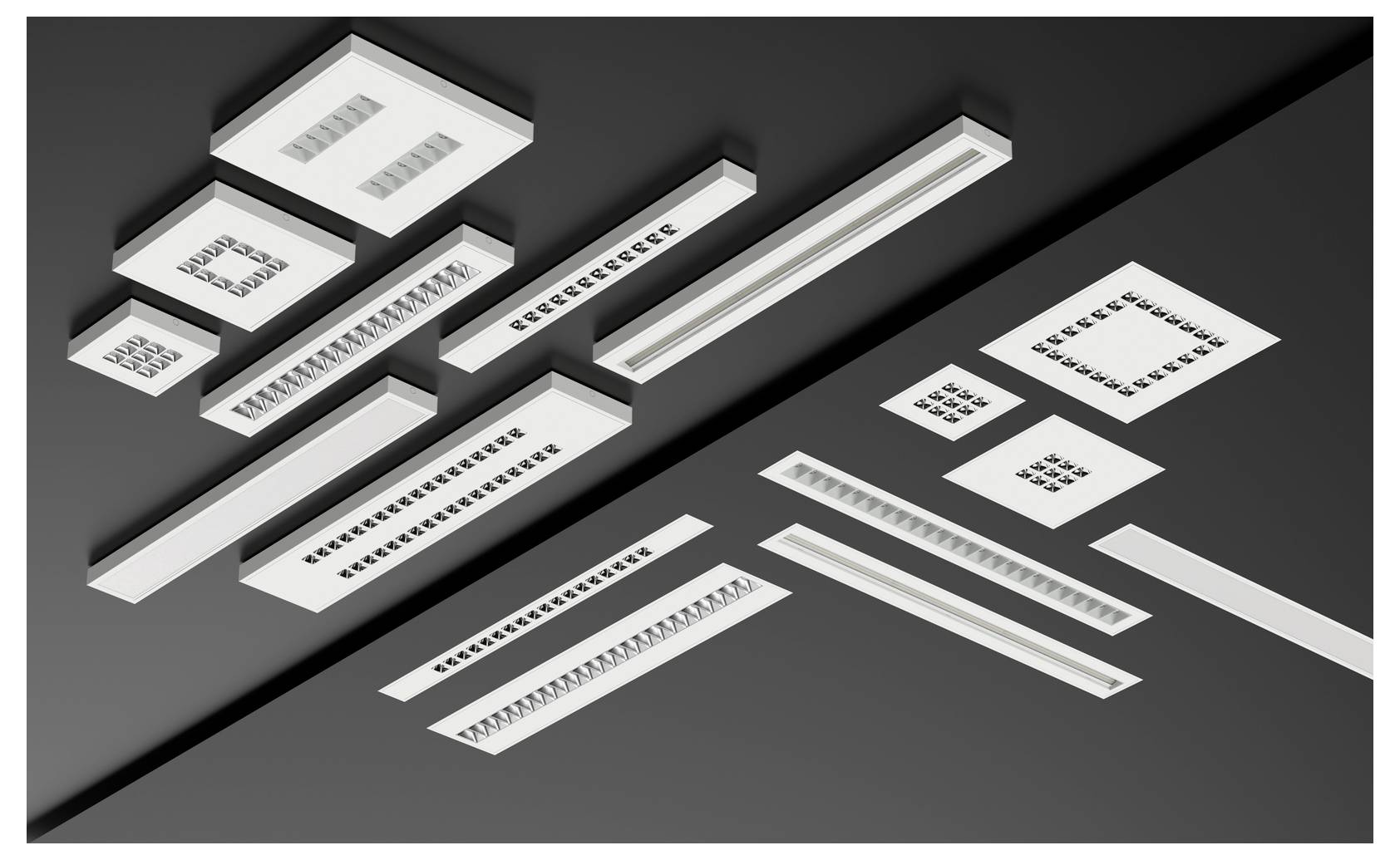

Assorted modern white rectangular light fixtures arranged diagonally on a dark ceiling, showing different lengths and recessed patterns.

1/7

RIDI

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ridi-lights LED-mounted light 840, DALI EL-AS1247DA #0637906

Technical specifications

Product type: Ceiling light

: n.rel.

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3543683 RIDI 0637906 EL-AS1247DA #0637906 Ceiling light

User & Safety Instructions

User & Safety Instructions 3543683 RIDI 0637906 EL-AS1247DA #0637906 Ceiling light

Description

Ceiling lamp of the EL product family. Light steering through lens, radiation characteristic symmetric, wide-beam, light emission direct. Light bulb integrated with LED-M, and can be exchanged by an expert. The lamp generates a rated luminous flux of 5570 lm in light color 840, luminous flux adjustable: Continuously. The high LED life allows a long use with constant illumination quality. High light quality with a tolerance of < 3 SDCM color spot. Housing made of steel, white traffic, similar to RAL 9016, protection class IP20
IP40 room side. Cover made from PMMA clear. Mounting: Ceiling mounting with enclosed accessories With electronic device DALI. Replacement by qualified personnel possible. Nom. Voltage: 220 - 240 V AC/DC 50 - 60 Hz.

This text is machine translated.
