Name: RIDI 0660323//676 ABRB #0660323//676 LED surface-mount light
Brand: RIDI
SKU: 3543462

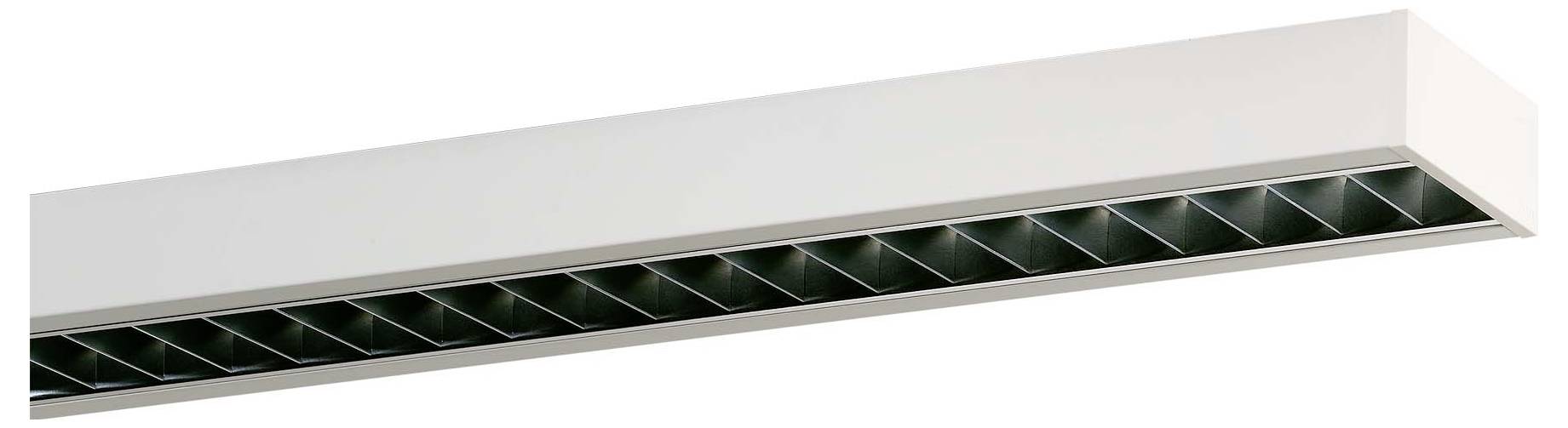

Rectangular fluorescent ceiling light fixture with grid pattern cover.

Image similar

RIDI

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ridi-lights LED-mounted light R1X115/30DA-SM-set ABRB #0660323//676

Technical specifications

Width 130 mm
Number of pins: 7
Protection class (IP) IP20
Protection class: I
Impact strength: IK03
Material of housing: Steel
Length: 1180 mm
Nominal voltage 220..240 V
Connection type: Plug-in terminal
Voltage type AC/DC
LED bulb, replaceable
Radiation angle: Extremely wide radiation >80°
Operating device: LED operating device current-controlled
Energy efficiency class of light source according to EU directive 2019/2015: Not required
Light color: White
Constant luminous flux regulation: Yes
Colour temperature: 4000 K
Color Rendering Index CRI: 80-89
Adjustable color temperature: No.
Luminous flux can be set continuously
Adjustable radiation angle: No.
Height/depth 60 mm
Type of wiring: Suitable for through-wiring
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
Suitable for mounting on the panel: Yes
Suitable for panel mounting: No.
Suitable for wall mounting: No.
Suitable for suspended engine mounting: No.
Suitable for ceiling mounting: Yes
With motion detector: No.
With light sensor: No.
With bulb: Yes
Suitable for the number of bulbs: 1
Housing color: White
With operating device: Yes
Removable operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
DALI-2 dimming: Yes
DALI dimming: Yes
Dimmer DMX: No
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: Yes
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming touch and dim: Yes
Zigbee dimming: No.
Dimming with push-button: No.
Without dimmer function: No.
Light distribution: Symmetric
Light emission: Direct
Suitable for lamp output 30 W
Max. System power 34 W
Rated light current according to IEC 62722-2-1: 4160 lm
Coverage of lights possible with heat insulation material: Yes
Suitable for light band configuration: Yes
Suitable for screen workstations according to EN 12464-1: No.
Surface protection housing: Powder-coated
Cover material: Other
Grid type: Matt
Light distributor: Without
Color consistency (McAdam ellipse): SDCM3
Rated ambient temperature according to IEC62722-2-1: -20..25°C.
Suitable for emergency lighting: Yes
Integrated emergency power supply: No.
With air vents: No.
Light output 122 lm/W
Conductor cross-section: 2.5 mm²
Compatible with Casambi: No.
Version: Other
Filament testing according to IEC 60695-2-11:650°C - 30 s.
Photobiological safety according to EN 62471: RG1
Max. Number of lights circuit breaker B16: 20
Max. Number of lamps line circuit breakers C16: 30
Glare limiter (UGR): 21
Lamp with limited surface temperature ""D-sign"": No.

Product type: LED surface-mount light

: n.rel.

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3543462 RIDI 0660323//676 ABRB #0660323//676 LED surface-mount light

Description

Ceiling lamp of the ABRB product family. Light steering through grid, radiation characteristic symmetric, extremely broad radiation, light emission direct. In-built bulb R-TUBE, can be exchanged by end user. The lamp generates a rated luminous flux of 4160 lm in light color 840, luminous flux adjustable: Continuously. The high LED life allows a long use with constant illumination quality. High light quality with a tolerance of < 3 SDCM color spot. Housing made of steel, white traffic, similar to RAL 9016, protection class IP20. Single and light band mounting via simple tool-free quick mounting system for substantial reduction of assembly time. Mounting clips provide a distance of 7.5 mm from ceiling to light. Electrical connection from outside on the top of the lamp. Back on the top of the lamp for accepting the connection cable and passage wiring. Light band mounting with light connector ABRBV made of UV resistant plastic, to be ordered separately (see accessories). With electronic device DALI-2. Replacement by qualified personnel possible. Nom. Voltage: 220 - 240 V AC/DC 50 - 60 Hz.
