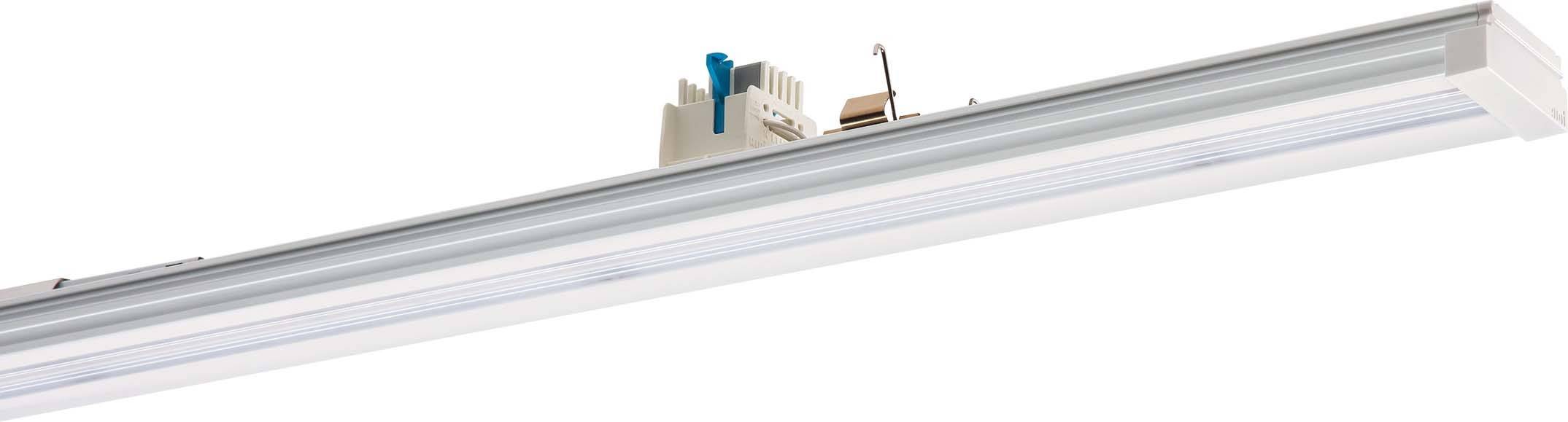

Name: RIDI 1551039SI 1551039SI LED device mount Bulb cannot be changed 17 W LED (monochrome) Silver 1 pc(s)
Brand: RIDI
SKU: 3135539

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
Suitable for the number of bulbs: 1
Bulb: LED not replaceable
With bulb: Yes
Material of housing: Aluminium
Housing color: Silver
Voltage type AC
Nominal voltage 220..240 V
Nominal current: 2620000 mA
Operating device: LED operating device current-controlled
With operating device: Yes
Removable operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
DALI dimming: No.
Dimmer DMX: No
Dimmer manufacturer-specific: No.
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Without dimming function: Yes
Reflector: Without
Light distribution: Symmetric
Light emission: Direct
Color consistency (McAdam ellipse): SDCM3
Rated life L80/B10 at 25 °C: 65000 h
Protection class (IP) IP54
Protection class: I
Suitable for emergency light: No.
Integrated emergency power supply: No.
Suitable for lamp output 17 W
Max. System power 18 W
Rated light current according to IEC 62722-2-1: 2620 lm
Light output 145 lm/W
Light color: White
Colour temperature: 5000 K
Color Rendering Index CRI: 80-89
Adjustable radiation angle: No.
Adjustable color temperature: No.
Luminous flux can be set: No
Width 67 mm
Height/depth 66 mm
Length: 500 mm

Product type: LED device mount

Operating voltage: 230 V

No. of bulbs: 1

: Bulb cannot be changed

Bulb type: LED (monochrome)

Rating per bulb: 17 W

: 17 W

: 5000 K

Colour: White

: 2620 lm

Total luminous flux: 2620 lm

Light features: Incl. ballast

: IP54

Protection class: I

Factory colour: Silver

Material: Aluminium

Dim: (L x W x H) 500.00 x 67.00 x 66.00 mm

: n.rel.

Type: Rectangular

Colour rendering index: 80-89

Colour temperature (max.): 5000 K

Colour temperature (min.): 5000 K

Colour temperature range: 5000 - 5000 K

Width: 67.00 mm

Height: 66.00 mm

Length: 500.00 mm

Rated luminous flux: 2620 lm

Light bulb included: Yes

Nominal voltage: 230 V

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3135539 RIDI 1551039SI 1551039SI LED device mount Bulb cannot be changed 17 W LED (monochrome) Silver 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3135539 RIDI 1551039SI 1551039SI LED device mount Bulb cannot be changed 17 W LED (monochrome) Silver 1 pc(s)

Description

LED device carrier, white (...WS-...), silver (...SI-...) Or black (...SW-...) coated. RIDI-LED linear modules fitted with mid-power LEDs for highest efficiency. The boards are pressed onto the mounting profile of the device for optimal heat dissipation. Solder joints of the LED module tested according to the strictest quality standard in terms of lounge formation and stability during vibration and deformation. No heat coupling between LED modules and converter. Linear optics with wide beam light distribution made of clear, UV-resistant PMMA, integrated flush into the device carrier. End caps made from thermoplastic for protection class upto IP54. Width of the device carrier is identical to that of the mounting rail. Spring steel clip for mounting the device carrier in the VLTM mounting rail. Together with the support rails VLTM for the production of modular and variable light bands with protection type IP20 and IP54. The device supports can be mounted anywhere in the mounting rail. Electronic adapter for flexible tapping of the current conduction in the mounting rail with automatically contacted protective conductor. Phase selection through sliding contact. Colour and optical coding for easy mounting. Mechanical coding to prevent incorrect mounting (anti-twist protection). If the device supports are placed variably and the operating unit is connected to the mounting rail connector VLTV ...-600, assembly is only possible. Material equipment carrier: Aluminum profile, extruded LED device carrier with color coding blue for mounting in VLTM-5, VLTM-7 or VLTM-11.

This text is machine translated.
