Name: RIDI 1551213SI 1551213SI LED device mount 58 W LED (monochrome) Silver 1 pc(s)
Brand: RIDI
SKU: 3142045

'White LED light fitting with electrical components visible on the top surface; suitable for ceiling mounting in interior spaces.'

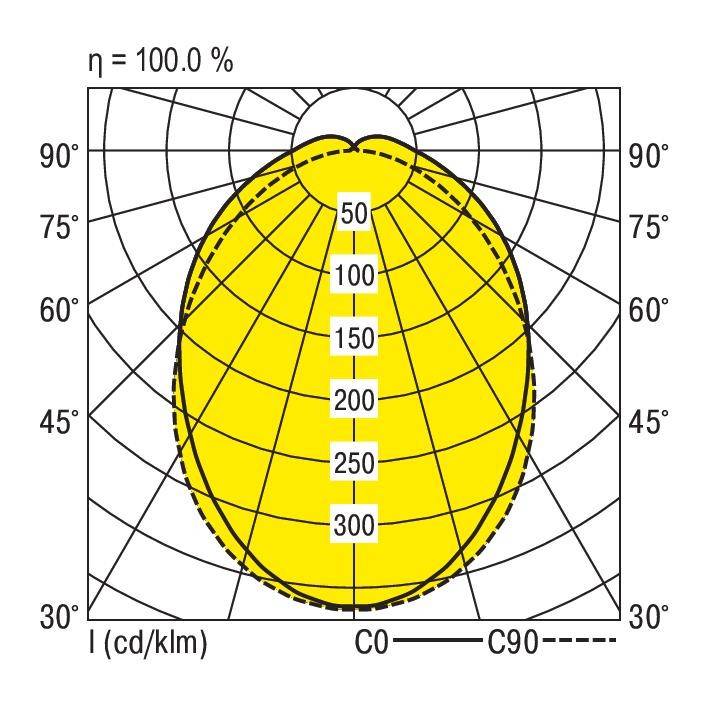

Polar diagram shows the light distribution of a luminaire. Maximum value of 300 cd/klm on the 0–180° axis. Efficiency is 100%.

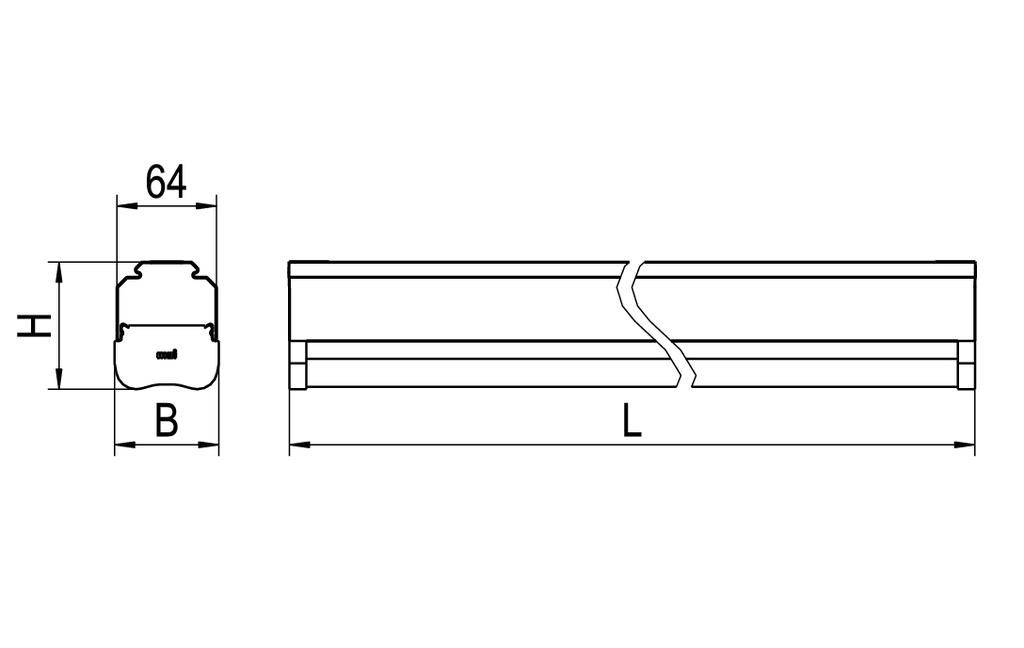

Technical drawing of a rectangular object with length designation L. Side view shows 64 mm width; height and depth not shown.

1/3

RIDI

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
Suitable for the number of bulbs: 1
Bulb: LED not replaceable
With bulb: Yes
Material of housing: Aluminium
Housing color: Silver
Voltage type AC
Nominal voltage 220..240 V
Nominal current: 10000 mA
Operating device: LED operating device current-controlled
With operating device: Yes
Removable operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
DALI dimming: No.
Dimmer DMX: No
Manufacturer-specific dimming: Yes
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Without dimming function: Yes
Light distribution: Symmetric
Light emission: Direct
Color consistency (McAdam ellipse): SDCM3
Rated life L80/B10 at 25 °C: 70000 h
Protection class (IP) IP40
Protection class: I
Filament testing according to IEC 60695-2-11:650°C - 30 s.
Suitable for emergency light: No.
Integrated emergency power supply: No.
Max. System power 58 W
Rated light current according to IEC 62722-2-1: 8000 lm
Light output 138 lm/W
Light color: White
Colour temperature: 4000 K
Color Rendering Index CRI: 80-89
Adjustable radiation angle: No.
Adjustable color temperature: No.
Luminous flux can be set: No
Width 67 mm
Height/depth 82 mm
Length: 1500 mm

Product type: LED device mount

Operating voltage: 230 V

No. of bulbs: 1

Bulb type: LED (monochrome)

Rating per bulb: 58 W

: 58 W

: 4000 K

Colour: White

: 8000 lm

Total luminous flux: 8000 lm

Light features: Incl. ballast

Test mark: HACCP zertifiziert

: IP40

Protection class: I

Factory colour: Silver

Material: Aluminium

Dim: (L x W x H) 1500.00 x 67.00 x 82.00 mm

: n.rel.

Colour rendering index: 80-89

Colour temperature (max.): 4000 K

Colour temperature (min.): 4000 K

Colour temperature range: 4000 - 4000 K

Width: 67.00 mm

Height: 82.00 mm

Length: 1500.00 mm

Rated luminous flux: 8000 lm

Light bulb included: Yes

Nominal voltage: 230 V

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3142045 RIDI 1551213SI 1551213SI LED device mount 58 W LED (monochrome) Silver 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3142045 RIDI 1551213SI 1551213SI LED device mount 58 W LED (monochrome) Silver 1 pc(s)

Description

VLGFP equipment carrier, 1500 mm, suitable for LINE VLTM mounting rail, 5-pin adapter, silver, similar to RAL 9006, xFlex, Direct light output, extremely wide beam optical cover, IP40 protection, rated light current 8000 lm, rated power 58 W, 137 lm/W, Light color 840, HACCP certified

This text is machine translated.
